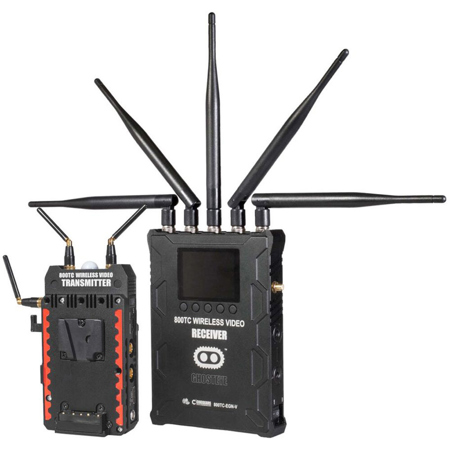

Cinegears Ghost-Eye 800T.Code Encrypted Wireless HDMI and SDI Video Transmission Kit, V Mount

SKU: CG68041 MFR: 6-8041
Earn VIP Reward Points

Key Features

  • Experience reliable video transmission with the Cinegears Ghost-Eye 800T.Code kit.
  • Achieve long-range wireless video up to 3280ft with low latency for seamless monitoring.
  • Enjoy high-resolution video with support for 1080p, 1080i, and 720p formats via HDMI & SDI.
  • The encrypted wireless HDMI and SDI video ensures secure and interference-free broadcasting.
  • This wireless video transmitter supports V-mount batteries for extended shooting times.
  • Simple to use: Features OLED display for easy monitoring of channel, signal, and power info.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Cinegears Ghost-Eye 800T.Code Encrypted Wireless Video Transmission Kit, V Mount Specifications

System
  • Frequency range

    5.1-5.9GHz
    2.4-2.483GHz with ISM band

  • Modulation method and Bandwidth

    OFDM/40MHz for video
    GFSK/1MHz for intercom system

  • Video Formats Supported

    1080p 23.98/24/25/30/50/60
    1080i 50/59.94/60
    720p 50/59.94/60
    576p 576i 480p 480i

  • Audio Formats Supported

    PCM, DTS-HD, Dolby TrueHD

  • Time Code

    SMPTE-12M

  • Transmission Range

    3280' (999.76m) (Line of sight)

Transmitter

Jump to...
  • Antenna

    2x External Antenna 5G
    1x External Antenna 2.4G

  • Transmission Power

    18dBm

  • Functional Interface

    HDMI Input; SDI Input; SDI Loop Output; Mini USB; LEMO Power IN; Antenna RPSMA Socket; Power ON/OFF, 3.5mm HP/MIC socket TALLY output for Wrist

  • Mounting Structure

    1/4" Hot-shoe connection

  • OLED Display

    Channel Info; Video status; Battery capacity; Status Menu, Audio Volume

  • Power Source

    9-18V for DC input, F550/F970 battery

  • Power Consumption

    7.5-8.5W

Receiver

Jump to...
  • Antenna

    5x External Antenna 5G
    1x External Antenna 2G

  • Receiving Sensitivity

    -70dBm

  • Functional Interface

    SDI Dual Output; HDMI Output; Mini USB; LEMO Power IN; Antenna RPSMA Socket; Power ON/OFF, 3.5mm HP/MIC socket;3.5mm TALLY socket; LEMO 6 needle

  • Locating Structure

    1/4" Hot-shoe connection

  • OLED Display

    Channel Info; Signal Strength; Power Info; TALLY indicator

  • Power Source

    9-18V for DC input; SONY V-mount battery

  • Power Consumption

    7.5-8.5W

General

Jump to...
  • Dimensions

    Transmitter: 142.5 x 76 x 24.3mm (5.61 x 2.99 x 0.96")
    Receiver: 169.5 x 122 x 25.2mm (6.67 x 4.80 x 0.99")

  • Weight

    Transmitter: 400g (14.11 oz) (with antenna)
    Receiver: 800g (28.22 oz) (with antenna)

  • UPC Code

    604015712370

About Cinegears Ghost-Eye 800T.Code Encrypted Wireless Video Transmission Kit, V Mount

Enhance your professional video production with the Cinegears Ghost-Eye 800T.Code Encrypted Wireless HDMI and SDI Video Transmission Kit, V Mount. This advanced system leverages the innovative technology of the M-Series, adding Tally and Talkback features for optimal broadcast performance.

The 800T.Code transmitter is equipped with a tally light, providing a clear indication when your camera is live. The talkback feature on the receiver end facilitates seamless communication between the director and camera operator. For maximum functionality, the 800T.Code transmitter can be paired with a video splitter to trigger the record function on an external recorder at the receiver's end.

The Ghost-Eye 800T.Code boasts the most accurate time code in the market, ensuring precision in your video production. The system also offers customizable encryption, providing unparalleled security for your signal. This unique feature makes the Ghost-Eye the only wireless video transmission system globally to offer customizable channel encryption while transmitting 10-bit HD video with less than 1ms latency.

The Ghost-Eye wireless transmission units are firmware upgraded and undergo a channel encryption process, assigning each channel a unique encryption key. Each transmitter and receiver is individually processed for optimal security and can be set up across multiple units and Ghost-Eye models for cross-compatibility.

Compliant with the Federal Communication Commission requirement and the Industry Canada certification standard, the Ghost-Eye system transmits uncompressed 1080p, 60fps video to an unlimited number of simultaneous receivers. Each Ghost-Eye transmitter and receiver features both HDMI and SDI output/input and in-unit cross conversion.

The system also offers 10 selectable frequency channels, coexisting with WIFI, and an auto-relink feature that automatically reconnects signals dropped due to interference or loss of line-of-sight within 1ms of the obstacle being removed. With high sensitivity, omni-directional antennas, and an adaptive signal logarithm, the Ghost-Eye system ensures your signal remains connected, even when small obstacles are in the line-of-sight.

The Cinegears Ghost-Eye 800T.Code Encrypted Wireless HDMI and SDI Video Transmission Kit, V Mount is a reliable, high-quality solution for your wireless video transmission needs, offering convenience, security, and superior performance.

Cinegears Ghost-Eye 800T.Code Encrypted Wireless Video Transmission Kit, V Mount Features

  • Perfect for Broadcast with Tally and Talk-back functionality
  • Wireless HD video and audio transmission over 800 meters (2500 feet)
  • Transmits 1080p resolution at up to 60fps with 10-bit 4:2:2 color
  • HDMI/SDI Cross Conversion with SDI Loop-Out
  • Extremely Accurate Time Code
  • Supports Start/Stop REC Functionality
  • Extreme Low Latency at less than 1ms
  • 4 Transmission Channels to an unlimited number of Ghost-Eye Receivers
  • Full cross-compatibility with other Ghost-Eye models
  • Auto-relink once transmitter is carried back within range

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Product Documents

User Manual

Key Features

  • Experience reliable video transmission with the Cinegears Ghost-Eye 800T.Code kit.
  • Achieve long-range wireless video up to 3280ft with low latency for seamless monitoring.
  • Enjoy high-resolution video with support for 1080p, 1080i, and 720p formats via HDMI & SDI.
  • The encrypted wireless HDMI and SDI video ensures secure and interference-free broadcasting.
  • This wireless video transmitter supports V-mount batteries for extended shooting times.
  • Simple to use: Features OLED display for easy monitoring of channel, signal, and power info.

What's in the box:

  • Cinegears Ghost-Eye 800T.Code Transmitter
  • Ghost-Eye 800T.Code Receiver
  • 2x 2-Pin Lemo to D-Tap Power Cables
  • 7x Extended High-Range Antennas
  • Heavy Duty Steel Ball Joint Articulated Arm
  • 2x Standard Antennas
  • Waterproof Foam Case
  • Cinegears 3 Year Limited Warranty
