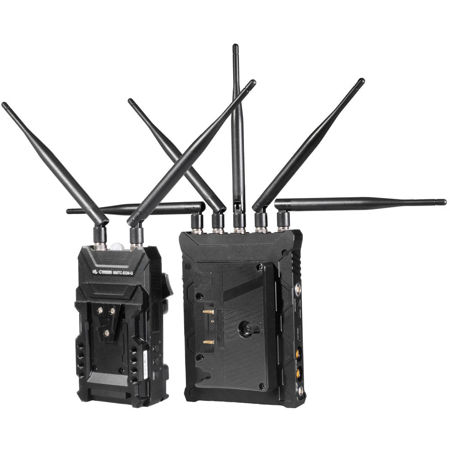

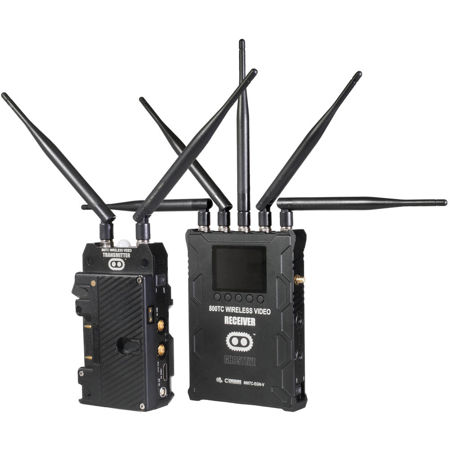

Cinegears 800TC ENG G-Mount Ghost Eye Wireless HD SDI Video Transmission Kit

SKU: CG6809 MFR: 6-809
Earn VIP Reward Points

Key Features

  • Experience reliable video transmission with this wireless HD SDI video transmission kit.
  • Achieve long-range, low latency with a transmission range up to 2500 feet.
  • Enjoy high-resolution video with formats up to 1080p for professional-grade quality.
  • Benefit from easy setup and operation, perfect for on-the-go broadcasting needs.
  • Ensure a stable connection with multiple antennas for enhanced wireless performance.
  • Use the affordable Cinegears Ghost-Eye system for seamless live streaming events.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Cinegears 800TC ENG Specifications

Receiver

Receiver

Jump to...
  • Frequency Range

    5.1-5.9 GHz
    2.4-2.483 GHz with ISM band

  • Modulation / Bandwidth

    OFDM / 40 MHz for video
    GFSK / 1 MHz for intercom system

  • Video Format Support

    1080p 23.98/24/25/30/50/60
    1080psf 23.98/24/25
    1080i 50/59.94/60
    720p 50/59.94/60

  • Audio Formats Supported

    PCM, DTS-HD, Dolby TrueHD

  • Time Code

    SMPTE-12M

  • Transmission Range

    Line of Sight: 2500' (762 m)

  • Transmitter/Receiver Antenna

    5x External antenna 5G
    External antenna 2G

  • Receiving Sensitivity

    -70 dBm

  • Interface

    SDI dual output
    HDMI output
    Mini-USB
    LEMO power input
    Antenna RPSMA socket
    Power On/Off, 3.5 mm HP/MIC socket
    3.5 mm TALLY socket
    LEMO 6 needle

  • Mounting

    1/4" hot shoe

  • OLED

    Channel info
    Signal strength
    Power info
    TALLY indicator

  • Power Source

    9 to 18 VDC
    G-Mount battery

  • Power Consumption

    7.5 to 8.5 W

  • Temperature

    Operating: 14 to 112 Degree F (-10 to 50 Degree C)
    Storage: -40 to 176 Degree F (-40 to 80 Degree C)

  • Dimensions

    6.7 x 4.8 x 1" (169.5 x 122 x 25.2mm)

  • Weight

    With Antenna: 28.2 oz (800g)

Transmitter

Jump to...
  • Frequency Range

    5.1-5.9 GHz
    2.4-2.483 GHz with ISM band

  • Modulation / Bandwidth

    OFDM / 40 MHz for video
    GFSK / 1 MHz for intercom system

  • Video Format Support

    1080p 23.98/24/25/30/50/60
    1080psf 23.98/24/25
    1080i 50/59.94/60
    720p 50/59.94/60

  • Audio Formats Supported

    PCM, DTS-HD, Dolby TrueHD

  • Time Code

    SMPTE-12M

  • Transmission Range

    Line of Sight: 2500' (762 m)

  • Transmitter/Receiver Antenna

    2x External antennas 5G
    External antenna 2.4G

  • Receiving Sensitivity

    18 dBm

  • Interface

    HDMI input
    SDI input
    SDI loop output
    Mini USB
    LEMO power input
    Antenna RPSMA socket
    Power On/Off, 3.5 mm HP/MIC socket TALLY output for wrist

  • Mounting

    1/4" hot-shoe

  • OLED

    Channel info, video status, battery capacity, status menu, audio volume

  • Power Source

    9 to 18 VDC
    G-Mount battery

  • Power Consumption

    7.5 to 8.5 W

  • Temperature

    Operating: 14 to 112 Degree F (-10 to 50 Degree C)
    Storage: -40 to 176 Degree F (-40 to 80 Degree C)

  • Dimensions

    5.6 x 3 x 1" (142.5 x 76 x 24.3mm)

  • Weight

    With Antenna: 14.1 oz (400g)

  • UPC Code

    612520356620

About Cinegears 800TC ENG

After integrating the advanced technology of the M-Series, the Cinegears Ghost-Eye 800TC ENG G-Mount elevates professional broadcasting to new heights with its innovative Tally and Talkback features. Designed for the dynamic demands of live broadcasting, the robust and high-quality Ghost-Eye 800TC ENG ensures seamless communication and signal integrity even in the most challenging environments.

The transmitter's integrated tally light provides immediate on-air status, ensuring that the camera operator and the rest of the crew are perfectly synchronized. Meanwhile, the receiver's Talkback function allows for clear, two-way communication between the director and camera operator, facilitating real-time direction and feedback.

This compact and user-friendly wireless HD SDI video transmission kit boasts a 10-Bit 4:2:2 video capability, transmitting uncompressed 1080p video at a smooth 60fps to an unlimited number of receivers simultaneously, without compromising on quality. With a negligible latency of just 1ms and a robust 300mb/s broadcasting capacity, the Ghost-Eye 800TC ENG outperforms the highest resolution demands, ensuring that every frame is captured with precision.

The system's cross-compatibility is a testament to its innovative design. Each transmitter and receiver supports both HDMI and SDI outputs/inputs, with in-unit cross-conversion capabilities. This means you can effortlessly send your feed via SDI and receive it via HDMI, or vice versa, adding to the system's versatility.

Compatibility extends across the Ghost-Eye range with the X-Sync feature, allowing for cross-compatible use between different models. Whether you're pairing a 400M transmitter with a 150M or 300M receiver, the system ensures a harmonious connection.

In the event of signal disruption due to interference or obstacles, the Ghost-Eye 800TC ENG's Auto-Relink feature promptly re-establishes the connection within 1ms once the path is clear. Furthermore, the adaptive signal algorithm intuitively maintains the connection, even when small obstacles momentarily obstruct the line-of-sight.

The high sensitivity, omni-directional antennas are engineered to broadcast your HD video signal with unwavering integrity, ensuring that your content is delivered with the clarity and detail it deserves.

The Cinegears Ghost-Eye 800TC ENG G-Mount is the epitome of professional-grade wireless video transmission, offering unparalleled performance and reliability for broadcasters seeking a durable and high-quality solution for their wireless HD video needs.

Cinegears 800TC ENG Features

  • Perfect for Broadcast with Tally and Talk-back functionality
  • Wireless HD video and audio transmission over 800m (2500')
  • Transmits 1080p resolution at up to 60fps with 10-bit 4:2:2 color
  • HDMI/SDI Cross Conversion with SDI Loop-Out
  • Time Code Supported
  • Supports Start/Stop Functionality
  • Extreme Low Latency at less than 1ms
  • 4 Transmission Channels to an Unlimited Number of Ghost-Eye Receivers
  • Full cross-compatibility with other Ghost-Eye models
  • Customizable Encryption
  • Auto-Relink Once Transmitter is Carried Back Within Range

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Product Documents

User Manual

Key Features

  • Experience reliable video transmission with this wireless HD SDI video transmission kit.
  • Achieve long-range, low latency with a transmission range up to 2500 feet.
  • Enjoy high-resolution video with formats up to 1080p for professional-grade quality.
  • Benefit from easy setup and operation, perfect for on-the-go broadcasting needs.
  • Ensure a stable connection with multiple antennas for enhanced wireless performance.
  • Use the affordable Cinegears Ghost-Eye system for seamless live streaming events.

What's in the box:

  • 800TC ENG G-Mount Ghost-Eye Wireless HD SDI Video Transmitter
  • 800TC ENG G-Mount Ghost-Eye Wireless HD SDI Video Receiver
  • Talk Back Control
  • 5 Pin to XLR Connector
  • 7x Extended High-Range Antennas
  • 2x Standard Antennas
  • Waterproof Foam Case for Ghost-Eye 800TC ENG
  • Cinegears 3 Year Limited Warranty
