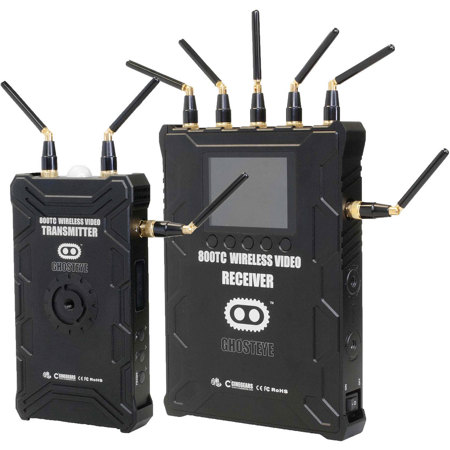

Cinegears Ghost-Eye 800TC ENG HD/SDI Video Transmission Kit, Encrypted, V-Mount
Cinegears Ghost-Eye 800TC: Picture 1 thumbnail
Cinegears Ghost-Eye 800TC: Picture 2 thumbnail
Cinegears Ghost-Eye 800TC: Picture 3 thumbnail
Cinegears Ghost-Eye 800TC: Picture 4 thumbnail
Cinegears Ghost-Eye 800TC: Picture 5 thumbnail
Cinegears Ghost-Eye 800TC: Picture 6 thumbnail
Cinegears Ghost-Eye 800TC: Picture 7 thumbnail
Cinegears Ghost-Eye 800TC: Picture 8 thumbnail
Cinegears Ghost-Eye 800TC: Picture 9 thumbnail
See all Cinegears items
Just Reduced

Cinegears Ghost-Eye 800TC ENG Wireless HD and SDI Video Transmission Kit, Encrypted, V-Mount

SKU: CG6814 MFR: 6-814
Be the first to review this itemAsk a Question
$4,650.00
$5,125.00
Save: $475 (9%)
OR
$388/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience stable signal transmission up to 2624ft with this wireless video kit.
  • Enjoy low latency (<1ms) for real-time monitoring with this wireless transmitter.
  • Transmit high-resolution video with uncompressed quality using this broadcast equipment.
  • Set up easily with the included V-Mount for quick power solutions on location.
  • Ensure signal security with 128-bit AES encryption for sensitive projects.
  • Benefit from a durable build, designed for rigorous field use in any environment.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Cinegears Ghost-Eye 800TC Specifications

Wireless

Wireless

Jump to...

  • Wireless Range

    2624.67' (800m) (Line-of-Sight)

  • Frequency Range

    5.1 to 5.9GHz

  • Latency

    < 1ms

  • RF Power

    18dBm

  • RF Sensitivity

    -70dBm

  • Wi-Fi

    2.4GHz

  • Wireless Video Compression

    Uncompressed

Interfaces

Jump to...

  • Antenna Ports

    Transmitter: 2x RP-SMA Female
    Receiver: 5x RP-SMA Female

  • Video Connectors

    Transmitter: 1x BNC (3G-SDI) Input
    1x HDMI (HDMI 1.4) Input
    1x BNC (3G-SDI) Loop Output

    Receiver: 1x BNC (3G-SDI) Output
    1x HDMI (HDMI 1.4) Output
    1x BNC (3G-SDI) Loop Output

  • Audio Connectors

    Transmitter: 1x 1/8" (3.5mm) TRRS Headphone/Microphone Stereo Headphone Input
    Receiver: 1x 1/8" (3.5mm) TRRS Headphone/Microphone Stereo Headphone Input

  • Other I/O

    Transmitter: 1x USB Mini-B Input
    1x 3.5mm Tally Input

    Receiver: 1x USB Mini-B Input
    1x 3.5mm Tally Input

  • Embedded Audio

    HDMI: 2-Channel
    SDI: 2-Channel
    Wireless: 2-Channel

  • Encryption

    128-Bit AES

Format Support

Jump to...

  • Broadcast System Compatibility

    NTSC, PAL

  • Video Format

    SDI/BNC: 1080p 4:2:2 10-Bit at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
    SDI/BNC: 1080i/720p/576i/480i at 50, 59.94, 60 fps
    HDMI: 1080p 4:2:2 10-Bit at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
    HDMI: 1080i/720p/576i/480i at 50, 59.94, 60 fps

  • Audio Format

    2-Channel PCM, DTS-HD, Dolby TrueHD Audio

  • Video Standard Compliance

    SMPTE 259M/274M/292M/296M/372M/424M-B/425M

  • Timecode

    Yes

Power

Jump to...

  • Built-In Battery

    Transmitter: None
    Receiver: None

  • Battery Support

    Transmitter: 1x V-Mount
    Receiver: 1x V-Mount

  • Power Connector

    Transmitter: 1x 2-Pin LEMO Input
    Receiver: 1x LEMO (Unspecified Type) Input

  • Power Consumption

    Power Supply: 9 to 18 VDC8.5W (Transmitter)
    Power Supply: 9 to 18 VDC8.5W (Receiver)

Environmental

Jump to...

  • Temperature

    Operating: 14 to 122 Degree F (-10 to 50 Degree C)
    Storage: -40 to 176 Degree F (-40 to 80 Degree C)

General

Jump to...

  • Mounting

    Transmitter: 1x 1/4"-20 Female
    Receiver: 1x 1/4"-20 Female

  • Dimensions

    Transmitter: 5.61 x 2.99 x 0.96" (142.5 x 76 x 24.3mm)
    Receiver: 6.67 x 4.8 x 0.99" (169.5 x 122 x 25.2mm)

  • Weight

    Transmitter: 14.1 oz (400g) (With Antenna)
    Receiver: 28.2 oz (800g) (With Antenna)

Other

Jump to...

  • UPC Code

    610877598472

About Cinegears Ghost-Eye 800TC

The CINEGEARS Ghost-Eye Wireless 800TC Video Transmission Kit includes an encrypted 800TC ENG transmitter with an L-series battery plate, an encrypted 800TC ENG receiver with a V-mount battery plate, XLR power cables, antennas, and a waterproof carry case with foam insert.

Cinegears Ghost-Eye 800TC Features

  • Includes encrypted 800TC ENG transmitter with L-series battery plate
  • Comes with encrypted 800TC ENG receiver featuring V-mount battery plate
  • Includes XLR power cables for easy power connection
  • Equipped with antennas for stable, long-range transmission
  • Features a waterproof carry case with foam insert for protection
  • Ideal for high-quality, secure wireless video transmission in professional setups

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience stable signal transmission up to 2624ft with this wireless video kit.
  • Enjoy low latency (<1ms) for real-time monitoring with this wireless transmitter.
  • Transmit high-resolution video with uncompressed quality using this broadcast equipment.
  • Set up easily with the included V-Mount for quick power solutions on location.
  • Ensure signal security with 128-bit AES encryption for sensitive projects.
  • Benefit from a durable build, designed for rigorous field use in any environment.

What's in the box:

  • Ghost-Eye 800TC ENG Encrypted Wireless HD and SDI Video Transmitter
  • Ghost-Eye 800TC ENG Encrypted Wireless HD and SDI Video Receiver
  • V-Mount Plate
  • 5-Pin to XLR Connector
  • 2x 5G Extended Range Antenna
  • 2G Standard Antenna
  • Waterproof Foam Case
  • Cinegears 3 Year Limited Warranty
