4Bar Flex T USB by CHAUVET DJ
1 video

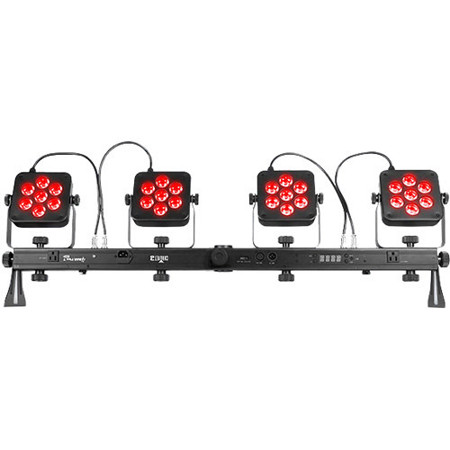

CHAUVET DJ 4BAR Flex T USB Washlighting Solution
See all CHAUVET DJ items

CHAUVET DJ 4BAR Flex T USB Washlighting Solution

SKU: CH4BARFXTUSB

This item is no longer available.

Recommended Alternatives

CHAUVET DJ Freedom H1: Picture 1 regular
CHAUVET DJ Freedom H1 10W Wireless LED Wash Light System with 4x Fixtures, White
$906.67$679.99
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CHAUVET DJ 4BAR Flex T USB Specifications

  • DMX Channels

    3 or 15

  • DMX Connectors

    3-pin XLR

  • Light Source

    28 LEDs (tri-color RGB) 3 W, (800 mA), 50,000 hours life expectancy

  • Strobe Rate

    0 to 22 Hz

  • Beam Angle

    18 Degree (per pod)

  • Field Angle

    31 Degree (per pod)

  • Illuminance

    2330 lux @ 2 m (per pod)

  • Power Linking

    8 units @ 120 V
    16 units @ 230 V

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    64 W, 1 A @ 120 V, 60 Hz
    63 W, 0.5 A @ 230 V, 50 Hz

  • Approvals

    CE

  • Optional Controllers

    IRC - 6, D-Fi USB

  • Stand Height

    7' 4" (2.2m)

  • Dimensions

    47.4 x 5.5 x 14.75" (1205 x 140 x 374.8mm)
    (Controller): 12.4 x 5.2 x 1.5" (315 x 131.5 x 37.5mm)

  • Weight

    11.6 lb (5.3kg)
    (Controller): 0.8 lb (1.8kg)

About CHAUVET DJ 4BAR Flex T USB

4BAR Flex T USB is one of the most versatile and convenient pack-n-go lighting systems anywhere. The unit features unmatched flexibility with the addition of D-Fi USB compatibility for wireless master/slave or DMX control. You can maximize setup possibilities and configurations with 2 included L-brackets and the unit mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole. Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4BAR Flex T USB and provide electricity to the additional lights by using the built-in Edison plugs. Easily set up and tear down in minutes with the included carrying bag and create large, coordinated light shows with other 4BAR fixtures in master/slave mode.

CHAUVET DJ 4BAR Flex T USB Features

  • Upgraded version of the popular 4BAR Tri USB increases FLEXibility
  • Mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole
  • D-Fi USB compatibility for wireless master/slave or DMX control
  • Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4BAR Flex
  • Provide electricity to the additional lights by using the built-in Edison plugs
  • Maximize setup possibilities and configurations with 2 included L-brackets
  • Easily set up and tear down in minutes with the included carrying bag
  • Multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6
  • Safely mounts to truss using built-in bolts
  • Create large, coordinated light shows with other 4BAR fixtures in master/slave mode

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Upgraded version of the popular 4BAR Tri USB increases FLEXibility
  • D-Fi USB compatibility for wireless master/slave or DMX control
  • Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4BAR Flex
  • Provide electricity to the additional lights by using the built-in Edison plugs
  • Maximize setup possibilities and configurations with 2 included L-brackets
  • Easily set up and tear down in minutes with the included carrying bag

What's in the box:

  • CHAUVET DJ 4BAR Flex T USB Washlighting Solution
  • Power Cord
  • Carrying Bag
  • Wireless Footswitch
  • Quick Reference Guide
  • CHAUVET DJ 2 Year Limited Warranty
