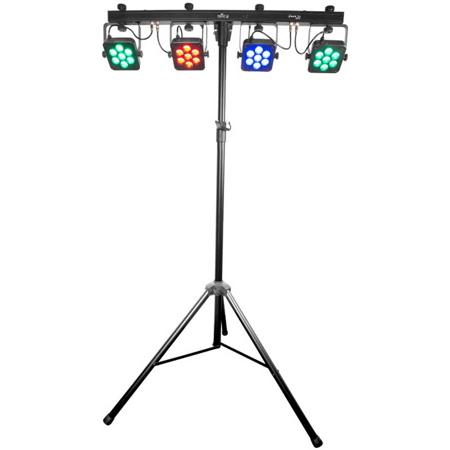

CHAUVET 4BAR Tri USB Wash Lighting Kit
See all CHAUVET DJ items

CHAUVET DJ 4BAR Tri USB Wash Lighting Kit

SKU: CH4BARTRIUSB
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CHAUVET DJ 4BAR Tri USB Specifications

  • DMX Channels

    3, 15

  • DMX Connectors

    3-pin XLR

  • Light Source

    28 x LEDs (tri-color RGB)
    Life expectancy: 50,000 hr

  • Strobe Rate

    0 to 25 Hz

  • PWM Frequency

    1200 Hz

  • Beam Angle

    18 degree

  • Field Angle

    31 degree

  • Illuminance

    2330 lux at 2 m (per pod)

  • Power Linking

    8 units at 120 V
    14 units at 230 V

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    69 W, 1 A at 120 V, 60 Hz
    66 W, 0.5 A at 230 V, 50 Hz

  • Compatibility

    Tripod sizes: 1.3 to 1.6" (3.4 to 4.0cm)

  • Approvals and Certifications

    CE

  • Dimensions

    41.3 x 2.0 x 10.6" (104.9 x 5.1 x 26.9cm)
    Controller: 12.4 x 5.2 x 1.5" (31.5 x 13.2 x 3.8cm)
    Stand height: 7.4' (2.3m)

  • Weight

    20.6lb (9.3kg)
    Controller: 0.8lb (0.4kg)

About CHAUVET DJ 4BAR Tri USB

4BAR Tri USB
4BAR Tri USB is a complete wash lighting solution fitted with high-intensity tri-color (RGB) LEDs that can be controlled wirelessly via the included footswitch or the optional IRC-6 controller (sold separately). It also features D-Fi USB compatibility for wireless master/slave or DMX control. A convenient tripod stand and carrying bag are included for quick and easy setup and tear down.

CHAUVET DJ 4BAR Tri USB Features

  • Complete Wash Lighting Solution Fitted with High-Intensity, Tri-Color (RGB) LEDs
  • Out of the Box Wireless Control with Included Footswitch or Optional IRC-6 Controller
  • Easily Set Up and Tear Down in Minutes with the Included Tripod Stand and Carrying Bags
  • Create Large, Coordinated Light Shows with Other 4BAR Fixtures in Master/Slave Mode
  • D-Fi USB Compatibility for Wireless Master/Slave or DMX Control
  • Create the Ultimate Light Show by Mounting up to 4 Additional Fixtures to the Top of the 4BAR Tri USB
  • Achieve Total Room or Stage Coverage with 4 Individually Adjustable Heads
  • Nearly Eliminate Multi-Colored Shadows with High-Power, Tri-Color (RGB) LEDs
  • Increase Mounting Options By Safely Mounting to Truss Using Built-in Bolts
  • Save Time Running Cables and Extension Cords by Power Linking Multiple Units
  • Sound-Activated Programs Dance to the Beat of the Music

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Complete Wash Lighting Solution Fitted with High-Intensity, Tri-Color (RGB) LEDs
  • Out of the Box Wireless Control with Included Footswitch or Optional IRC-6 Controller
  • Easily Set Up and Tear Down in Minutes with the Included Tripod Stand and Carrying Bags
  • Create Large, Coordinated Light Shows with Other 4BAR Fixtures in Master/Slave Mode
  • D-Fi USB Compatibility for Wireless Master/Slave or DMX Control
  • Achieve Total Room or Stage Coverage with 4 Individually Adjustable Heads

What's in the box:

  • CHAUVET 4BAR Tri USB
  • Carrying Bag
  • Tripod Carrying Bag
  • Tripod Stand
  • Wireless Footswitch
  • Quick Reference Guide
  • CHAUVET 2 Year Limited Warranty on Lights and Controller and 1 Year Limited Warranty on Tripod Stand and Carrying Bag
