Questions & Answers

FAQ

What kind of effects can the Abyss USB LED Light produce?

The Abyss USB LED Light can create a multicolored water effect. It's equipped with a dichroic color wheel and two glass effect wheels, all independently controllable, offering a wide range of design options.

Can the Abyss USB LED Light be controlled wirelessly?

Yes, the Abyss USB LED Light features D-Fi USB compatibility, allowing for seamless wireless control via master/slave or DMX configurations.

Is it possible to link multiple Abyss USB LED Lights together?

Yes, one of the key features of the Abyss USB LED Light is its power linking capability. This feature allows you to connect multiple units, saving you valuable time and effort in running cables and extension cords.

Can the Abyss USB LED Light be operated without a DMX controller?

Yes, the Abyss USB LED Light allows for non-DMX control in stand-alone mode, either through its intuitive digital display or with the optional IRC-6 remote control.

What is the best way to transport the Abyss USB LED Light?

For optimal protection and portability, the Abyss USB LED Light fits best in the CHS-40 VIP Gear Bag.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

CHAUVET DJ Abyss USB Specifications

  • DMX Channels

    3

  • DMX Connectors

    3-pin XLR

  • Colors

    5 + White; rainbow scroll

  • Light Source

    1 x LED (cool white)
    Power: 30 W (7 A)
    Life expectancy: 50,000 hrs

  • PWM Frequency

    1,200 Hz

  • Coverage Angle

    59 Degree

  • Illuminance

    715 lux at 2m

  • Power Linking

    14 units at 120 V
    27 units at 230 V

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    38 W, 0.5 A at 120 V, 60 Hz (65VA)
    37 W, 0.3 A at 230 V, 50 Hz (67VA)

  • Breaker Size

    T 1 A, 250 V

  • Approvals

    CE

  • Optional Controllers

    IRC-6

  • Dimensions

    7.7 x 9.0 x 9.7" (19.6 x 22.9 x 24.6cm)

  • Weight

    5.8 lb (2.6kg)

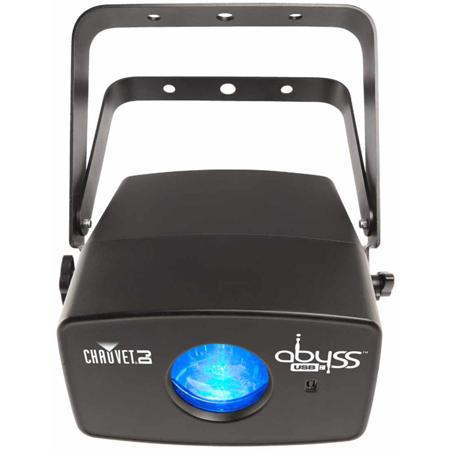

About CHAUVET DJ Abyss USB

An exceptional addition to any professional lighting setup, the Abyss USB LED Light from Chauvet DJ delivers a captivating multicolored water effect that enhances any environment, with or without the use of fog. Powered by upgraded, high-intensity LEDs, this dynamic light fixture offers a vibrant, bright, and colorful display that is sure to impress.

Designed for versatility and convenience, the Abyss USB LED Light features D-Fi USB compatibility, allowing for seamless wireless control via master/slave or DMX configurations. This feature enables you to effortlessly manage your lighting effects, making it an ideal choice for DJs, event planners, and lighting designers.

The Abyss USB LED Light is equipped with a dichroic color wheel and two glass effect wheels, all independently controllable, offering a wide range of design options. This professional-grade light fixture allows for non-DMX control in stand-alone mode, either through its intuitive digital display or with the optional IRC-6 remote control (sold separately).

One of the key features of the Abyss USB LED Light is its power linking capability. This feature allows you to connect multiple units, saving you valuable time and effort in running cables and extension cords. For optimal protection and portability, this dynamic LED light fits best in the CHS-40 VIP Gear Bag.

In conclusion, the Abyss USB LED Light is a bright, colorful, and versatile lighting solution that offers a range of dynamic effects, making it a must-have for professionals in the music and entertainment industry.

CHAUVET DJ Abyss USB Features

  • Eye-catching, LED effect light simulates a multicolored water effect
  • D-Fi USB compatibility for wireless Master/Slave or DMX control
  • Shines through any environment with or without fog using upgraded, high-power LEDs
  • Achieve optimal projection and effects using 1 dichroic color wheel and 2 glass effect wheels
  • Increase design options with independent control of effect and color wheels
  • Access non-DMX control in Standalone mode from digital display and IRC-6
  • Save time running cables and extension cords by power linking multiple units
  • Fits best in the CHS-40 Gear Bag

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Vibrant multicolored water effect LED light ideal for stages and events
  • Wireless control with D-Fi USB compatibility for DMX and master/slave setups
  • Independent control with dichroic color wheel and dual glass effect wheels
  • Stand-alone mode operation via digital display or optional IRC-6 remote
  • Power linking capability for streamlined setup of multiple units
  • Perfectly fits CHS-40 VIP Gear Bag for convenient transport and protection

What's in the box:

  • CHAUVET DJ Abyss USB LED Light
  • CHAUVET DJ 2 Year Limited Warranty
