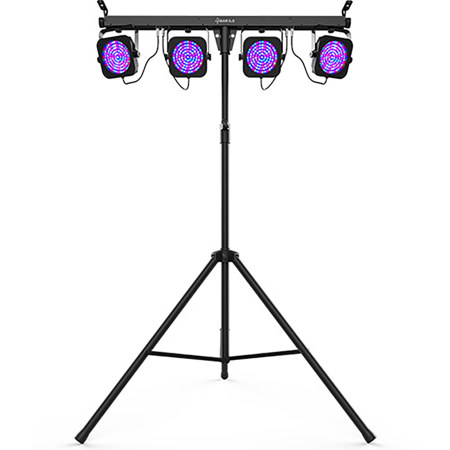

CHAUVET DJ 4BAR ILS All-in-One RGB LED Wash Light System

SKU: CH4BARILS MFR: 4BARILS
Earn VIP Reward Points

Key Features

  • Achieve stunning visual effects with vibrant RGB LED wash lighting, perfect for any event.
  • Experience seamless control with the included wireless footswitch, enhancing your live performances.
  • Effortlessly set up your lighting rig using the robust tripod and convenient carrying bag.
  • Enjoy versatile lighting options with 3, 5, or 15 DMX channels for precise customization.
  • Benefit from a long-lasting lighting solution with 432 LEDs, boasting a 100,000-hour life expectancy.
  • Integrate easily into your existing setup with ILS compatibility for synchronized light shows.
See More Product Details
Temporarily On Backorder?Expected Availability: 07/2026
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

CHAUVET DJ 4BAR ILS Specifications

  • DMX Channels

    3, 5 or 15

  • DMX Connectors

    3-pin XLR

  • Light Source

    432 LEDs (144 red, 144 green, 144 blue) 0.25 W, (20 mA), 100,000 hours life expectancy.

  • Strobe Rate

    0 to 19.9 Hz

  • Beam Angle

    17 Degree

  • Field Angle

    24 Degree

  • Illuminance

    786 lux @ 2 m (per pod)

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    29 W, 0.4 A @ 120 V, 60 Hz
    27 W, 0.2 A @ 230 V, 50 Hz

  • Approvals

    CE, RoHS, UKCA

  • Stand Height

    7.2' (2.2m)

  • Fits Tripod Sizes

    1.37" (35mm)

  • Optional Controllers

    IRC-6, D-Fi USB

  • Shutter / Strobe

    Electronic

  • Zoom Adjustment

    No

  • Dimming

    0 to 100%

  • Operating Modes

    Automatic, DMX, Program, Sound-Active, Static Color

  • Control Protocols

    DMX512, ILS

  • Display / Controls

    LED / 4-Button

  • Remote Control

    D-Fi, IR Remote (with Optional Equipment)
    Footswitch (with Included Equipment)

  • Wireless

    IR / Proprietary Wireless

  • Mounting

    Light Stand, Tripod Stand & Top Bar

  • Max Housing Temperature

    104 Degree F (40 Degree C)

  • Cooling

    Convection

  • Dimensions

    43.3 x 2 x 10.5" (1,100 x 50 x 267mm)
    Controller: 12.4 x 5.2 x 1.5" (315 x 132 x 38mm)

  • Weight

    11 lbs (5kg)
    Controller: 1.2 lbs (544g)

  • UPC Code

    781462218690

About CHAUVET DJ 4BAR ILS

4BAR ILS is a complete wash lighting solution designed for mobile entertainers. The ultra-convenience of the included tripod, wireless footswitch, and carry bags allow you to set up and tear down in minutes. But the ease and versatility of the 4BAR ILS go to higher levels with the addition of compatibility with ILS which makes creating coordinated light shows across different fixture types easy as 1, 2, 3. D-Fi USB compatibility for wireless master/slave and DMX control is also on board.

Achieve total room or stage coverage with 4BAR USB's four individually adjustable heads-create larger, synchronized light shows with other 4BAR fixtures in master/slave mode. Generate shows with easy-to-access, built-in, automated programs, or easily control static colors and automated programs with the optional IRC-6 remote.

CHAUVET DJ 4BAR ILS Features

  • Complete wash lighting solution designed for mobile entertainers
  • ILS compatibility for use in the ILS ecosystem
  • Achieve total room or stage coverage with 4 individually adjustable heads
  • D-Fi USB compatibility for wireless master/slave or DMX control (D-Fi USB sold separately)
  • Easily set-up and tear down in minutes using the included tripod, wireless footswitch and carry bags
  • Increase mounting options by safely mounting to truss using the built-in bolts
  • Create large, coordinated light shows with other 4BAR fixtures in master/slave mode
  • Sound-activated programs dance to the beat of the music
  • Easily control static colors and automated programs with the optional IRC-6 remote
  • Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Achieve stunning visual effects with vibrant RGB LED wash lighting, perfect for any event.
  • Experience seamless control with the included wireless footswitch, enhancing your live performances.
  • Effortlessly set up your lighting rig using the robust tripod and convenient carrying bag.
  • Enjoy versatile lighting options with 3, 5, or 15 DMX channels for precise customization.
  • Benefit from a long-lasting lighting solution with 432 LEDs, boasting a 100,000-hour life expectancy.
  • Integrate easily into your existing setup with ILS compatibility for synchronized light shows.

What's in the box:

  • CHAUVET DJ 4BAR ILS All-in-One RGB LED Wash Light
  • Wireless Footswitch Controller
  • Power Cord
  • Carrying Bag
  • Tripod
  • Tripod Carry Bag
  • User Manual
  • CHAUVET 2 Year Limited Warranty
