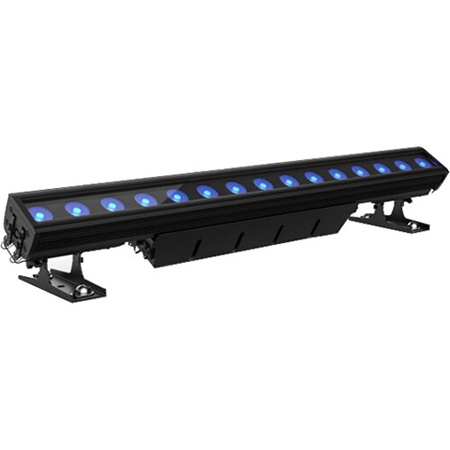

CHAUVET DJ COLORado Batten Q15 20W Quad-Color RGBW LED Wash Light, Black

SKU: CHCBQ15 MFR: COLORADOBATTENQ15
Earn VIP Reward Points

Key Features

  • Create stunning washes of color with this COLORado Batten Q15 LED wash light.
  • Achieve dynamic light shows using the COLORado Batten's built-in automated programs.
  • Enjoy temporary outdoor use with the COLORado Batten's IP65-rated weatherproof design.
  • Customize your stage lighting with the COLORado Batten's selectable PWM options.
  • Easily control the COLORado Batten Q15 via DMX or RDM for professional light shows.
  • Get creative with the COLORado Batten's 15 quad-color RGBW LEDs for vibrant hues.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

CHAUVET DJ COLORado Batten Q15 Specifications

Optical

Optical

Jump to...
  • Light Source

    15LEDs (quad-color RGBW) 20 W, (800 mA), 50,000 hours life expectancy

  • Color Temperature Range

    1800 to 8000 K

  • Installed Optics

    16 Degree

  • Beam Angle

    Horizontal: 15.5 Degree
    Vertical: 14.7 Degree

  • Beam Angle w/Filter

    Horizontal: 41.9 Degree
    Vertical: 15.3 Degree

  • Field Angle

    Horizontal: 28.6 Degree
    Vertical: 28.1 Degree

  • Field Angle w/Filter

    Horizontal: 77.9 Degree
    Vertical: 32.1 Degree

  • Lumens

    6324

  • Lumens w/Filter

    5547

  • Illuminance

    Total: 2399 lux @ 5 m

  • Illuminance w/Filter

    Total: 653 lux @ 5 m

  • Selectable PWM

    1,200 Hz, 2,000, 2,400 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

Jump to...
  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Strobe Rate

    0 to 25 Hz

  • Standalone Color Mixing

    Yes

  • Color Temperature Presets

    Yes

  • Dim Modes

    5

  • Built-in Automated Programs

    Yes

  • Customizable Programs

    Yes

  • Recall Custom Programs

    Yes

Connections

Jump to...
  • Power Connection

    Edison (Local) plug to Seetronic Powerkon IP65

  • Power Input

    Seetronic Powerkon IP65

  • Power Output

    Seetronic Powerkon IP65

  • Data Connectors

    5-pin IP65 XLR

  • Cable Length

    5' (1.5m)

Control

Jump to...
  • Control Protocol

    DMX, RDM

  • DMX Channels

    1 Cell: 4, 6, 8, 10
    15 Cell: 45, 60, 64, 66, 76

  • Modes/Personalities

    9 personalities

Electrical

Jump to...
  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power Linking

    6 units @ 100 V
    8 units @ 120 V
    14 units @ 208 V
    15 units @ 230 V; 16 units @ 240 V

  • Power and Current

    194 W, 1.606 A @ 120 V, 60 Hz
    197 W, 0.951 A @ 208 V, 60 Hz
    197 W, 0.860 A @ 230 V, 50 Hz

Certifications/Qualifications

Jump to...
  • Certificate

    CE, MET, FCC

  • IP Rating

    IP65, temporary outdoor/wet use

  • Temperature

    -4 to 113 Degree F (-20 to 45 Degree C)

Construction/Physical

Jump to...
  • Color

    Exterior: Black

  • Housing Material

    Aluminum alloy

  • Dimensions

    41.22 x 7.28 x 6.55" (1047 x 185 x 166.4mm)

  • Weight

    28.8 lbs (13kg)

  • UPC Code

    781462219307

About CHAUVET DJ COLORado Batten Q15

Discover the power and versatility of the COLORado Batten Q15 20W Quad-Color RGBW LED Wash Light in Black. Engineered for durability and performance, this tour-ready LED batten is equipped with 15 individually controllable RGBW LEDs. These quad-color LEDs effectively eliminate the "skittles" effect, enabling the creation of stunning pixel-mappable visuals.

The IP65-rated COLORado Batten Q15 is designed to deliver exceptional output, featuring selectable, smooth dimming curves for precise light control. It also offers convenient color temperature presets, allowing for quick and easy adjustments to suit your lighting needs.

Boasting an impressive reach, this LED wash light comes with a native 16-degree beam angle. It also includes a wall wash filter that expands the beam spread to 16 degrees by 43 degrees, ensuring smooth and even lighting.

The COLORado Batten Q15 offers flexible mounting options to suit various setups. It features adjustable trunnions with 1/4 turn adapters for the Omega Bracket, an innovative end-cap, and a back plate for seamless row alignment. This makes it ideal for icicles and floor mounting. Additionally, the unit comes with a stowable glare shield, enhancing its functionality and versatility.

Experience the difference with the COLORado Batten Q15 20W Quad-Color RGBW LED Wash Light, a reliable choice for professional lighting solutions.

CHAUVET DJ COLORado Batten Q15 Features

  • Quad-Color RGBW LED Batten for touring, rental, and production, indoors or out
  • All environment operation with IP rated power and DMX connections
  • Unique end-cap and back plate mounting options
  • Color temperature presets, from 1800 K to 8000 K
  • Selectable, smooth dimming curves for programming versatility
  • Built for touring, live event, television, and theatrical productions
  • Large, easy to navigate display with password protection

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Create stunning washes of color with this COLORado Batten Q15 LED wash light.
  • Achieve dynamic light shows using the COLORado Batten's built-in automated programs.
  • Enjoy temporary outdoor use with the COLORado Batten's IP65-rated weatherproof design.
  • Customize your stage lighting with the COLORado Batten's selectable PWM options.
  • Easily control the COLORado Batten Q15 via DMX or RDM for professional light shows.
  • Get creative with the COLORado Batten's 15 quad-color RGBW LEDs for vibrant hues.

What's in the box:

  • CHAUVET Professional COLORado Batten Q15 20W Quad-Color RGBW LED Wash Light
  • Seetronic Powerkon IP65 Power Cord
  • 2x Omega Bracket
  • Base Plate
  • 2x Retaining Pins
  • 2x Safety Cable
  • Glare Shield
  • Filter
  • CHAUVET Professional 2 Year Limited Warranty
