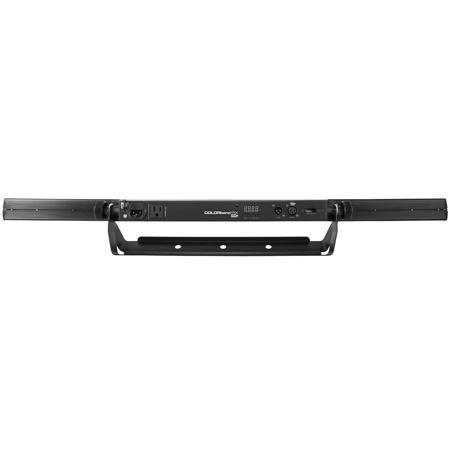

CHAUVET DJ COLORband Pix USB Linear 12 LED Wash Light
See all CHAUVET DJ items

CHAUVET DJ COLORband Pix USB Linear 12 LED Wash Light, 50000 Hours Lifespan

SKU: CHCLRBPIXUSB
Be the first to review this item

This item is no longer available.

Recommended Alternatives

CHAUVET DJ COLORado 1-Quad: Picture 1 regular
CHAUVET Professional COLORado 1-Quad 5W Quad-Color RGBW LED Wash Light, Black
$644.00
CHAUVET DJ COLORado 1QS: Picture 1 regular
CHAUVET Professional COLORado 1QS 3W Quad-Color RGBW LED Wash Light, Black
$724.00$645.00
CHAUVET DJ COLORado 2-Quad Zoom: Picture 1 regular
CHAUVET Professional COLORado 2-Quad Zoom 15W Quad-Color RGBW LED Wash Light
$1,689.50$1,498.00
CHAUVET DJ COLORdash PAR H12X IP: Picture 1 regular
CHAUVET DJ COLORdash PAR H12X IP 120W RGBWAUV LED Wash Light, Black
$893.50$792.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CHAUVET DJ COLORband Pix USB Specifications

  • Compatibility

    Wireless Master/Slave or DMX control

  • Power Supply Type

    Switching (internal)

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Consumption

    120 V, 60 Hz: 50 W
    230 V, 50 Hz: 47 W

  • Operating Current

    120 V, 60 Hz: 0.7 A
    230 V, 50 Hz: 0.4 A

  • Power linking current (products)

    120 V, 60 Hz: 8 A (11 products)
    230 V, 50 Hz: 8A (21 products)

  • Fuse

    120 V, 60 Hz:TIA.250V
    230 V, 50 Hz: TIA,250V

  • Power input connector

    IEC

  • Power output connector

    Edison

  • Power Cord plug

    Edison (U.S.)

  • Light Source

    12 LEDs (tri-color RGB) 3 W (1,000 mA), 50,000 hours life expectancy

  • Strobe Rate

    0 to 26 Hz

  • PWM Frequency

    1.22 kHz

  • Beam Angle

    29 deg.

  • Field Angle

    48 deg.

  • Illuminance

    2,254 lux at 2 m

  • Maximum External Temperature

    104 to 0 deg. F / 40 to -18 deg. C

  • Cooling System

    Convection

  • DMX Channels

    3, 4, 6, 7, 8, 9, 12, 18, 36 or 41

  • DMX Connectors

    3-pin XLR

  • Approvals

    CE, MET

  • Dimensions (L x W x H)

    38.9 x 2 x 6.2" / 988.06 x 50.80 x 157.48mm

  • Weight

    4lbs / 1.81kg

  • UPC Code

    781462215187

About CHAUVET DJ COLORband Pix USB

COLORBand Pix USB is a linear LED wash light that functions as a pixel mapping effect, blinder or wall washer. It features D-Fi USB compatibility for wireless Master/Slave or DMX control. Pixel mapping functions mean you can create amazing animations and video effects. Access to multiple pre-built programs is available with or without DMX.

The fixture's high-power, tri-color LEDs nearly eliminate multicolor shadows and its high-frequency LED dimming lets you achieve flicker-free operation suitable for video applications. Save time running cables and power cords by power linking multiple units. ColorBand Pix USB is ideal for quiet applications due to its silent operation and no moving parts. Control of static colors and automated programs is easy with the optional IRC-6 remote. Fits best in the optional CHS-60 VIP Gear Bag.

CHAUVET DJ COLORband Pix USB Features

  • Full-size LED strip light functions as a pixel mapping effect, blinder or wall washer
  • D-Fi USB compatibility for wireless Master/Slave or DMX control
  • Create amazing animations and video effects with individual LED control
  • Convenient access to multiple pre-built programs with or without DMX
  • Easily generate complex shows with ShowXpress Pixels
  • Includes multiple DMX personalities for a wide variety of programming styles
  • Nearly eliminate multicolor shadows with high-power, tri-color LEDs
  • Achieve flicker-free video operation with high-frequency LED dimming
  • Save time running cables and power cords by power linking multiple units
  • Ideal for quiet applications due to silent operation and no moving parts
  • Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote
  • Easily transports in the optional CHS-60 VIP Gear Bag

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • CHAUVET DJ COLORband Pix USB Linear 12 LED Wash Light
  • Power Cord
  • Hanging Bracket with Mounting Hardware
  • Quick Reference Guide
  • CHAUVET DJ 2 Year Warranty
