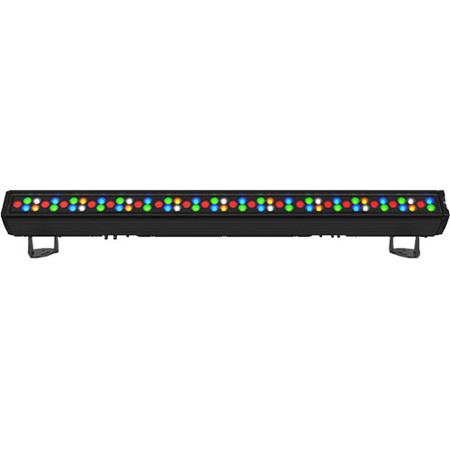

CHAUVET Professional COLORado Batten 72X IP65 LED Wash Light, 3200 to 10000K
CHAUVET Professional COLORado Batten 72X: Picture 1 thumbnail
CHAUVET Professional COLORado Batten 72X: Picture 2 thumbnail
CHAUVET Professional COLORado Batten 72X: Picture 3 thumbnail
CHAUVET Professional COLORado Batten 72X: Picture 4 thumbnail
See all CHAUVET Professional items

CHAUVET Professional COLORado Batten 72X IP65 LED Wash Light, 3200 to 10000K

SKU: CHCLRDBTN72X MFR: COLORADOBATTEN72X
Be the first to review this itemAsk a Question
$1,403.00
OR
$117/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Create stunning light shows with this COLORado Batten 72X LED wash light, offering vibrant color mixing.
  • Achieve superior color temperature control (3200-10000 K) for any event with this CHAUVET Pro lighting.
  • This IP65-rated LED wash light is perfect for outdoor events, providing reliable performance in any weather.
  • Enjoy versatile control options with DMX and RDM protocols for customized lighting effects with this batten.
  • Use the built-in automated programs to create dynamic lighting displays quickly and easily with this light.
  • Experience long-lasting performance with a 50,000-hour LED life, reducing maintenance for your lighting setup.
See More Product Details
Special Order?Estimated to Ship: 09/14/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

CHAUVET Professional COLORado Batten 72X Specifications

Optical

Optical

Jump to...

  • Light Source

    72 LEDs (18 red, 18 green, 18 blue, 9 white, 9 amber) 3 W, (690 mA), 50,000 hours life expectancy

  • Color Temperature (range)

    3200 to 10000 K

  • CRI (3200 K)

    80

  • Installed Optics

    24 deg.

  • Beam Angle

    22 deg. (Horizontal)
    18 deg. (Vertical)

  • Field Angle

    39 deg. (Horizontal)
    34 deg. (Vertical)

  • Lumens

    3631

  • Illuminance

    1730 lux at 5 m (total)

  • Selectable PWM

    600, 1200 Hz, 2000, 2400 Hz, 4000 Hz, 6000 Hz, 25000 Hz

Dynamic Effects

Jump to...

  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Strobe Rate

    0 to 25 Hz

  • Standalone Color Mixing

    Yes

  • Color Temperature Presets

    Yes

  • Dim Modes

    5

  • Built-in Automated Programs

    Yes

  • Customizable Programs

    Yes

  • Recall Custom Programs

    Yes

Connections

Jump to...

  • Power Connection

    Edison (Local) plug to Seetronic Powerkon IP65

  • Power Input

    Seetronic Powerkon IP65

  • Power Output

    Seetronic Powerkon IP65

  • Data Connectors

    5-pin IP65 XLR

  • Cable Length

    5' (1.52m) (power)

Control

Jump to...

  • Control Protocol

    DMX, RDM

  • DMX Channels

    1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16

  • 3 Cell

    9, 12, 15, 21, 22, 24, 27, 30, 43

  • Modes/Personalities

    18 personalities

Electrical

Jump to...

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power Linking

    10 units at 120 V; 17 units at 208 V; 19 units at 230 V

  • Power and Current

    161 W, 1.33 A at 120 V, 60 Hz
    164 W, 0.79 A at 208 V, 60 Hz
    163 W, 0.71 A at 230 V, 50 Hz

Certifications/Qualifications

Jump to...

  • Certifications/Qualifications

    CE, MET

  • IP Rating

    IP65, temporary outdoor/wet use

  • Ambient Temperature

    -4 to 113 deg. F (-20 to 45 deg. C)

General

Jump to...

  • Housing Material

    Aluminum alloy, Aluminum die-cast

  • Dimensions

    39.37 x 6.14 x 2.95" (100.00 x 15.60 x 7.49cm)

  • Weight

    18.6 lbs (8.44kg)

Other

Jump to...

  • UPC Code

    00781462218270

About CHAUVET Professional COLORado Batten 72X

Be captivated by the vibrant illumination of the COLORado Batten 72X IP65 LED Wash Light, a top-tier, robust batten-style wash light equipped with 72 precision-calibrated RGBWA LEDs. This compact, tour-ready lighting solution delivers exceptional color rendering, offering an expansive color palette that ranges from gentle pastels to rich, saturated hues.

With its advanced 16-bit dimming capability and a selection of five customizable dimming curves, the COLORado Batten 72X ensures smooth, seamless fades, making it an ideal addition to both modern and traditional lighting rigs. Its integrated trunnions are designed to accommodate clamps, allowing for versatile vertical or horizontal mounting options.

Built to withstand the elements, this high-quality LED wash light boasts an IP65 rating, making it waterproof and suitable for outdoor events or installations in damp environments. With its wide color temperature range of 3200 to 10000K, the COLORado Batten 72X offers unparalleled versatility, making it the perfect lighting solution for a multitude of applications. Experience the bright, colorful, and durable performance of the COLORado Batten 72X IP65 LED Wash Light.

CHAUVET Professional COLORado Batten 72X Features

  • RGBAW LED Batten for touring, rental and production, indoors or out
  • All environment operation with IP rated power and DMX connection
  • Color temperature presets, from 3200 K to 10000 K
  • Selectable, smooth dimming curves for programming versatility
  • Built for touring, live event, television and theatrical productions
  • Large, easy to navigate display with password protection

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Create stunning light shows with this COLORado Batten 72X LED wash light, offering vibrant color mixing.
  • Achieve superior color temperature control (3200-10000 K) for any event with this CHAUVET Pro lighting.
  • This IP65-rated LED wash light is perfect for outdoor events, providing reliable performance in any weather.
  • Enjoy versatile control options with DMX and RDM protocols for customized lighting effects with this batten.
  • Use the built-in automated programs to create dynamic lighting displays quickly and easily with this light.
  • Experience long-lasting performance with a 50,000-hour LED life, reducing maintenance for your lighting setup.

What's in the box:

  • CHAUVET COLORado Batten 72X IP65 LED Wash Light
  • Seetronic powerKON IP65 Power Cord
  • 2x Omega Bracket
  • CHAUVET 2 Year Limited Warranty
