CHAUVET Professional COLORdash Par-Quad 7 Colored RGBA LED
See all CHAUVET Professional items

CHAUVET Professional COLORdash Par-Quad 7 Colored RGBA LED with Power Cord, 3-pin and 5-pin DMX Connectors, 434 lux Illuminance at 5 m

SKU: CHCLRDSHPRQ7

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CHAUVET Professional COLORdash Par-Quad 7 Specifications

  • DMX Channels

    4, 6, 10

  • DMX Connectors

    3- and 5-pin

  • Light Source

    7 LEDs (quad-color RGBA) 7 W, (500 mA), 50, 000 hours life expectancy

  • Shutter/Strobe

    Electronic

  • Strobe Rate

    0 - 20Hz

  • Standalone Color Mixing

    Yes

  • Color Temperature Presets

    Yes

  • Installed Optics

    20 degree

  • Beam Angle

    18 degree

  • Field Angle

    32.5 degree

  • Illuminance

    434 lux at 5 m

  • Color Temperature (range)

    2,800 - 10,000K

  • IP Rating

    IP20, dry location

  • Cable Length

    5' / 1.52m

  • Power Connection

    Edison plug to Neutrik powerCON

  • Power Input

    Neutrik powerCON

  • Power Output

    Neutrik powerCON

  • Power Linking

    21 units at 120V; 36 units at 208V; 39 units at 230V

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    73W, 0.60A at 120V, 60Hz
    73W, 0.36A at 208V, 50Hz
    74W, 0.35A at 230V, 50Hz

  • Approvals

    CE, MET

  • Dimensions

    9.9 x 9 x 3.9" / 251.46 x 228.60 x 99.06mm

  • Weight

    10.6lbs / 4.81kg

  • UPC Code

    781462209582

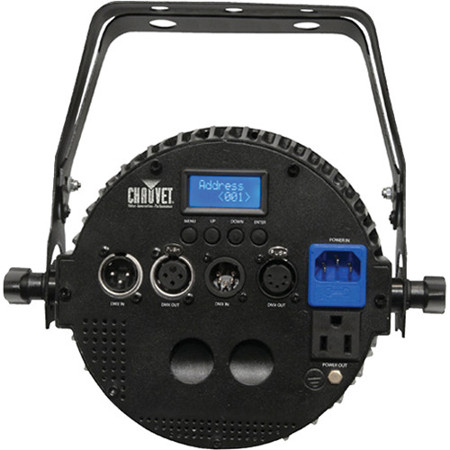

About CHAUVET Professional COLORdash Par-Quad 7

Powered by seven quad-color RGBA LEDs, the ultracompact CHAUVET COLORdash Par-Quad 7 fits in places where other fixtures cannot. The seven LEDs project deeply saturated output and any variation of white, without multi-color shadows. A split-yoke bracket eliminates the need for floor stands. Power linking with Neutrik powerCON in and out connectors and 3- and 5-pin DMX connectors ease connections and setup. COLORdash Par-Quad 7 also includes a built-in gel frame holder.

CHAUVET Professional COLORdash Par-Quad 7 Features

  • Silent flicker free operation
  • Individual pixel control
  • Selectable dimming curves
  • Pre-built auto programs
  • Maintain pixel pitch end to end or stacking
  • All metal construction for added durability

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Silent flicker free operation
  • Individual pixel control
  • Selectable dimming curves
  • Pre-built auto programs
  • Maintain pixel pitch end to end or stacking
  • All metal construction for added durability

What's in the box:

  • CHAUVET COLORdash Par-Quad 7 Colored RGBA LED
  • Power Cord
  • CHAUVET 2 Year Limited Warranty
