Chief CM2L40U Universal Automated Pop-Up Lift for Flat-Panel Displays

SKU: CHCM2L40U

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Chief CM2L40U Specifications

  • Compatibility

    110/120VAC 60 Hz

  • Center of Display to Floor/Table Range

    17" - 63" / 431.8 x 1600.2 mm

  • Certifications

    FCC Approved

  • Maximum Extension

    71" / 1803.4 mm

  • Mounting Pattern Compatibility

    200 x 200 mm - 862 x 517 mm (Universal Versions)

  • Orientation

    Landscape

  • Solution Type

    Universal, Custom

  • Typical Screen Sizes

    32" - 61" / 812.8 x 1549.4 mm

  • Load Capacity

    190 lbs / 86.19 kg

  • Dimensions (H x W x D)

    30.6" x 23.8" x 7.7" / 777.24 x 604.52 x 195.58 mm

  • UPC Code

    841872098036

About Chief CM2L40U

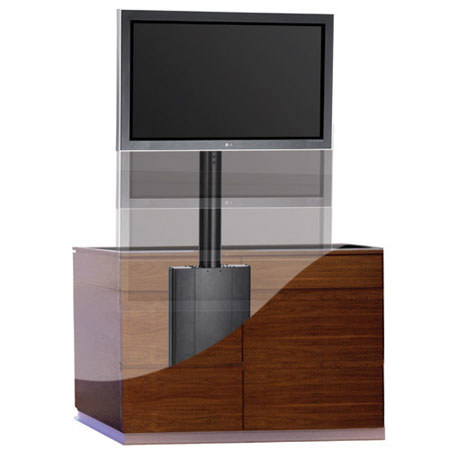

The Chief CM2L40U Universal Automated Pop-Up Lift is used to create a custom installation that permits your display to be hidden when not in use yet lift out into a show position as needed. With the Chief CM2L40U Automated Pop-Up Lift, you can raise or lower your flat panel screen with the press of a button. Designed for flat panel TVs up to 61" or 170 lbs, the CM2L40U provides fast adjustments at over 2" per second.

The lift provides up to 40" of travel with a stored height of only 31" and the exclusive Auto Drive gliding system provides fast and quiet adjustment. Customizable store and show positions allow fine-tuning for any installation and the unique lift design eliminates flat panel TV width constraints. A cable management system makes installation clean and hassle free. The CM2L40UU includes a universal interface bracket making it compatible with hundreds of flat panel displays from 32-61" or 170 lbs.

Chief CM2L40U Features

  • Exclusive Auto Drive gliding system provides fast and quiet travel at over 2" (51 mm) per second
  • Telescoping design collapses to a stored height of 31" (790 mm) with approximately 40" (101.6 cm) of travel
  • Multiple control options including serial communication and IR remote (included)
  • Chief's exclusive Q-Latch Mounting System provides increased security with a latching flag, easy to connect and disconnect
  • Unique cable management system allows cables to move freely within the lift
  • Customizable store and show positions allow fine-tuning for any installation
  • Unique lift design eliminates flat panel TV width constraints
  • Ships fully assembled
  • Compatible with 110/120VAC 60 Hz

Key Features

  • Unique cable management system allows cables to move freely within the lift
  • Unique lift design eliminates flat panel TV width constraints
  • Ships fully assembled

What's in the box:

  • Chief CM2L40U Universal Automated Pop-Up Lift
  • Remote Control
  • 6 " Power Cable
  • Chief Warranty
