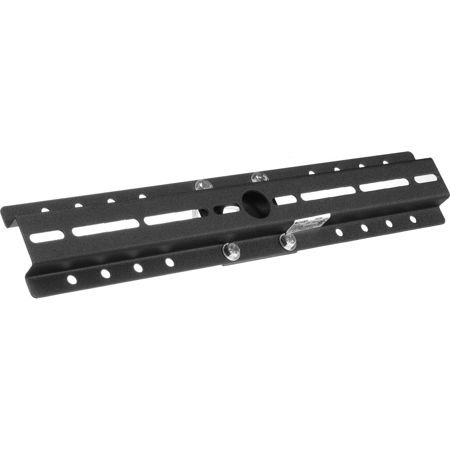

Chief CMA366 Architectural Spanning Adapter
See all Chief items

Chief CMA366 Architectural Spanning Adapter

SKU: CHCMA366

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Chief CMA366 Specifications

  • Certifications

    TUV Approved, UL Listed

  • Clamp Range

    Up to 2" (50.8 mm) OD or 1.9" (48.26 mm) square tubing

  • Span Distance

    5 - 18" (127 - 457.2 mm)

  • Load Capacity

    250 lbs (113.4 kg)

  • Dimensions (H x W x D)

    1.8 x 4 x 21.8" (45.72 x 101.6 x 553.72 mm)

  • UPC Code

    841872002682

About Chief CMA366

The Chief CMA366 Architectural Spanning Adapter spans truss systems for easy overhead installation of equipment in buildings and exhibit booths. The CMA-366 spans 5-18" (12.7-45.7 cm) and accommodates truss using up to 2" (5.1 cm) OD round or 1-7/8" (4.7 cm) square pipe. The CMA-366 accepts 1-1/2" NPT extension columns, letting you adjust the height to fit your needs and lets you route cable through the column.

Chief CMA366 Features

  • Spans truss systems and provides lateral shift capability
  • Compatible with 1.5" NPT extension columns
  • Allows cable routing through the column

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Compatible with 1.5" NPT extension columns
  • Allows cable routing through the column

What's in the box:

  • Chief CMA366 Architectural Spanning Adapter
  • 3/32 " Allen Wrench
  • 10-24 X 1/4 " Set Screw
  • Installation Instructions
  • Chief Warranty
