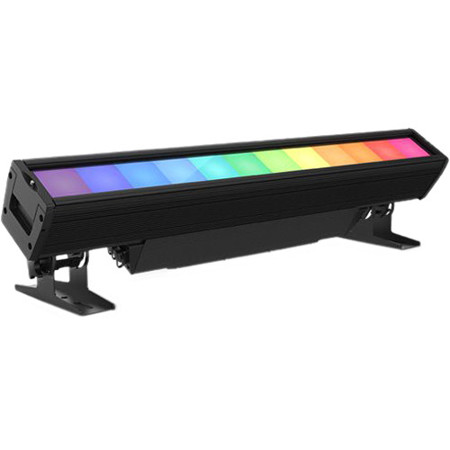

CHAUVET Professional COLORado Solo Batten with Glare Shield

SKU: CHCOLSOBATTE MFR: COLORADOSOLOBATTE
Earn VIP Reward Points

Key Features

  • Create vibrant washes with the COLORado Solo Batten's fully homogenized color mixing.
  • Achieve seamless wall washing with the included filter for smooth, even light.
  • This IP65-rated Batten is perfect for temporary outdoor events and installations.
  • Enjoy versatile control options with Art-Net, sACN, and DMX for lighting design.
  • Customize your shows with built-in automated programs and color temperature presets.
  • The COLORado Solo Batten's robust construction ensures durability for years of use.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

CHAUVET Professional COLORado Solo Batten Specifications

Optical

Optical

Jump to...
  • Light Source

    144 LEDs (24 red, 24 green, 24 blue, 24 amber, 48 white) 3 W, (612 mA) 50,000 hours life expectancy

  • Color Temperature (range)

    1800 to 8000 K

  • Installed Optics

    18 Degree

  • Beam Angle

    Horizontal:20 Degree
    Vertical:16 Degree

  • Beam Angle (with filter)

    Horizontal:37 Degree
    Vertical:15 Degree

  • Field Angle

    Horizontal:34 Degree
    Vertical:29 Degree

  • Field Angle (with filter)

    Horizontal:63 Degree
    Vertical:30 Degree

  • Lumens

    6968

  • Illuminance

    3,870 lux @ 5 m
    with filter:1,230 lux @ 5 m

  • Selectable PWM

    600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

Jump to...
  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Strobe Rate

    0 to 25Hz

  • Standalone Color Mixing

    Yes

  • Color Temperature Presets

    Yes

  • Dim Modes

    5

  • Built-in Automated Programs

    Yes

  • Customizable Programs

    Yes

  • Recall Custom Programs

    Yes

Connectons

Jump to...
  • Power Connection

    Edison (Local) plug to Seetronic Powerkon IP65

  • Power

    Input:Seetronic Powerkon IP65
    Output:Seetronic Powerkon IP65

  • Data Connectors

    5-pin IP65 XLR, Seetronic etherCON IP6

  • 5 Cable Length (power)

    5' (1.5m)

Control

Jump to...
  • Control Protocol

    Art-Net, DMX, RDM, sACN

  • DMX Channels

    1 Cell: 3, 4, 5, 8, 8, 9, 10, 13, 16
    2 Cell: 6, 8, 10, 15, 15, 17, 19, 20, 30
    3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
    12 Cell: 36, 48, 60, 75, 85, 87, 99, 120, 160

  • Art-Net Channels

    1 Cell: 3, 4, 5, 8, 8, 9, 10, 13, 16
    2 Cell: 6, 8, 10, 15, 15, 17, 19, 20, 30
    3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
    12 Cell: 36, 48, 60, 75, 85, 87, 99, 120, 160

  • Modes/Personalities

    37 personalities

Electrical

Jump to...
  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power Linking

    4 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V

  • Power and Current

    331 W, 2.75 A @ 120 V, 60 Hz
    329 W, 1.581 A @ 208 V, 60 Hz
    332 W, 1.456 A @ 230 V, 50 Hz

Certifications and Qualifications

Jump to...
  • Certification

    CE, MET, FCC

  • IP Rating

    IP65, temporary outdoor/wet use

  • Temperature (Ambient)

    -4 to 113 Degree F (-20 to 45 Degree C)

Construction/Physical

Jump to...
  • Color

    Exterior: Black

  • Material

    Housing: Aluminum die-cast

  • Dimensions

    39.86 x 9.06 x 9.84" (1012.5 x 230 x 249.8mm)
    Accessory Holder/Gel Frame Size: 38.75 x 3.81" (984.25 x 97mm)

  • Weight

    41.9 lbs (19kg)

  • UPC Code

    781462218287

About CHAUVET Professional COLORado Solo Batten

Explore the unparalleled lighting capabilities of the Professional COLORado Solo Batten with Glare Shield. This unique lighting fixture stands out in the market with its ability to project a single, homogenized wash that offers smooth color-mixing. The result is a brilliant, unified bar of light, devoid of the common round "eyes" or pixelated appearance often seen in other products.

Designed to complement the COLORado Solo pars flawlessly, this batten is more than just a lighting accessory. It's a tool for creating captivating visual effects. Engineered with 12 square sections, each can be individually controlled, allowing for a seamless blend of colors and the creation of an infinite variety of color control and pixel mapping effects.

The Professional COLORado Solo Batten is not just about aesthetics, it's also built for durability. With an IP65 rating, it's designed to withstand various environmental conditions, making it a reliable choice for both indoor and outdoor use.

In terms of connectivity, this batten is equipped with both DMX and RDM protocols, ensuring compatibility with a wide range of lighting control systems. Experience the fusion of functionality, versatility, and visual appeal with the Professional COLORado Solo Batten with Glare Shield.

CHAUVET Professional COLORado Solo Batten Features

  • RGBAW LED Batten with seamless end-to-end color for wash or pixel mapping
  • Completely homogenized color with no separation or dimmed lens corners
  • All environment operation with IP rated power, DMX, and Ethernet connections
  • Color temperature presets, from 1800 to 8000 K
  • Selectable, smooth dimming curves for programming versatility
  • Built for touring, live event, television, and theatrical productions
  • Large, easy to navigate display with password protection

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Create vibrant washes with the COLORado Solo Batten's fully homogenized color mixing.
  • Achieve seamless wall washing with the included filter for smooth, even light.
  • This IP65-rated Batten is perfect for temporary outdoor events and installations.
  • Enjoy versatile control options with Art-Net, sACN, and DMX for lighting design.
  • Customize your shows with built-in automated programs and color temperature presets.
  • The COLORado Solo Batten's robust construction ensures durability for years of use.

What's in the box:

  • CHAUVET Professional COLORado Solo Batten with Glare Shield
  • Seetronic Powerkon IP65 Power Cord
  • Wall Washing Filter
  • CHAUVET Professional 2 Year Limited Warranty
