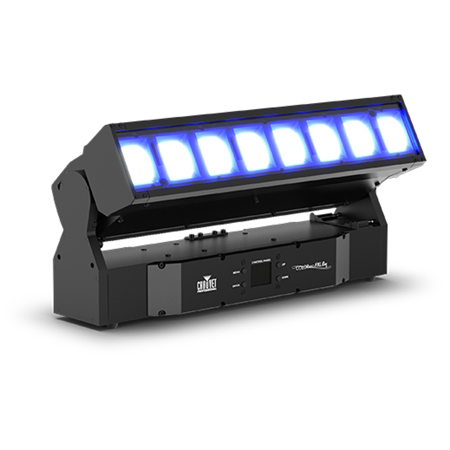

CHAUVET DJ COLORado PXL Bar 8 45W Quad-Color RGBW LED Batten Light, Black

SKU: CHCPXLBAR8 MFR: COLORADOPXLBAR8
Earn VIP Reward Points

Key Features

  • Create dynamic DJ lighting effects with the COLORado PXL Bar 8's motorized zoom.
  • Achieve vibrant washes & precise beams using the quad-color RGBW LED batten light.
  • Enjoy versatile control options: Art-Net, Kling-Net, DMX, RDM, and sACN protocols.
  • The COLORado PXL Bar 8 is IP65 rated, perfect for temporary outdoor events & DJ sets.
  • Customize your light shows with multiple DMX channels & unique personalities.
  • Easily link multiple units for expansive lighting displays at your DJ events.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

CHAUVET DJ COLORado PXL Bar 8 Specifications

Optical

Optical

Jump to...
  • Light Source

    8 LEDs (quad-color RGBW) 45 W, (3.0 A), 50,000 hours life expectancy

  • Color Temperature (calibrated white)

    6121 K

  • CRI

    64

  • Beam Angle

    3.5 Degree to 30.8 Degree
    Single cell: 4 Degree to 29.9 Degree

  • Field Angle

    5.2 Degree to 42.7 Degree
    Single cell: 5.4 Degree to 42.3 Degree

  • Cutoff Angle

    8.5 Degree to 47.3 Degree
    Single cell: 6.1 Degree to 45.5 Degree

  • Zoom Range

    3.6 Degree to 47.3 Degree
    Single cell: 4 Degree to 45.5 Degree

  • Lumens

    3503

  • Illuminance

    3.6 Degree : 12,109 lux @ 5 m
    47.3 Degree : 563 lux @ 5 m

  • Selectable PWM

    600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

  • Tilt

    200 Degree

  • Tilt Ranges

    60 Degree , 180 Degree , 200 Degree Tilt

Dynamic Effects

Jump to...
  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Zoom

    Motorized

  • Strobe Rate

    0 to 20 Hz

  • Dim Modes

    2

  • Dim Curves

    4

Connections

Jump to...
  • Power Connection

    Bare end to Seetronic Powerkon IP65

  • Power Input

    Seetronic Powerkon IP65

  • Power Output

    Seetronic Powerkon IP65

  • Data Connectors

    5-pin IP rated, Seetronic IP rated RJ45 Connectors in/out

  • Cable Length

    5' (1.5m)

Control

Jump to...
  • Control Protocol

    Art-Net, Kling-Net, DMX, RDM, sACN

  • DMX Channels

    Single Mode: 19, 51, 89 or 105
    Dual Mode LED: 24, 32, 64
    Dual Mode Movement: 25, 19, 7

  • Art-Net Channels

    Single Mode: 19, 51, 89 or 105
    Dual Mode LED: 24, 32, 64
    Dual Mode Movement: 25, 19, 7

  • Modes/Personalities

    10 personalities Single Mode: 19, 51, 89 or 105
    Dual Mode LED: 24, 32, 64
    Dual Mode Movement: 25, 19, 7

Electrical

Jump to...
  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power Linking

    2 units @ 120 V
    4 units @ 208 V
    5 units @ 230 V

  • Power and Current

    422 W, 3.497 A @ 120 V, 60 Hz
    409 W, 2.013 A @ 208 V, 60 Hz
    407 W, 1.830 A @ 230 V, 50 Hz

Certifications/Qualifications

Jump to...
  • Certificate

    CE, MET, FCC

  • IP Rating

    IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

  • Temperature

    -4 to 113 Degree F (-20 to 45 Degree C)

Construction/Physical

Jump to...
  • Color

    Exterior: Black

  • Housing Material

    Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer

  • Dimensions

    19.69 x 5.47 x 10.75" (500 x 139 x 273mm)

  • Weight

    25.2 lbs (11.5kg)

  • UPC Code

    781462222024

About CHAUVET DJ COLORado PXL Bar 8

COLORado PXL Bar 8 is a motorized, outdoor-ready tilting batten with capabilities to zoom for tight and wide pixel-mappable looks. This bright, moving pixel bar also features seamless edge-to-edge mounting and includes virtual gobo and movement macros with separate foreground and background color control for more design options than ever before. Slotted Omega brackets make it quick and easy to hang the fixture on truss. The COLORado PXL Bar 8 can also be positioned on the ground, which allows for a variety of different light angles. The power is in your hands and the possibilities are endless!

CHAUVET DJ COLORado PXL Bar 8 Features

  • IP65-rated motorized tilting batten with 8x 45 W RGBW LEDs with a 3.5 Degree to 47.3 Degree zoom range, maintains pixel pitch between fixtures
  • Quiet and quick operation of 200-degree tilt
  • Quiet and quick operation of zoom
  • Fully pixel mappable
  • Several built-in effects including virtual gobos and movement macros with foreground and background color control for easy pixel animation effects
  • DMX, SACN, Art-Net, and Kling-Net control for full flexibility
  • RDM Enabled for remote addressing and trouble shooting
  • 3.5 Degree to 47.3 Degree zoom range for variable beam sizes
  • TRUE1 compatible power input/output ports
  • IP65 rated 5 pin DMX and TCP/IP input/output ports
  • IP65 rated USBc software upload port
  • Slotted Omega brackets for easy hanging on truss

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Create dynamic DJ lighting effects with the COLORado PXL Bar 8's motorized zoom.
  • Achieve vibrant washes & precise beams using the quad-color RGBW LED batten light.
  • Enjoy versatile control options: Art-Net, Kling-Net, DMX, RDM, and sACN protocols.
  • The COLORado PXL Bar 8 is IP65 rated, perfect for temporary outdoor events & DJ sets.
  • Customize your light shows with multiple DMX channels & unique personalities.
  • Easily link multiple units for expansive lighting displays at your DJ events.

What's in the box:

  • CHAUVET Professional COLORado PXL Bar 8 45W Quad-Color RGBW LED Batten Light
  • Seetronic Powerkon IP65 Power Cord
  • Omega Bracket with Mounting Hardware
  • CHAUVET Professional 2 Year Limited Warranty
