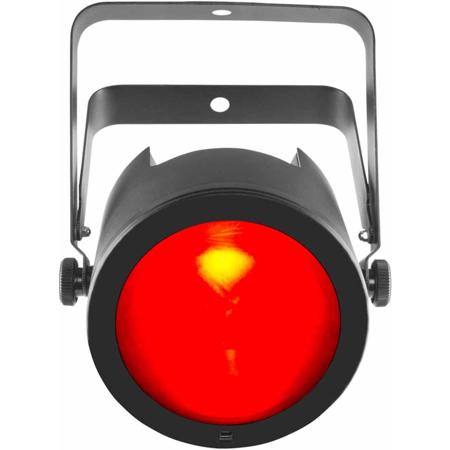

CHAUVET DJ COREpar 40 USB Full Spectrum Light with Color Mixing COB (Chip-on-Board) Technology

SKU: CHCRPR40USB

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

CHAUVET DJ COREpar 40 Specifications

  • DMX Channels

    3, 8

  • DMX Connectors

    3-pin XLR input and output

  • Light Source

    1 x COB LED (tri-color RGB)
    40 W, 2.0 A
    Life expectancy: 50,000 hr

  • Strobe Rate

    0 to 33 Hz

  • PWM Frequency

    2,000 Hz

  • Beam Angle

    With Lens: 20 Degree
    Without Lens: 40 Degree

  • Field Angle

    With Lens: 28 Degree
    Without Lens: 85 Degree

  • Illuminance

    With Lens: 1,660 lux at 6.56' (2m)
    Without Lens: 243 lux at 6.56' (2m)

  • Input Voltage

    100 to 240 VAC, 50/60 Hz

  • Power and Current

    47 W, 0.7 A at 120 V, 60 Hz
    46 W, 0.4 A at 230 V, 60 Hz

  • Power Connections

    IEC input and output

  • Power Linking

    11 units at 120 V
    21 units at 230 V

  • Approvals

    CE

  • Wireless Control, Optional

    IRC-6 remote (sold separately)
    D-Fi USB (requires D-Fi USB dongles, sold separately)

  • Display

    Four-button LCD for menu

  • Dimensions

    5.2 x 7.4 x 9.5" (13.2 x 18.9 x 24.2cm)

  • Weight

    3.4lbs (1.5kg)

About CHAUVET DJ COREpar 40

COREpar 40 USB produces a full spectrum of light with the unsurpassed color mixing of COB (Chip-on-Board) technology and includes a separate magnetic lens to provide the flexibility to go from an ultra-wide wash to a narrow beam in seconds. High frequency LED dimming achieves smooth LED fades and ensures a flicker-free performance in video applications. Multiple control options include DMX, master/slave and sound activation modes as well as wireless control thanks to D-Fi USB compatibility. Point-and-shoot operation of static colors and automated programs is also possible with the optional IRC-6 remote control (sold separately). The unit's robust sit-flat housing features power and DMX outlets on the side.

CHAUVET DJ COREpar 40 Features

  • COB (Chip-on-Board) LED produces a full spectrum of light with unsurpassed color mixing
  • D-Fi USB compatibility for wireless Master/Slave or DMX control
  • Included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds
  • Withstand the harshness of traveling from gig to gig with a robust housing
  • Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
  • Achieve flicker-free video operation with high-frequency LED dimming
  • Save time running cables and extension cords by power linking multiple units
  • Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote
  • Multiple control options include DMX, Master/Slave and Sound-Active modes
  • Create customized colors using the built-in LED display
  • Achieve smooth LED fading with built-in dimming curves
  • Easily transports in the optional CHS-30 VIP Gear Bag
  • Compact design easily fits inside sticks of TRUSST

Key Features

  • COB (Chip-on-Board) LED produces a full spectrum of light
  • D-Fi USB compatibility for wireless Master/Slave or DMX control
  • Withstand the harshness of traveling from gig to gig
  • Achieve flicker-free video operation
  • Point-and-shoot operation of static colors and automated programs
  • Multiple control options include DMX, Master/Slave and Sound-Active modes

What's in the box:

  • CHAUVET DJ COREpar 40 USB Full Spectrum Light
  • Magnetic Fresnel Lens
  • Dual-Bracket Mounting Yoke
  • Power Cord
  • CHAUVET DJ 2 Year Limited Warranty
