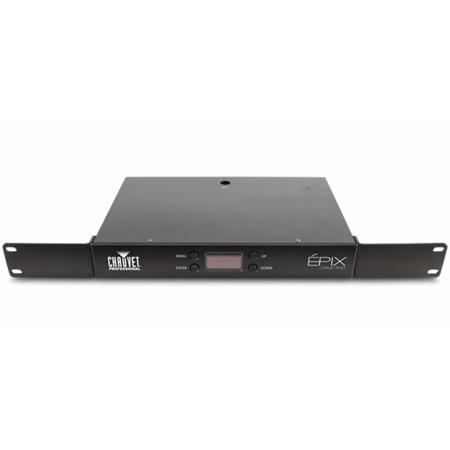

CHAUVET Professional EPIX Drive 900

SKU: CHEPIXDRV900 MFR: EPIXDRIVE900
Earn VIP Reward Points

Key Features

  • Unleash dynamic lighting with the EPIX Drive 900's advanced Art-Net control.
  • Easily manage your light shows using this lighting controller's Kling-Net protocol.
  • This lighting interface supports up to 6 Art-Net/sACN universes for complex setups.
  • Power link up to 12 units, simplifying power distribution for your DJ lighting rig.
  • Achieve maximum impact with this lighting controller's 18 Epix Strip Tour capacity.
  • Enjoy robust performance with this lighting interface, designed for durability and reliability.
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

CHAUVET Professional EPIX Drive 900 Specifications

  • Housing Material

    Steel

  • Rackmount

    1U

  • Threaded Bolt

    M12

  • Exterior Color

    Black

  • Power Connection

    Edison (local) plug to Neutrik powerCON

  • Power Input

    Neutrik powerCON

  • Power Output

    Neutrik powerCON

  • Device Outputs (4-pin XLR)

    1

  • Physical Linking

    18 inline Epix Strip Tour or 6 inline Epix Bar Tour

  • Data Connectors

    Neutrik etherCON

  • Cable Length (power)

    5.0' (1.5m)

  • Minimum Required Device Linking Cable

    4 conductor (2x 18 AWG, 2x 20 AWG)

  • Maximum Cable Length, Shielded

    Between Epix Drive 900 and Last Epix Tour Fixture: 210' (64m)
    Between Epix Drive 900 and First Epix Tour Fixture: 65' (20m)
    Between Epix Tour Fixtures: 60' (18m)

  • Maximum Cable Length, Unshielded

    Between Epix Drive 900 and Last Epix Tour Fixture: 300' (91m)
    Between Epix Drive 900 and First Epix Tour Fixture: 150' (45m)
    Between Epix Tour Fixtures: 100' (30m)

  • Control Protocol

    Art-Net, Kling-Net, sACN

  • Control Channels

    6 Art-Net/sACN Universes

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power Linking

    6 units at 120 VAC
    11 units at 208 VAC
    12 units at 230 VAC

  • Power and Current

    299 W, 2.53 A at 120 VAC, 60 Hz
    299 W, 1.44 A at 208 VAC, 60 Hz
    299 W, 1.31 A at 230 VAC, 50 Hz

  • Power and Current Resting

    23 W, 0.195 A at 120 VAC, 60 Hz
    32 W, 0.156 A at 208 VAC, 60 Hz
    32 W, 0.133 A at 230 VAC, 50 Hz

  • Maximum Electrical Load

    18 Epix Strip Tours or 6 Epix Bar Tours (per output)

  • Certifications & Ratings

    CE, MET

  • IP Rating

    IP20, dry location

  • Temperature (Ambient)

    Minus 4 to 113 Degree F (-20 to 45 Degree C)

  • Dimensions

    Rack with Ears: 19 x 7.6 x 1.97" (483 x 193 x 50mm)
    Rack Without Ears: 11.14 x 7.60 x 1.97 in (283 x 193 x 50mm)

  • Weight

    5.42lbs (2.46kg)

  • UPC Code

    00781462214890

About CHAUVET Professional EPIX Drive 900

When it comes to managing sophisticated lighting systems, the EPIX Drive 900, a product of the reputable brand Chauvet Professional, stands out as a durable, high-quality, and innovative solution. This advanced lighting controller is designed to host the processing and power supply for the EPIX Tour system, making it an essential tool for professionals seeking reliable and efficient lighting control.

The EPIX Drive 900 is capable of supporting either EPIX Strip Tours or 6 EPIX Bar Tours, or any combination of the two, with a total capacity of accommodating up to 900 LEDs. This versatility makes it an ideal choice for a wide range of lighting applications, from concerts to theatrical productions.

One of the key features of the EPIX Drive 900 is its compatibility with Art-Net, Kling-Net, and sACN, offering users a variety of control options to suit their specific needs. This ensures seamless integration into existing setups and provides flexibility in controlling and customizing lighting effects.

Moreover, the EPIX Drive 900 comes with an integrated web server, a feature that sets it apart from many alternatives. This allows users to remotely diagnose, troubleshoot, and change settings as needed without having to directly access the EPIX lights. This remote accessibility not only enhances convenience but also significantly reduces downtime, making the EPIX Drive 900 a truly advanced and reliable lighting controller.

CHAUVET Professional EPIX Drive 900 Features

  • The processing and power center of the Epix Tour system will drive any combination of Epix Tour products, up to 900 LEDs
  • Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring/rental/installation markets
  • Quickly and easily configure the Epix Drive 900 using the built-in OLED display
  • Easily detect and automatically configure your devices using the auto-address function, regardless of fixture order or type (bar/strip)
  • Supports up to 18 Epix Strip Tours or 6 Epix Bar Tours
  • Easily daisy chain fixtures directly from the single output of the Drive 900 on a single cable
  • Advanced power management design allows you to position the Drive 900 up to 65 ft away from your last fixture (using shielded cable)
  • Works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Unleash dynamic lighting with the EPIX Drive 900's advanced Art-Net control.
  • Easily manage your light shows using this lighting controller's Kling-Net protocol.
  • This lighting interface supports up to 6 Art-Net/sACN universes for complex setups.
  • Power link up to 12 units, simplifying power distribution for your DJ lighting rig.
  • Achieve maximum impact with this lighting controller's 18 Epix Strip Tour capacity.
  • Enjoy robust performance with this lighting interface, designed for durability and reliability.

What's in the box:

  • CHAUVET EPIX Drive 900
  • Neutrik powerCON Power Cord
  • 2 x Rack Ears
  • Bag of Rack Ear Mounting Screws
  • 4 x Rubber Feet
  • CHAUVET Limited 2 Year Warranty
