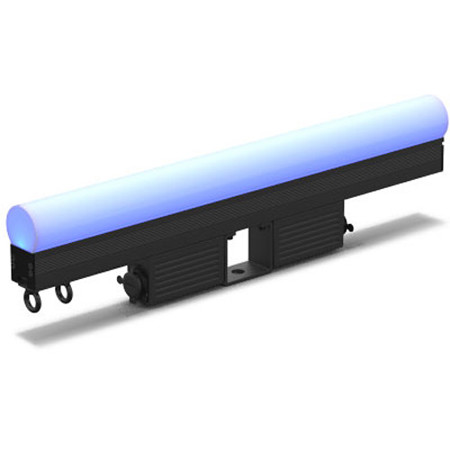

CHAUVET Professional 1.6' Epix Strip IP 50 Pixel-Mapping RGB LED Linear Fixture
See all CHAUVET Professional items

CHAUVET Professional 1.6' Epix Strip IP 50 Pixel-Mapping RGB LED Linear Fixture, Requires Epix Drive 2000

SKU: CHEPIXIP50

This item is no longer available.

Recommended Alternatives

CHAUVET Professional COLORado Batten 72X: Picture 1 regular
CHAUVET Professional COLORado Batten 72X IP65 LED Wash Light, 3200 to 10000K
$1,403.00
CHAUVET Professional Epix Strip Tour: Picture 1 regular
CHAUVET Professional EPIX Strip Tour Pixel-Mapping LED Bar, 3.3'
$350.50
CHAUVET Professional EPIX Strip IP: Picture 1 regular
CHAUVET Professional 3.28' EPIX Strip IP Pixel-Mapping LED Strip
$580.50
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

CHAUVET Professional Epix Strip IP 50 Specifications

Optical

Optical

Jump to...

  • Light Source

    50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy

  • Viewing Angle

    With installed Square Milky Filter: 160 deg.
    With Round Milky Filter: 160 deg.
    With Black Stealth Filter: 125 deg.

  • Illuminance

    Open: 8,640 NITS
    With installed Square Milky Filter: 2,470 NITS
    With Round Milky Filter: 1,360 NITS
    With Black Stealth Filter: 1,455 NITS

  • Pixels

    50 x 1

  • Pixel Pitch

    10mm (0.39")

  • Refresh Rate

    4800Hz

Connections

Jump to...

  • Data Connectors

    IP-65 4-pin XLR

  • Physical Linking

    20 inline Epix Strip IP per port of Drive 2000IP

  • Min Required Device Linking Cable Size

    4 conductor (2x 14 AWG, 2x 16 AWG)

  • Total Maximum Cable Length

    Shielded cables between Epix Drive 2000 IP and last Epix IP fixture: 210' (64.01m)
    Unshielded cables between Epix Drive 2000 IP and last Epix IP fixture: 300' (91.44m)

  • Maximum Cable Length

    Shielded cables between Epix Drive 2000 IP and first Epix IP fixture: 65' (19.81m)
    Shielded cables between Epix IP fixtures: 60' (18.29m)
    Unshielded cables between Epix Drive 2000 IP and first Epix IP fixture: 150' (45.72m)
    Unshielded cables between Epix IP fixtures: 100' (30.48m)

Control

Jump to...

  • Control Protocol

    Art-Net, Kling-Net, sACN

  • Control Channels Art-net, sACN

    7, 15, 30, 75, or 150

Electrical

Jump to...

  • Power and Current

    16W, 0.133A at 120V, 60Hz
    17W, 0.082A at 208V, 60Hz
    17W, 0.073A at 230V, 50Hz

Certifications / Qualifications

Jump to...

  • Certifications / Qualifications

    CE, MET
    IP Rating: IP65, outdoor/wet
    Temperature (Ambient): -4 to 113 deg. F (-20 to 45 deg. C)

General

Jump to...

  • Requirement

    Controller (required): EPIX Drive 2000 IP
    Compatible Mounting Options: M12 Bolt/Clamp (rear mounting)

  • Housing Material

    Aluminum

  • Dimensions

    With installed Square Milky Filter: 19.68 x 1.33 x 3.93" (499.87 x 33.78 x 99.82mm)
    With Black Stealth Filter: 19.68 x 1.33 x 3.46" (499.87 x 33.78 x 87.88mm)
    With Round Milky Filter: 19.68 x 1.77 x 5.03" (499.87 x 44.96 x 127.76mm)

  • Weight

    3.4 lbs (1.54kg)

Other

Jump to...

  • UPC Code

    781462217839

About CHAUVET Professional Epix Strip IP 50

Epix Strip IP 50 is an IP65 outdoor-rated pixel-mapping 1/2 meter LED strip fixture, featuring 50 LEDs. Ideal for use in tight spaces, this versatile fixture also comes with dome and flat accessories and stunning pre-built content to allow you to easily configure and program shows in minutes with minimum time/effort. Power and control it through our new Epix Drive 2000 IP on Art-Net, Kling-Net or sACN (streaming ACN).

CHAUVET Professional Epix Strip IP 50 Features

  • Pixel-mapping IP65 outdoor half-meter 50 x 1 LED strip for showing video and/or motion graphics
  • Includes square milky filter (installed) for diffused output, round milky filter (included) for diffused output and black stealth filter (included) for high contrast
  • Versatile control options include Art-Net, Kling-Net and sACN (streaming ACN) to support the touring, rental and installation markets
  • Reduce programming time and increase application by using the alternate personalities of 7 channel, multi-section control (15-30 channels), or use the Pixel personality (150 channels) for use with video servers
  • Increase viewing angle by using the dome or square accessory
  • Epix Drive 2000 IP required for operation

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • CHAUVET 1.6' Epix Strip IP 50 Pixel-Mapping RGB LED Linear Fixture with Square Milky Filter
  • Round Milky Filter
  • Black Stealth Filter
  • Quick Reference Guide
  • CHAUVET 2 Year Limited Warranty
