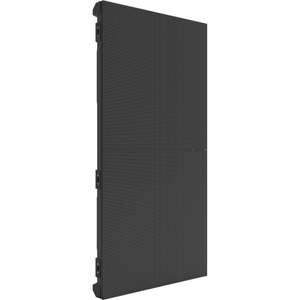

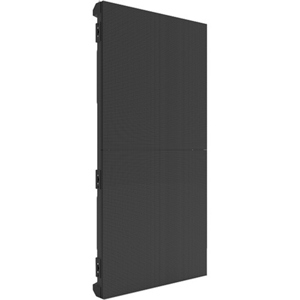

CHAUVET DJ F5IP IP65 Outdoor SMD LED Video Panel, 4-Pack

SKU: CHF5IPX4 MFR: F5IPX4
Earn VIP Reward Points

Key Features

  • Create stunning visual displays with this 4-pack of CHAUVET DJ F5IP LED video panels.
  • IP65 rated video panels are perfect for outdoor events, providing reliable performance.
  • High brightness of 6,000 NITS ensures your visuals are vibrant, even in daylight.
  • Achieve seamless video walls; hang up to 23 panels vertically or 17 horizontally.
  • Easy setup with Seetronic etherKON connectors for data and Seetronic Powerkon for power.
  • Enjoy long-lasting performance with LEDs rated for 50,000 hours, reducing maintenance.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

CHAUVET DJ F5IP Specifications

Optical

Optical

Jump to...
  • Light Source

    14,112 LEDs (tri-color RGB) SMD 1921, 50,000 hours life expectancy

  • Color Wavelength

    Red (615 to 630nm), Green (515 to 535nm), Blue (460 to 475nm)

  • Viewing Angle (H/V)

    160 Degree /155 Degree

  • Calibrated Illuminance

    5,000 NITS

  • Maximum Illuminance

    6,000 NITS

  • Contrast Ratio

    12,000:1

  • Grayscale

    14-bit

  • Receiver Card

    A5s

  • Drive Type

    1/7

  • Pixels

    84 x 168

  • Pixel Pitch

    5.9mm

  • Minimum Viewing Distance

    20' (6m)

  • Pixel Density

    28,224/sq.m

  • Display Refresh Rate

    1,920 Hz (S-PWM)

Connections

Jump to...
  • Power Connection

    Seetronic etherKON

  • Power Input

    Seetronic Powerkon IP65

  • Power Output

    Seetronic Powerkon IP65

  • Data Connectors

    Seetronic etherKON

  • Cable Length

    Signal extension: 4' (1.2m)
    Power: 6' (1.8m)
    Power extension: 4' (1.2m)

Control

Jump to...
  • Control Protocol

    Novastar

  • Maximum Panels/VIP Drive

    43Nova 2: 46/port, 132/Drive (4 ports) (may load up to 184 panels/drive if overlapping video content)
    83R Nova: 46/port, 270/Drive (8 ports) (may load up to 368 panels/drive if overlapping video content)

  • Maximum Panels Wide/VIP Drive

    43 Nova 2: 22 @ 1920 wide resolution
    83R Nova: 45 @ 3840 wide resolution

  • Maximum Strips Tall/ VIP Drive

    43 Nova 2: 6 @ 60Hz
    83R Nova: 6 @ 60Hz

Electrical

Jump to...
  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power Linking

    6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V

  • Power and Current

    339 W, 2.82 A @ 120 V, 60 Hz
    329 W, 1.58 A @ 208 V, 60 Hz
    345 W, 1.50 A @ 230 V, 50 Hz

    Resting:
    20 W, .214 A @ 120 V, 60 Hz
    18 W, .217 A @ 208 V, 60 Hz
    18 W, .196 A @ 230 V, 50 Hz

Certifications/Qualifications

Jump to...
  • Certifications

    CE, MET, FCC

  • IP Rating

    IP65, temporary outdoor/wet use

  • Operating Temperature

    -4 to 122 Degree F (-20 to 50 Degree C)

Construction/Physical

Jump to...
  • Threaded Bolt

    M12

  • Color

    Exterior: Black

  • Housing Material

    Magnesium die-cast

  • Maximum vertical hang

    23 panels

  • Maximum horizontal hang

    17 panels

  • Transparency

    0

  • Dimensions

    19.69 x 3.25 x 39.37" (500 x 82.5 x 1000mm)

  • Weight

    30 lbs (13.6kg)

  • UPC Code

    781462219420

About CHAUVET DJ F5IP

Experience the superior performance of the F5IP IP65 Outdoor SMD LED Video Panel, a top-tier lighting solution designed for both indoor and outdoor use. This robust panel boasts a pixel pitch of 5.9 mm, ensuring high-resolution video display that truly captivates. With a refresh rate of 1920 Hz and a brightness of 6,000 NITS, your video content will shine brilliantly, whether under the sun or the stars.

Crafted by Chauvet DJ, a leader in the music and lighting industry, this panel is not just about performance, but also about convenience and durability. Its advanced lightweight die-cast magnesium housing ensures it can withstand the rigors of outdoor use, while maintaining portability. The IP65 rating guarantees it's waterproof and resistant to dust, making it a reliable choice for any outdoor event, come rain or shine.

The F5IP Video Panel also features magnetic assisted hanging, optimizing quick and easy setup. This innovative design extends to maintenance as well, with both front and rear serviceability for hassle-free upkeep. The LED module, equipped with cutting-edge SMD LED technology, simplifies installation, ensuring your event setup is as smooth as possible.

This 4-pack set comes complete with a sturdy road case for secure transport and storage, as well as power/data linking cables for immediate use. Whether you're hosting a concert, festival, or outdoor advertising event, the F5IP IP65 Outdoor SMD LED Video Panel delivers professional-grade lighting that truly stands out.

CHAUVET DJ F5IP Features

  • 5.9 mm pitch high resolution outdoor video panel works with the VIP Drive 43Nova, using the Novastar control protocol
  • High quality black body LEDs accurately reproduce video at 14-bit grayscale, operating on the A5s receiver card from Novastar
  • High performance digital LED drivers deliver 1920 Hz refresh rate and a clear, vibrant image
  • Intelligent, high speed magnetic LED modules with dedicated memory stores factory calibration, ensuring optimal image quality, color uniformity, and simplifies maintenance by making service fast and easy
  • Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance
  • 1,000 x 500 x 82.5 mm, 30 lb (13.6 kg) magnesium die-cast housing (500 x 500 mm available) makes this product among the lightest and slimmest in its class without compromising strength, capable of hanging up to 23 panels vertically safely
  • Specialized frame design allows for overhead hanging, ground stacking, and wall mounting maximizing installation flexibility and aftermarket front and rear service; simply push out modules from the rear using the handles, or use the included service tool from the front
  • Front LED surface protective design features prevent damage when handling: 4x stainless steel standing feet to keep the LEDs from touching the floor, specialized LED board design to improve impact resistance up to 3x that of other panels, and resilient led mask design to optimize image viewing angle and uniformity without exposing the LEDs to front
  • Strong, magnetic assisted hanging makes setting up the panels fast and easy with a minimal crew
  • Optimized heat dissipation ensures an even color across the F5IP
  • Dual power supplies increase the stability of the system
  • Cable management solutions include angled connectors on panels for easy operation, long cables which can connector horizontally or vertically, and handles on the bottoms of each panel to organize cables and keep them neat
  • Rig bars, ground support system, and concave curving hardware available upon request

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Create stunning visual displays with this 4-pack of CHAUVET DJ F5IP LED video panels.
  • IP65 rated video panels are perfect for outdoor events, providing reliable performance.
  • High brightness of 6,000 NITS ensures your visuals are vibrant, even in daylight.
  • Achieve seamless video walls; hang up to 23 panels vertically or 17 horizontally.
  • Easy setup with Seetronic etherKON connectors for data and Seetronic Powerkon for power.
  • Enjoy long-lasting performance with LEDs rated for 50,000 hours, reducing maintenance.

What's in the box:

  • 4x CHAUVET Professional F5IP IP65 Outdoor SMD LED Video Panel
  • Seetronic Powerkon Power Cord
  • 4x Seetronic Powerkon Power Linking Cords
  • 4x Seetronic etherKON Signal Linking Cords
  • 5x Spare LED Masks
  • Front Service Tool
  • User Manual
  • CHAUVET Professional 2 Year Limited Warranty
