CHAUVET DJ FXarray Q5 RGB+UV LED Wash Light

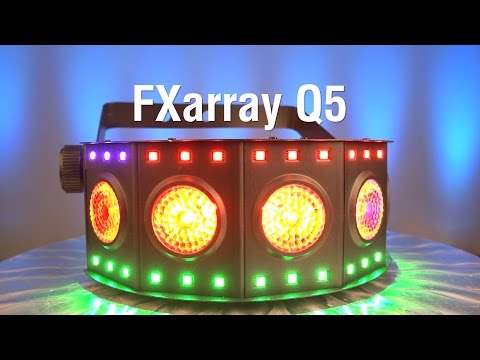

FXarray Q5 by CHAUVET DJ
CHAUVET DJ FXarray Q5 LED Wash Light: Picture 1 thumbnail
See all CHAUVET DJ items

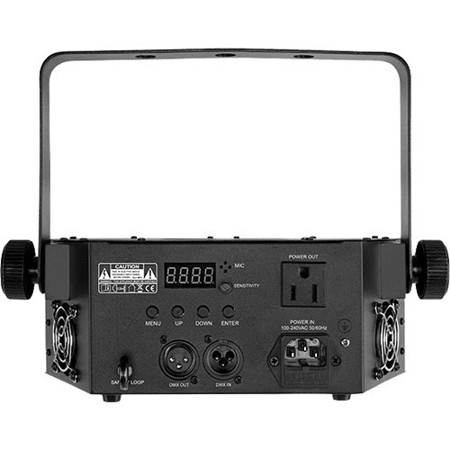

CHAUVET DJ FXarray Q5 RGB+UV LED Wash Light

SKU: CHFXARRAYQ5

This item is no longer available.

Recommended Alternatives

CHAUVET DJ 6SPOT RGBW: Picture 1 regular

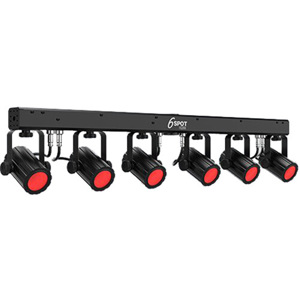

CHAUVET DJ 6SPOT RGBW Complete Pack-N-Go Lighting System
$506.67$379.99
CHAUVET DJ Abyss 2: Picture 1 regular
CHAUVET DJ Abyss 2 LED Effect Light
$373.34$279.99
CHAUVET DJ COLORado 1-Quad: Picture 1 regular
CHAUVET Professional COLORado 1-Quad 5W Quad-Color RGBW LED Wash Light, Black
$644.00
CHAUVET DJ COLORado 1QS: Picture 1 regular
CHAUVET Professional COLORado 1QS 3W Quad-Color RGBW LED Wash Light, Black
$645.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

CHAUVET DJ FXarray Q5 LED Wash Light Specifications

  • DMX Channels

    3, 10 or 30

  • DMX Connectors

    3-pin XLR

  • Light Source

    5 LEDs (quad-color RGB+UV) 6W, (2.1 A), 50,000 hours life expectancy
    30 SMDs (tri-color RGB) 0.3 W, (0.1 A), 50,000 hours life expectancy

  • Strobe Rate

    0 to 19 Hz

  • Beam Angle

    22 Degree

  • Field Angle

    36 Degree

  • Illuminance

    314 lux @ 2 m (per pod)

  • Power Linking

    15 units @ 120 V
    27 units @ 230 V

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    34 W, 0.5 A @ 120 V, 60 Hz
    32 W, 0.3 A @ 230 V, 50 Hz

  • Approvals

    CE

  • Optional Controllers

    IRC - 6

  • Dimensions

    11 x 8 x 6" (285 x 207 x 155mm)

  • Weight

    3.4 lb (1.6kg)

About CHAUVET DJ FXarray Q5 LED Wash Light

FXarray Q5 is an exciting and versatile quad-color LED wash light. It features an array of RGB+UV LEDs to spread light evenly across the dance floor with brilliant eye candy effects. Control the wash LEDs and the RGB SMDs separately for dynamic light shows and generate eye-catching effects with sound-activated and automated programs. FXarray Q5 is compatible with IRC-6 for flexible control over all features.

CHAUVET DJ FXarray Q5 LED Wash Light Features

  • Versatile quad-color LED wash light with brilliant eye candy effects
  • An array of RGB+UV LEDs spread light evenly across the dance floor
  • Control the wash LEDs and the RGB SMDs separately for dynamic light shows
  • Generate eye-catching effects with sound-activated and automated programs
  • Compatible with IRC-6 for flexible control over all features
  • Save time running extension cords by power linking multiple units
  • Fits best in the CHS-40 VIP gear bag

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Versatile quad-color LED wash light with brilliant eye candy effects
  • An array of RGB+UV LEDs spread light evenly across the dance floor
  • Control the wash LEDs and the RGB SMDs separately for dynamic light shows
  • Generate eye-catching effects with sound-activated and automated programs
  • Compatible with IRC-6 for flexible control over all features
  • Save time running extension cords by power linking multiple units

What's in the box:

  • FXarray Q5 RGB+UV LED Wash Light
  • Power Cord with Edison Plug (US/North America)
  • Hanging Bracket with Mounting Hardware
  • CHAUVET 2 Year Limited Warranty
