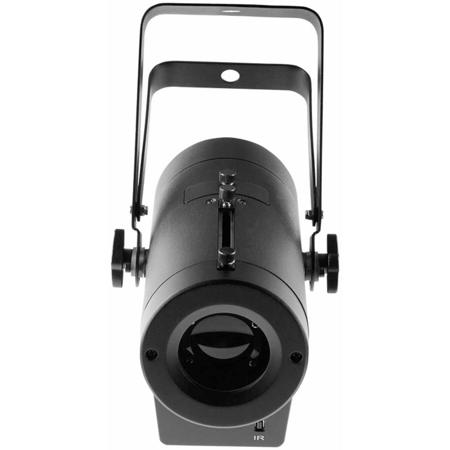

CHAUVET DJ Gobo Zoom USB Projector
See all CHAUVET DJ items

CHAUVET DJ Gobo Zoom USB Projector

SKU: CHGOBOZMUSB
Be the first to review this item

This item is no longer available.

Recommended Alternatives

CHAUVET DJ Obsession HP: Picture 1 regular
CHAUVET DJ Obsession HP 100W Compact LED Effect with Rotating Gobos
$520.00$389.99
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CHAUVET DJ Gobo Zoom USB Specifications

  • DMX Channels

    2

  • DMX Connectors

    3-pin XLR

  • Light Source

    1 LED (cool white) 25 W, (6 A)

  • LED Life Expectancy

    50,000 Hours

  • PWM Frequency

    1,200 Hz

  • Zoom Angle (manual)

    17 Degree to 28 Degree

  • Illuminance

    (17 Degree) 3,075 lux at 2m
    (28 Degree) 1,121 lux at 2m

  • Power Linking

    13 units at 120 V; 24 units at 230 V

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    41 W, 0.7 A at 120 V, 60 Hz
    39 W, 0.3 A at 230 V, 50 Hz

  • Optional Controller, Not Included

    IRC-6

  • Approvals

    CE

  • Gobo Size

    25.74mm outside, 19.38mm max image, 1mm max thickness

  • Weight

    4.4lb (2.1kg)

  • Dimensions

    9.4 x 4.9 x 9.6" (238 x 124 x 244mm)

  • UPC Code

    781462214067

About CHAUVET DJ Gobo Zoom USB

Gobo Zoom USB is a super compact gobo projector with a manual zoom, and wireless connectivity in master/slave and DMX mode, thanks to its embedded D-If USB compatibility. Gobo Zoom USB includes 10 wedding-ready gobos. Gobo Zoom USB can be controlled without DMX using the optional IRC-6 remote (sold separately). Gobo Zoom USB accepts custom gobos, including patterns and messages easily printed on transparency film. Fits best in the CHS-40 VIP Gear Bag.

CHAUVET DJ Gobo Zoom USB Features

  • Super-compact custom gobo projector, with built-in D-If USB compatibility that allows for instant wireless connectivity
  • D-If USB compatibility for wireless Master/Slave or DMX control
  • Control dimmer, gobo rotation and direction with the built-in digital display or optional IRC remove
  • Manual zoom for short-throw or long-throw applications
  • Access all functions via the optional IRC-6 remote
  • User-configurable standalone operation provides excellent control without DMX
  • Print your own custom gobos on transparency film
  • Fits best in the CHS-40 VIP Gear Bag

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Access all functions via the optional IRC-6 remote
  • D-If USB compatibility for wireless Master/Slave or DMX control
  • Fits best in the CHS-40 VIP Gear Bag
  • Manual zoom for short-throw or long-throw applications
  • Print your own custom gobos on transparency film
  • User-configurable standalone operation provides excellent control without DMX

What's in the box:

  • CHAUVET DJ Gobo Zoom USB Projector
  • 10x Wedding Ready Gobos
  • CHAUVET DJ 1 Year Limited Warranty
