What is the purpose of the motorized zoom on the Intimidator Spot 475Z LED Moving Head?

The motorized zoom on the Intimidator Spot 475Z LED Moving Head allows it to adapt to both short-throw and long-throw situations, making it versatile for different event spaces.

What are the dual rotating prisms and gobo wheels used for?

The dual rotating prisms and gobo wheels on the Intimidator Spot 475Z LED Moving Head are used to create dramatic visual effects and mid-air projections, enhancing the overall ambiance of any event.

What is the benefit of the built-in totem mode?

The built-in totem mode on the Intimidator Spot 475Z LED Moving Head ensures the beams stay exactly where you want them, providing precise control over your lighting effects.

What is the function of the full-color LCD display?

The full-color LCD display on the Intimidator Spot 475Z LED Moving Head allows you to easily set, save, and recall one scene manually, offering a convenient way to manage your lighting effects.

Can the Intimidator Spot 475Z LED Moving Head be controlled remotely?

Yes, the Intimidator Spot 475Z LED Moving Head offers wireless non-DMX control using the optional IRC-6 remote, allowing you to control your lighting effects from a distance.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

CHAUVET DJ Intimidator Spot 475Z Specifications

  • DMX

    DMX Channels: 10 or 16
    DMX Connectors: 3-Pin XLR

  • Pan & Tilt

    Pan and Tilt: 540deg. / 270deg.
    Pan and Tilt Ranges: Pan: 540deg., 360deg., 180deg.
    Tilt: 270deg., 180deg., 90deg.

  • Colors

    7 + White, Split Colors, Continuous Scroll at Variable Speeds

  • Gobos

    7 + Open (6 Aluminum + 1 Glass), Rotating, Interchangeable, Indexing, Continuous Scroll, at Variable Speeds

  • Light Source

    1 LED (White) 250 W, (16.3 A), 50,000 hours life expectancy

  • Strobe Rate

    0 to 20 Hz

  • PWM Frequency

    2 kHz

  • Illuminance

    (13deg.): 106,300 lux at 6.6'/2.0m
    (28deg.): 23,680 lux at 6.6'/2.0m
    (13deg.): 14,290 lux at 16.4'/5.0m
    (28deg.): 3741 lux at 16.4'/5.0m

  • Gobo Size

    Outside: 1" (2.54cm)
    Image: 0.8" (2.03cm)
    Max Thickness: 0.04" (0.10cm)

  • Prism Type

    Prism 1: 6-Facet Round, Bidirectional Rotation at Variable Speeds
    Prism 2: 6-Facet Linear, Bidirectional Rotation at Variable Speeds

  • Zoom Angle

    Motorized: 13deg. to 28deg.

  • Approvals

    CE, MET

  • Power Linking

    2 Units at 120V
    4 Units at 230V

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (Auto-Ranging)

  • Power and Current

    380 W, 3.4 A at 120 V, 60 Hz
    378 W, 1.9 A at 230 V, 50 Hz

  • Power Connectors

    powerCON with Edison Plug

  • Temperature

    Maximum External Temperature: 40 deg. C (104 deg. F)

  • Cooling System

    Fan-assisted convection

  • Dimensions

    14.3 x 9.8 x 20.9" (36.32 x 24.89 x 53.09cm)

  • Weight

    36.2 lbs (16.42kg)

  • UPC Code

    00781462218331

About CHAUVET DJ Intimidator Spot 475Z

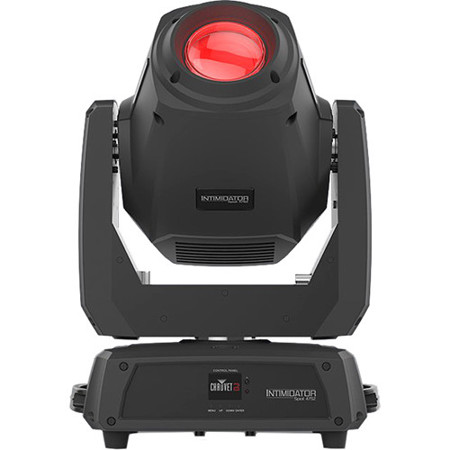

Become the master of lighting effects with the Intimidator Spot 475Z LED Moving Head, a powerful and versatile lighting solution designed to spotlight large events. This high-quality product from the reputable brand, Chauvet DJ, is engineered to adapt to both short-throw and long-throw situations, thanks to its motorized zoom.

Equipped with an ultra-bright 250W LED, the Intimidator Spot 475Z produces intense, vibrant colors, making it an ideal choice for concerts, festivals, and nightclubs. Its dual rotating prisms split the beam to create dramatic visual displays, enhancing the overall ambiance of any event.

The Intimidator Spot 475Z LED Moving Head also features dual gobo wheels, enabling gobo morphing and spectacular mid-air projections. With its motorized focus, this durable moving head fixture can channel crisp projections at almost any distance, ensuring your lighting effects are always on point.

The built-in totem mode ensures the beams stay exactly where you want them, while the 1/4-turn hanging bracket provides flexible mounting options, allowing for single or dual clamp mounting.

The full-color LCD display of the Intimidator Spot 475Z LED Moving Head offers an easy way to set, save, and recall one scene manually. It also features powerCON-compatible power input/output connections for power linking, making setup and breakdown a breeze.

For added convenience, this intimidating lighting powerhouse offers wireless non-DMX control using the optional IRC-6 remote, giving you complete control over your lighting effects from a distance.

Experience the power and versatility of the Intimidator Spot 475Z LED Moving Head and elevate your lighting game to new heights.

CHAUVET DJ Intimidator Spot 475Z Features

  • Extremely bright, 250 W LED moving head spot designed for large events
  • Dual rotating prisms split the beam for great effects and cover a larger area
  • Dual gobo wheels allow for gobo morphing and amazing mid-air projections
  • Motorized zoom for short- or long-throw situations
  • Unique 1/4-turn hanging bracket allows for single or dual clamp mounting options
  • Emit crisp projections at almost any distance using the motorized focus
  • Beams always remain on the dance floor using the built-in, innovative Totem mode
  • Convenient, wireless non-DMX control using the optional IRC-6 remote
  • Set, save and recall 1 scene manually, directly from the full-color LCD display
  • powerCON-compatible power input/output connections for power linking

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Product Documents

User Manual

Key Features

  • Create dynamic light shows with this 250W LED moving head spotlight.
  • Enhance any DJ set with vibrant colors and custom gobo patterns using this light.
  • Enjoy precise beam control with a motorized zoom from 13° to 28° for spotlight effects.
  • Easily control your lighting with 10 or 16 DMX channels for advanced customization.
  • This durable Chauvet DJ spotlight is perfect for mobile DJs or permanent installations.
  • Set the mood with dual rotating prisms, offering unique visual effects for any event.

What's in the box:

  • CHAUVET DJ Intimidator Spot 475Z LED Moving Head
  • Power Cord
  • Hanging Bracket with Mounting Hardware
  • CHAUVET DJ 2 Year Limited Warranty
