Chief JWDV Medium Flat Panel Swing Arm Wall Mount, 20" Extension, Black Specifications

  • Solution Type

    Universal

  • Typical Screen Sizes

    26 - 45" / 660.4-1143mm

  • Maximum Extension

    20.38" (517.7mm)

  • Minimum Depth

    2.69" (68.3mm)

  • Mounting Pattern Compatibility

    (Universal Versions): 100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm

  • Orientation

    Landscape, Portrait

  • Post-Installation Leveling (Roll)

    Yes

  • Tilt

    + 15deg., - 15deg.

  • Swivel

    Up to 180deg.

  • Load Capacity

    75 lbs (34 kg)

  • Dimensions (H x W x D)

    14.7" x 12.1" x 2.7" (373 x 308 x 68mm)

  • UPC Code

    841872063980

About Chief JWDV Medium Flat Panel Swing Arm Wall Mount, 20" Extension, Black

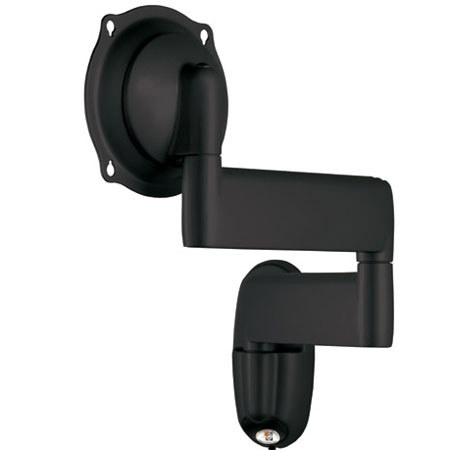

The Chief JWDV Medium Flat Panel Swing Arm Wall Mount (Black) provides a broad range of motion for viewing 26-45" medium flat panel LCD TVs and monitors up to 75 lbs from multiple angles. It features easy installation and ultra smooth adjustment for viewing flexibility, folds in close to the wall for a low-profile appearance and has built-in cable management for a clean installation.

Chief JWDV Medium Flat Panel Swing Arm Wall Mount, 20" Extension, Black Features

  • Centris Fingertip Tilt provides smooth tilt adjustment in all directions
  • Gravity-centered tilt self-adjusts to securely hold different display weights
  • Teardrop hole pattern makes mounting the screen quick and easy
  • Portrait and landscape screen installation
  • Smooth extension to achieve ideal viewing angle
  • Independently adjustable tension at pivot points for customized control
  • Folds in close to the wall for a low-profile appearance
  • Quick, easy cable management
  • Sleek, attractive design hides all hardware
  • Comes assembled for easy installation
  • Single stud wall mounting
  • VESA-compliant (100 x 100mm, 200 x 100mm, 200 x 200mm and 400 x 200mm patterns)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Centris Fingertip Tilt provides smooth tilt adjustment in all directions
  • Teardrop hole pattern makes mounting the screen quick and easy
  • Portrait and landscape screen installation
  • Smooth extension to achieve ideal viewing angle
  • Independently adjustable tension at pivot points for customized control
  • Folds in close to the wall for a low-profile appearance

What's in the box:

  • Chief JWDV Medium Flat Panel Swing Arm Wall Mount
  • J-Series Wall Plate
  • Cable Management Covers (2)
  • 3/8" x 3" Hex Head Lag Screws (2)
  • 8-32 x 3/8" Phillips Flat Machine Screws (4)
  • Chief Warranty
