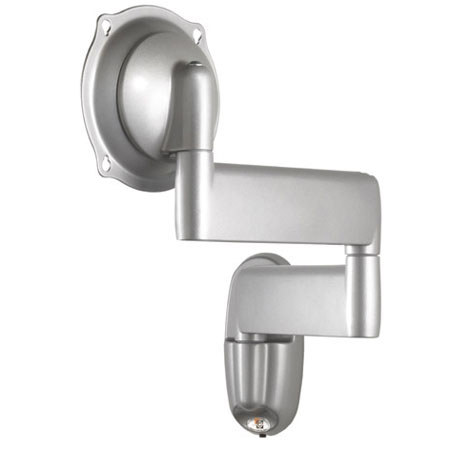

Chief JWDV Universal Flat Panel Dual Swing Arm Wall Mount, Silver
See all Chief items

Chief JWDV Universal Flat Panel Dual Swing Arm Wall Mount, 20" Extension, 75 lbs Load Capacity, Silver

SKU: CHJWDVS

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Chief JWDV Specifications

  • Orientation

    Landscape, Portrait

  • Maximum Extension

    20.38" (517.7mm)

  • Minimum Depth

    2.69" (68.3mm)

  • Mounting Pattern Compatibility

    100 x 100mm (3.93 x 3.93"),200 x 100mm(7.87 x 3.93"), 200 x 200mm(7.87 x 7.87"), 400 x 200mm (15.74 x 7.87") Universal Versions

  • Post-Installation Leveling (Roll)

    Yes

  • Solution Type

    Universal

  • Tilt

    + 15deg., - 15deg.

  • Typical Screen Sizes

    26 - 45" (660.4 - 1143mm)

  • Wall Stud Compatibility

    Single Stud

  • Load Capacity

    75 lbs (34.kg)

  • Dimensions (H x W x D)

    14.7" x 12.1" x 2.7" (373.3 x 307.3 x 68.5mm)

  • UPC Code

    841872064093

About Chief JWDV

The Chief JWDV Universal Flat Panel Dual Swing Arm Wall Mount (Silver) provides a broad range of motion for viewing 26-45" medium flat panel LCD TVs and monitors up to 75 lbs from multiple angles. It features easy installation and ultra smooth adjustment for viewing flexibility, folds in close to the wall for a low-profile appearance and has built-in cable management for a clean installation. The JWDV includes a VESA interface bracket making it compatible with hundreds of flat panel displays from 26-45".

Chief JWDV Features

  • Centris Fingertip Tilt provides smooth tilt adjustment in all directions
  • Gravity-centered tilt self-adjusts to securely hold different display weights
  • Teardrop hole pattern makes mounting the screen quick and easy
  • Portrait and landscape screen installation
  • Smooth extension to achieve ideal viewing angle
  • Independently adjustable tension at pivot points for customized control
  • Folds in close to the wall for a low-profile appearance
  • Quick, easy cable management
  • Sleek, attractive design hides all hardware
  • Ships assembled
  • Single stud wall mounting
  • Universal models available for VESA 100 x 100 mm up to 400 x 400mm mounting patterns
  • MSB interface bracket can be sold separately for non-VESA compatible screens

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Centris Fingertip Tilt provides smooth tilt adjustment in all directions
  • Teardrop hole pattern makes mounting the screen quick and easy
  • Portrait and landscape screen installation
  • Smooth extension to achieve ideal viewing angle
  • Independently adjustable tension at pivot points for customized control
  • Folds in close to the wall for a low-profile appearance

What's in the box:

  • Chief JWDV Universal Flat Panel Dual Swing Arm Wall Mount
  • J-Series Wall Plate
  • 2 x Cable Management Covers
  • 2 x 3/8 x 3 " Hex Head Lag Screws
  • 4 x 8-32 x 3/8 " Phillips Flat Machine Screws
  • Chief Warranty
