Chief KITAS003 Projector Ceiling Mount Kit, Black
See all Chief items

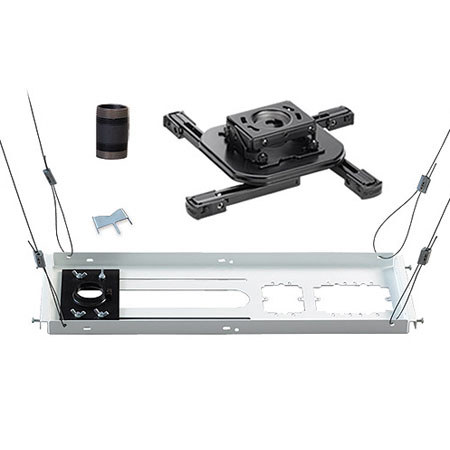

Chief KITAS003 Projector Ceiling Mount Kit, Includes RSAU RPA Projector Mount, CMS440 Above Tile Ceiling Kit & CMS003 3" Fixed Extension Column, Black

SKU: CHKITAS003
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Chief KITAS003 Specifications

  • RSAU: Adjustments

    Roll: 3deg.
    Pitch: 20deg.
    Yaw: 360deg.

  • Certifications

    CMS440: TUV Approved, UL Listed
    CMS003: TUV Approved, UL Listed

  • RSAU: Solution Type

    Universal

  • Load Capacity

    RSAU: 25 lbs (11.3 kg)
    CMS440: 50 lbs / 22.68 kg
    CMS003: 500 lbs / 226.80 kg

  • Dimensions (H x W x D)

    RSAU: 1.4" x 4.4" x 4.4" / 35.56 x 111.76 x 111.76 mm
    CMS440: 1.3" x 8" x 23.4" / 33.02 x 203.2 x 594.36 mm
    CMS003: 3" x 1.9" x 1.9" / 76.2 x 48.26 x 48.26 mm

  • UPC Code

    841872154657

About Chief KITAS003

The Chief KITAS003 Projector Ceiling Mount Kit (Black) includes RSAU Mini Universal RPA Projector Mount, CMS440 Speed-Connect Above Tile Suspended Ceiling Kit and CMS003 3" Fixed Extension Column. The RSAU features a universal interface that offers a compact design for smaller projectors with all the same great features as the standard RPA Series.

The CMS440 ceiling tile kit provides a host of features that make installing most lightweight front projectors faster and more secure. Chief also offers the CMS440P ceiling kit with built-in power conditioner and also the CMS440N with an assembled electrical housing. This CMS003 Speed-Connect Fixed Extension Column lowers projectors to the desired height.

Chief KITAS003 Features

  • RSAU: Compact design is smaller than the RPA by 1/3 and includes the same great features
  • RSAU: Independent roll, pitch and yaw for quick and precise projector registration
  • RSAU: Quick connect/disconnect with convenient lamp and filter access on most projectors
  • RSAU: Disconnecting maintains registration and doesn't affect preset adjustments
  • RSAU: All-Points Security steel-into-steel locking hardware at all connection points protects against theft
  • RSAU: Multiple installation options including: flush mount to ceiling, use 0.25" threaded rods, or use a 1.5" NPT column
  • CMS003: Aluminum extension column features easy installation and maximum strength
  • CMS003: Consists of 1.5" NPT column, threaded on both ends
  • CMS003: Use in combination with any Chief 1.5" NPT ceiling plate or other accessory
  • CMS440: WireVice Cable Suspension System for quick and easy tie-off
  • CMS440: TwisTile Ceiling Tile Cutter easily pierces a circular hole in the ceiling tile for extension column
  • CMS440: Flexible solution provides infinite column placement within a 2' x 2' or 2' x 4' ceiling tile
  • CMS440: Single and dual electrical outlet cutouts
  • CMS440: All-Points Security System provides exclusive locking hardware at column connection point to protect against theft
  • CMS440: Fits 24" (600 mm) wide ceiling tile grids
  • CMS440: 1.5" NPT compatible

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • CMS440: 1.5" NPT compatible

What's in the box:

  • Chief RSAU Mini Universal RPA Projector Mount
  • CMS440 Speed-Connect Above Tile Suspended Ceiling Kit
  • CMS003 3 " Fixed Extension Column
  • Chief Warranty
