Chief KITPB003 Projector Ceiling Mount Kit, Black
See all Chief items

Chief KITPB003 Projector Ceiling Mount Kit, Includes RPA Universal & Custom Projector Mounts, CMA455 Ceiling Tile, 3" Extension Column, Black

SKU: CHKITPB003
(1)

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2019-02-08T08:21:14

Rated 5 out of 5

1,2,3, done

Easy to install, extra secure, good quality, lots of hardware options included.

Jason C.

Chief KITPB003 Specifications

  • RPAU Mount: Adjustments

    Roll: 4deg.
    Pitch: 25deg.
    Yaw: 360deg.

  • RPAU Mount: Solution Type

    Universal

  • RPAU Mount: Load Capacity

    RPAU Mount: 50 lbs (22.7 kg)
    CMS003 Column: 500 lbs (226.8 kg)
    CMA455 Ceiling Tile: 250 lbs (113.4 kg)

  • Certifications

    RPAU Mount: UL Listed
    CMS003 Column: TUV Approved, UL Listed
    CMA455 Ceiling Tile: UL Listed

  • Dimensions (H x W x D)

    RPAU Mount: 1.8" x 6.5" x 5.5" (44 x 165 x 140 mm)
    CMS003 Column: 3.0" x 1.9" x 1.9" (76 x 48 x 48 mm)
    CMA455 Ceiling Tile: 1.1" x 23.8" x 23.8" (29 x 603 x 603 mm)

  • UPC Code

    841872154671

3 Accessories for Chief KITPB003 Projector Ceiling Mount Kit, Includes RPA Universal & Custom Projector Mounts, CMA455 Ceiling Tile, 3" Extension Column, Black

  • All Accessories (3)
  • Cable Management (1)
  • Gaffer Tape (2)
Adorama Pro-Gaff Gaffer Tape 1" x 55 Yards Black Single
Adorama Pro-Gaff Gaffer Tape 1" x 55 Yards Black Single
$12.90
Recommended
Rip-Tie 0.75" x 7" EconoWrap, 5/Pack, Black
Rip-Tie 0.75" x 7" EconoWrap, 5/Pack, Black
$7.50
Pro Tapes Gaffer Tape 60 Yards x 1" - Silver
Pro Tapes Gaffer Tape 60 Yards x 1" - Silver
$12.50

About Chief KITPB003

FEATURED REVIEWS

1,2,3, done

By Jason C.

Easy to install, extra secure, good quality, lots of hardware options included.

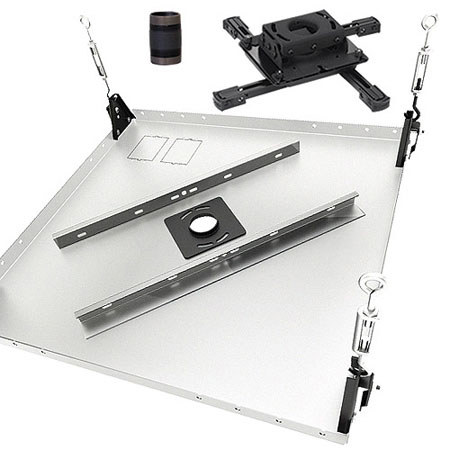

The Chief KITPB003 Projector Ceiling Mount Kit (Black) includes RPAU RPA Universal and Custom Projector Mounts, CMS003 3" Fixed Extension Column and CMA455 Suspended Ceiling Tile. The RPAU has all of the great features of the RPAO and even more. The Universal Projector Mount is coupled with the newly designed SLBU Universal Interface Bracket. The 2nd Generation Interface Technology has enhanced security and unlimited projector access.

The Speed-Connect Fixed Extension Column lowers projectors to the desired height. Suspended Ceiling Tile is designed to replace one 2' x 2' ceiling tile or to sit above the suspended ceiling.

Chief KITPB003 Features

  • RPAU Projector Mounts: Independent roll, pitch and yaw for quick and precise projector image registration
  • RPAU Projector Mounts: Quick projector connect and disconnect with convenient lamp and filter access on most projectors
  • RPAU Projector Mounts: Maintains registration when disconnected and doesn't affect preset adjustments
  • RPAU Projector Mounts: All-Points Security Systems provides exclusive steel into steel locking hardware at all connection points to protect against theft
  • RPAU Projector Mounts: Multiple installation options: flush mount to ceiling, 0.25" threaded rod, or 1.5" NPT threaded extension column
  • RPAU Projector Mounts: Integrated cable management through top of mount without additional accessories
  • CMS003 Extension Column: Aluminum extension column features easy installation and maximum strength
  • CMS003 Extension Column: Consists of 1.5" NPT column, threaded on both ends
  • CMS003 Extension Column: Use in combination with any Chief 1.5" NPT ceiling plate or other accessory
  • CMA455 Ceiling Tile: Quick installation without cutting any ceiling tiles
  • CMA455 Ceiling Tile: 2' x 2' plate is suspended and secured to the structure above with four tie wires

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • CMA455 Ceiling Tile

What's in the box:

  • Chief RPAU RPA Universal & Custom Projector Mounts
  • CMA455 Ceiling Tile
  • 3 " Extension Column
  • Chief Warranty
