Chief KITPB003 Projector Ceiling Mount Kit, White
See all Chief items

Chief KITPB003 Projector Ceiling Mount Kit, Includes RPAU Projector Mount, CMS003 3" Extension Column, CMA455 Ceiling Tile Replacement Kit, White

SKU: CHKITPB003W

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2019-02-08T08:21:14

Rated 5 out of 5

1,2,3, done

Easy to install, extra secure, good quality, lots of hardware options included.

Jason C.

Chief KITPB003 Specifications

  • RPAU: Adjustments

    Roll: 4deg.
    Pitch 25deg.
    Yaw 360deg.

  • Certifications

    RPAU: UL Listed
    CMS003: TUV Approved, UL Listed
    CMA455: UL Listed

  • Solution Type

    RPAU: Universal

  • Load Capacity

    RPAU: 50 lbs / 22.68 kg
    CMS003: 500 lbs / 226.80 kg
    CMA455: 250 lbs / 113.40 kg

  • Dimensions (H x W x D)

    RPAU: 1.8" x 6.5" x 5.5" / 45.72 x 165.1 x 139.7 mm
    CMS003: 3" x 1.9" x 1.9" / 76.2 x 48.26 x 48.26 mm
    CMA455: 1.1" x 23.8" x 23.8" / 27.94 x 604.52 x 604.52 mm

  • UPC Code

    841872154688

About Chief KITPB003

FEATURED REVIEWS

1,2,3, done

By Jason C.

Easy to install, extra secure, good quality, lots of hardware options included.

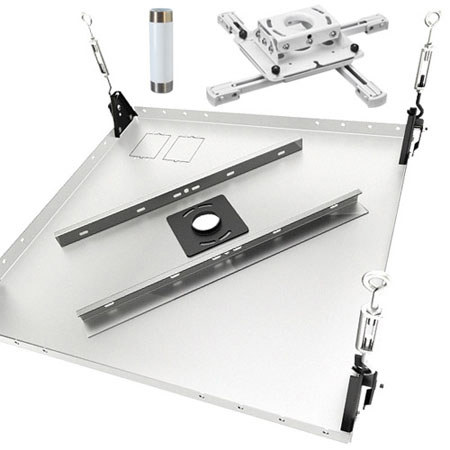

The Chief KITPB003 is a projector ceiling mounting kit which includes RPAUW Universal Projector Mount (2nd Generation Interface Technology, White), CMS003 3" Fixed Extension Column and CMA455 Suspended Ceiling Tile Replacement Kit.

The RPAU has all of the great features of the RPAO and even more. This Universal Projector Mount is coupled with the newly designed SLBU Universal Interface Bracket. This 2nd Generation Interface Technology has enhanced security and unlimited projector access.

The CMS003 3" Fixed Extension Column saves the installation time and maximize security with these fixed columns. The CMA455 Suspended Ceiling Tile Replacement Kit is designed to replace one 2' x 2' ceiling tile or to sit above the suspended ceiling.

Chief KITPB003 Features

  • RPAU: Independent roll, pitch and yaw for quick and precise projector image registration
  • RPAU: Quick projector connect and disconnect with convenient lamp and filter access on most projectors
  • RPAU: Maintains registration when disconnected and doesn't affect preset adjustments
  • RPAU: All-Points Security Systems provides exclusive steel into steel locking hardware at all connection points to protect against theft
  • RPAU: Multiple installation options: flush mount to ceiling, 0.25" threaded rod, or 1.5" NPT threaded extension column
  • RPAU: Integrated cable management through top of mount without additional accessories
  • CMS003: Aluminum extension column features easy installation and maximum strength
  • CMS003: Consists of 1.5" NPT column, threaded on both ends
  • CMS003: Use in combination with any Chief 1.5" NPT ceiling plate or other accessory
  • CMA455: Quick installation without cutting any ceiling tiles
  • CMA455: Comes with 10 ft (304.8 cm) safety cable, 20 ft (609.6 cm) strand wire, two outlet knockouts, four turnbuckles, wood eye bolts and concrete anchors
  • CMA455: 2' x 2' plate is suspended and secured to the structure above with four tie wires

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • RPAU

What's in the box:

  • Chief RPAU Universal Projector Mount
  • CMS003 3" Fixed Extension Column
  • CMA455 Suspended Ceiling Tile Replacement Kit
  • Chief Warranty
