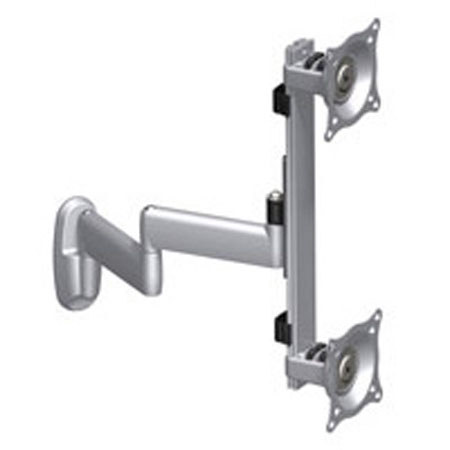

Chief KWD230 Dual Vertical Monitor Swing Arm Wall Mount, Silver
See all Chief items

Chief KWD230 Dual Vertical Monitor Swing Arm Wall Mount, 17 lbs Load Capacity, Silver

SKU: CHKWD230S
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Chief KWD230 Specifications

  • Number of Monitors

    2

  • Orientation

    Landscape, Portrait

  • Compatible with OFB Furniture Brackets

    Yes

  • Maximum Extension

    18.6" (472.4mm)

  • Minimum Depth

    5.93" (150.6mm)

  • Mounting Pattern Compatibility

    75 x 75mm / 2.95 x 2.95",100 x 100mm / 3.93 x 3.93" (Universal Versions)

  • Post-Installation Leveling (Roll)

    Yes

  • Solution Type

    Universal

  • Tilt

    + 15deg., - 15deg.

  • TV Height Range

    10 - 17.7" (254 - 450mm)

  • Typical Screen Sizes

    10 - 30" (254 - 762mm)

  • Wall Stud Compatibility

    Single Stud

  • Load Capacity

    17 lbs (7.7kg)

  • Dimensions (H x W x D)

    19.0" x 9.0" x 5.9" (482.6 x 228.6 x 149.8mm)

About Chief KWD230

The Chief KWD230 Dual Vertical Monitor Swing Arm Wall Mount (Silver) lets you mount the screens vertically and lock them in the same plane for viewing convenience. It is ideal for home and office installations of two flat panel displays (up to 17 lb per monitor).

The KWD230 includes a custom interface bracket making it compatible with VESA-compliant displays. However for non-VESA compliant displays, an FSB-series interface bracket might be required.

Chief KWD230 Features

  • Tool-free cable management covers for a clean, professional look

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Tool-free cable management covers

What's in the box:

  • Chief KWD230 Dual Vertical Monitor Swing Arm Wall Mount
  • Wall Mount
  • 2 x Phillips No. 10 x 2-1/2 " Pan Sheet Metal Screws
  • 2 x No. 10 Flat Machine Screw Washers
  • Chief Warranty
