Chief Fusion LCM4U LCM Large Ceiling Multi-Directional Solution, 85lbs Capacity Per Screen

SKU: CHLCM4U

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Chief LCM4U Specifications

  • Adjustments

    Roll, +/-3 deg.

  • Certifications

    UL Listed

  • Mounting Pattern Compatibility

    200 x 200mm - 600 x 400mm (Universal Versions)

  • Tilt

    +5 deg. , -20 deg.

  • Weight Capacity

    85lbs / 38.56kg per screen

  • Typical Screen Size

    32-60"

  • Dimensions (H x W x D)

    Overall: 18.7 x 56 x 56" / 474.98 x 1422.4 x 1422.4mm

  • UPC Code

    841872159751

About Chief LCM4U

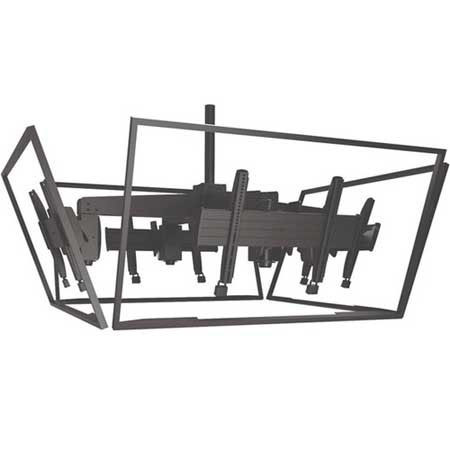

Chief's Fusion Ceiling Multi-Directional solutions create 360 viewing capability with a quad-mount system. The LCM4U safely supports multiple displays from a single column drop while maintaining the installer-friendly features of the single screen Fusion mounts.

Repeatability
Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.

Accessibility
Simple on/off connection for ease of installation and service.

Centris Fingertip Tilt
Effortlessly adjust display using Centris fingertip tilt technology.

Simple & Secure
Tool free screen engagement with optional padlock security.

Flexibility
Mount swivels to any preferred viewing angle.

Additional Features
• Ceiling Plate and Extension Column are required and must be ordered separately
• Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column system

What's in the box:

  • Chief LCM4U Quad Ceiling Accessory
  • Bottom Coupling
  • 10-24x1/4 " Set Screw
  • 8x Rotation Ring
  • 8x 5/16 " Nylon Tipped Set Screw
  • 10x Cable Zip Clip
  • 10x 5-1/2 " Cable Tie
  • 1/8 " Allen Wrench
  • 3/16 " Allen Wrench
  • Chief 10 Year Warranty
