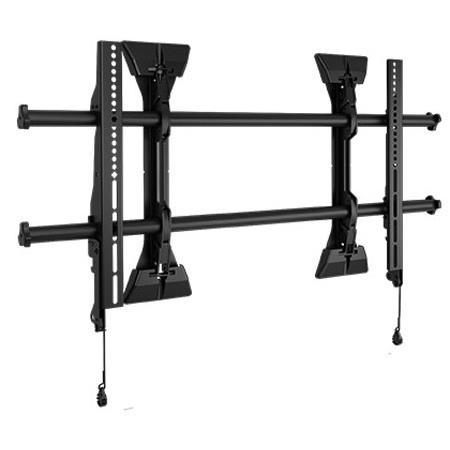

Chief LSM1U Large Fusion Micro-Adjustable Fixed Wall Mount
See all Chief items

Chief LSM1U Large Fusion Micro-Adjustable Fixed Wall Mount for 37 to 63" Displays

SKU: CHLSM1U

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Chief LSM1U Specifications

  • Compatibility

    37 to 63" Displays

  • Mount Type

    Fixed

  • Depth From Mounting Source

    2.0" / 5.08cm

  • Screen Size Range

    37 to 63" / 93.98 to 160.02cm

  • Adjustments

    17.4" / 44.20cm lateral shift
    1.0" / 2.54cm height adjustment
    Post-installation leveling

  • Universal Mounting Pattern (W x H)

    100 x 100mm / 3.94 x 3.94" to 870 x 400mm / 34.25 x 15.75"

  • Security Lock-Ready

    Padlock shackle for lock diameter =5/16" (7.9 mm)

  • Orientation

    Landscape

  • Wall Stud Compatibility

    16.0 to 32.0" / 40.64 to 81.28cm

  • Load Capacity

    200.00lbs / 90.72kg

  • Certifications

    UL Listed

  • Dimensions (H x W x D)

    18.25 x 34.75 x 2" / 46.36 x 88.27 x 5.08cm

  • UPC Code

    841872163260

About Chief LSM1U

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security. Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

Chief LSM1U Features

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • ControlZone Leveling for post-installation fine tuning of height and leveling
  • Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • ClickConnect offers an audible click when the screen safely engages
  • Built-in cable stand provides easy access under the screen
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps

What's in the box:

  • Chief LSM1U Large Fusion Micro-Adjustable Fixed Wall Mount
  • Mounting Hardware
  • Chief 10 Year Limited Warranty
