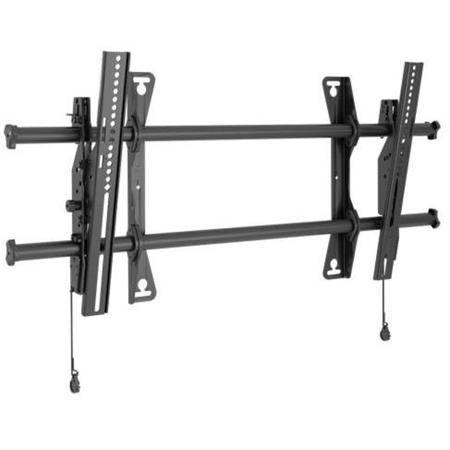

Chief LTA1U Large Fusion Tilt Wall Mount for 37 - 63" Displays
See all Chief items
31% Off

Chief LTA1U Large Fusion Tilt Wall Mount for 37 - 63" Displays

SKU: CHLTA1U MFR: LTA1U
Be the first to review this item
$184.95
$267.00
Save: $82.05 (31%)
Earn VIP Reward Points

Key Features

  • Achieve the perfect viewing angle with -12 to 2 degrees of tilt, ideal for any room setup.
  • Enjoy a clean look with integrated cable management, keeping your setup tidy and professional.
  • Mount your 37-63" display securely with a robust 200lbs load capacity, ensuring peace of mind.
  • Experience easy installation with a universal mounting pattern, fitting various wall stud configurations.
  • Optimize your display's position with 17.4" of lateral shift, perfect for flexible viewing.
  • Benefit from UL Listed certification, guaranteeing safety and reliability for your display mount.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Chief LTA1U Specifications

  • Compatibility

    37 - 63" Displays

  • Mount Type

    Tilt

  • Depth From Mounting Source

    2.0" / 5.08cm

  • Screen Size Range

    37.0 to 63.0" / 93.98 to 160.02cm
    Maximum Screen Depth: 6.0" (15.2 cm)

  • Adjustments

    17.4" / 44.20cm lateral shift
    -12 to 2 deg. tilt

  • Universal Mounting Pattern (W x H)

    100 x 100mm to 870 x 400mm / 3.94 x 3.94"to 34.25 x 15.75"

  • Security

    Padlock shackle for lock diameter =5/16" (7.9 mm)

  • Orientation

    Landscape

  • Wall Stud Compatibility

    16.0 to 32.0" / 40.64 to 81.28cm

  • Load Capacity

    200lbs / 90.72kg

  • Certifications

    UL Listed

  • Dimensions (H x W x D)

    16.5 x 34.75 x 2" / 41.91 x 88.27 x 5.08cm

  • UPC Code

    841872163727

About Chief LTA1U

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, Centris tilt and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security. Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

Chief LTA1U Features

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering
  • Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Achieve the perfect viewing angle with -12 to 2 degrees of tilt, ideal for any room setup.
  • Enjoy a clean look with integrated cable management, keeping your setup tidy and professional.
  • Mount your 37-63" display securely with a robust 200lbs load capacity, ensuring peace of mind.
  • Experience easy installation with a universal mounting pattern, fitting various wall stud configurations.
  • Optimize your display's position with 17.4" of lateral shift, perfect for flexible viewing.
  • Benefit from UL Listed certification, guaranteeing safety and reliability for your display mount.

What's in the box:

  • Chief LTA1U Large Fusion Tilt Wall Mount
  • Chief 10 Year Limited Warranty
