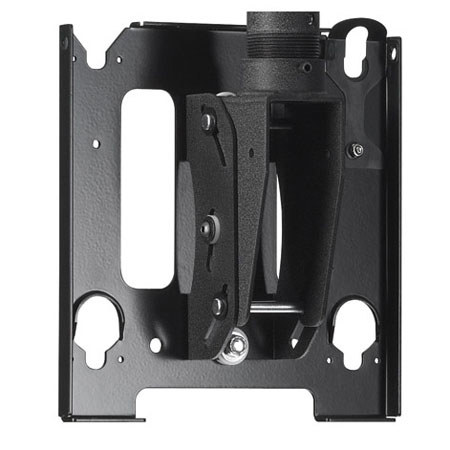

Chief MCSU Mid Size Flat Panel Ceiling Mount
See all Chief items

Chief MCSU Mid Size Flat Panel Ceiling Mount, 125 lbs Load Capacity

SKU: CHMCSU
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Chief MCSU Mid Size Flat Panel Ceiling Mount Specifications

  • Mounting Pattern Compatibility

    100 x 100mm - 709 x 431mm (Universal Versions)

  • Orientation

    Landscape, Portrait

  • Post-Installation Leveling (Roll)

    Yes

  • Solution Type

    Universal

  • Tilt

    + 5deg., - 20deg.

  • Typical Screen Sizes

    30 - 55" (76.2 - 139.7cm)

  • Certifications

    TUV Approved, UL Listed

  • Load Capacity

    125 lbs (56.7kg)

  • Dimensions (H x W x D)

    11.0" x 10.2" x 4.3" (279.4 x 259.08 x 109.2mm)

About Chief MCSU Mid Size Flat Panel Ceiling Mount

The Chief MCSU Mid Size Flat Panel Ceiling Mount is a straight column single ceiling mount for your flat panel display up to 55". The MCSU will support up to 125 lbs and is perfect for digital signage installations. With its Q-Latch mounting system for quick installations and integrated cable management, the MCSU is and ideal ceiling mount. The Centris Tilt Technology makes fingertip adjustments a breeze and integrated security feature makes this ideal for public signage.

Chief MCSU Mid Size Flat Panel Ceiling Mount Features

  • Centris Technology provides fingertip tilt
  • Screen angle can be tightened down for public applications
  • ClickConnect Technology provides simple, tool-free latching with an audible click!
  • Post-installation leveling with no tools needed
  • Q-Latch mounting system for quick connect/disconnect
  • Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen)
  • Integrated cable management through extension column

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Chief MCSU Mid Size Flat Panel Ceiling Mount
  • Mounting Hardware
  • Chief Warranty
