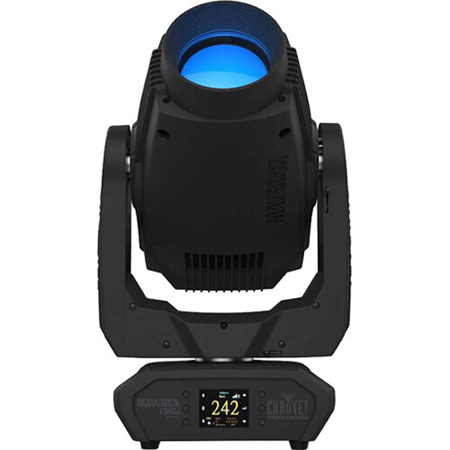

CHAUVET DJ Maverick Force 1 Spot 470W LED Moving Head Light Fixture with Gobos, Black

SKU: CHMF1S MFR: MAVERICKFORCE1SPOT
Earn VIP Reward Points

Key Features

  • Unleash vibrant lighting with the Maverick Force 1 Spot's dazzling color and gobo effects.
  • Achieve dynamic stage lighting with 540° pan and 270° tilt for full room coverage.
  • This LED moving head offers Art-Net/sACN control, integrating easily into existing setups.
  • Create stunning aerial effects using the motorized zoom and focus of this spot lighting.
  • Enjoy whisper-quiet operation, perfect for noise-sensitive environments with low fan noise.
  • Rugged construction ensures durability, making this moving head light ideal for touring DJs.
See More Product Details
Special Order?Estimated to Ship: 09/09/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

CHAUVET DJ Maverick Force 1 Spot Specifications

Optical

Optical

Jump to...
  • Light Source

    1 LED (CW) 470 W, (4 A), 7500K, 50,000 hours life expectancy

  • Color Temperature (at full)

    7099 K

  • CRI

    68.8

  • CRI with CRI Filter

    89.4

  • Front Lens Dia

    127mm

  • Beam Angle

    6.3 Degree to 45.7 Degree

  • Field Angle

    7.3 Degree to 53 Degree

  • Cutoff Angle

    7.6 Degree to 54.4 Degree

  • Zoom Range

    6.3 Degree to 54.4 Degree

  • Lumens

    Source: 35000
    Output: 21172

  • Illuminance

    6.3 Degree: 43,485 lux @ 5 m
    54.4 Degree: 1,793 lux @ 5 m

  • Selectable PWM

    600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Jump to...
  • Pan and Tilt Ranges

    Pan - 540 Degree, 360 Degree, 180 Degree
    Tilt - 270 Degree, 180 Degree, 90 Degree

  • Colors

    7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
    CMY+ CTO flags

  • Gobos

    Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
    Gobos (2): 9 + open (9 glass), static, continuous scroll at variable speeds

  • Gobo Size (1)

    Gobo Wheel 1 (rotating): 25.5 mm (outside), 20 mm (image), 1.1 mm (max. thickness)

  • Animation wheel

    Static, motorized, continuous scroll at variable speeds

  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Zoom

    Motorized

  • Focus

    Motorized

  • Frost

    Motorized

  • Iris

    Motorized

  • Prism

    5 Facets, motorized, rotating

  • Strobe Rate

    0 to 20 Hz

  • Move-in-Black

    Yes

  • Dim Curves

    4

Connections

Jump to...
  • Power Connection

    Edison plug to Seetronic Powerkon IP65

  • Power Input

    Seetronic Powerkon IP65

  • Data Connectors

    3- and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out

  • Cable Length

    Power: 5' (1.5m)

Control

Jump to...
  • Control Protocol

    Art-Net, sACN, DMX, W-DMX

  • DMX Channels

    25 or 32

  • Art-Net Channels

    25 or 32

  • Modes/Personalities

    2 personalities (25, 32)

Electrical

Jump to...
  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    670 W, 6.70 A @ 100 V, 60 Hz
    660 W, 5.45 A @ 120 V, 60 Hz
    637 W, 3.10 A @ 208 V, 60 Hz
    632 W, 2.79 A @ 230 V, 50 Hz
    630 W, 2.70 A @ 240 V, 50 Hz

    Resting:
    80 W, 0.801 A @ 100 V, 60 Hz
    80 W, 0.665 A @ 120 V, 60 Hz
    84 W, 0.397 A @ 208 V, 60 Hz
    84 W, 0.356 A @ 230 V, 50 Hz
    89 W, 0.361 A @ 240 V, 50 Hz

  • Power Linking 13.6A

    2 @100v, 2 @120v, 4@208V, 4@230v, 5@240v

Certifications / Qualifications

Jump to...
  • Certifications

    CE, MET, FCC

  • IP Rating

    IP20, dry location

  • Noise Level

    Ambient: 37 dB level @ 1 m
    Static - Full: 47.3 dB level @ 1 m
    Static - Eco: 40.7 dB level @ 1 m
    Static - Auto: 40.9 dB level @ 1 m
    Max: 49.5 dB level @ 1 m

  • Temperature

    Startup: -4 Degree F to 113 Degree F (-20 Degree C to 45 Degree C)
    Operating: -22 Degree F to 113 Degree F (-30 Degree C to 45 Degree C)

Construction/Physical

Jump to...
  • Color

    Exterior: Black

  • Material

    High-impact flame-retardant polymer

  • Dimensions

    15.5 x 9.8 x 25" (394 x 250 x 636mm)

  • Weight

    48 lbs (21.8kg)

  • UPC Code

    781462220440

About CHAUVET DJ Maverick Force 1 Spot

Overwhelm your audience with the dynamic and captivating lighting effects of the Maverick Force 1 Spot 470W LED Moving Head Light Fixture with Gobos. This durable and high-quality stage lighting powerhouse boasts an impressive 20,000-lumen output, ensuring your performances are bathed in brilliant and vivid illumination. Despite its powerful capabilities, the Maverick Force 1 Spot maintains a sleek and compact frame, weighing just under 50lbs, making it an ideal choice for touring and mobile setups.

The Maverick Force 1 Spot is engineered for versatility and advanced lighting design, featuring CMY + CTO color-mixing technology that allows for a seamless blend of colors. Additionally, a dedicated color wheel is equipped with a CTB (Color Temperature Blue) and a high CRI (Color Rendering Index) option, enhancing the natural appearance of objects on stage. The fixture's extensive zoom range, spanning from 7 to over 50 degrees, maintains a flat field of focus across the entire zoom spectrum, ensuring consistent and sharp projections.

For precise beam shaping, the Maverick Force 1 Spot includes motorized iris, focus, zoom, and frost capabilities, complemented by a 5-facet rotating prism that adds dimension and texture to your lighting effects. The fixture's custom glass gobos, designed in collaboration with leading industry designers, provide unique and intricate patterns that can be layered with a continuous animation wheel for complex and dynamic visual displays.

Control is at your fingertips with a variety of protocols, including DMX, sACN, Art-Net, or W-DMX, offering flexibility for integration into any existing lighting rig. The Maverick Force 1 Spot 470W LED Moving Head Light Fixture with Gobos is a testament to powerful, high-quality lighting, making it an unparalleled choice for live performances, theater productions, and dance events where exceptional stage lighting is paramount.

CHAUVET DJ Maverick Force 1 Spot Features

  • Fully featured, compact and lightweight 470 W LED yoke spot fixture including CMY + CTO color mixing, a color wheel, zoom optics, and two gobo wheels, one rotating, and one static, and an animation wheel
  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY + CTO color mixing system to create a wide pallet of colors
  • CRI and CTB filters on color wheel for added flexibility
  • DMX, WDMX, sACN, and Art-Net for full flexibility of control options
  • RDM enabled for remote addressing and trouble shooting
  • 6.3 Degree to 54.4 Degree zoom range for variable beam sizes
  • Iris, 5-facet prism, and frost for beam control
  • True 1 compatible power input
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
  • USB slot for software uploads
  • Battery backup display with auto-rotate depending on fixture orientation

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Unleash vibrant lighting with the Maverick Force 1 Spot's dazzling color and gobo effects.
  • Achieve dynamic stage lighting with 540° pan and 270° tilt for full room coverage.
  • This LED moving head offers Art-Net/sACN control, integrating easily into existing setups.
  • Create stunning aerial effects using the motorized zoom and focus of this spot lighting.
  • Enjoy whisper-quiet operation, perfect for noise-sensitive environments with low fan noise.
  • Rugged construction ensures durability, making this moving head light ideal for touring DJs.

What's in the box:

  • CHAUVET Professional Maverick Force 1 Spot 470W LED Moving Head Light Fixture with Gobos (Black)
  • Seetronic Powerkon IP65 Power Cord
  • 2x Omega Brackets with Mounting Hardware
  • User Manual
  • CHAUVET Professional 2 Year Limited Warranty
