ChamSys MagicQ Mini Wing Specifications

Hardware

Hardware

Jump to...
  • Faders

    10

  • Direct DMX 512 Ports

    1

  • Security Lock Fixing

    1

  • Power Supply

    USB powered

Software

Jump to...
  • Universes

    64

  • Max Number of Channels

    32768

  • Max Number of Fixtures Supported

    32768

  • Max Number of Cues

    5000

  • Max Number of Cue Stacks

    2000

  • Max Number of Palettes

    4096

  • Max Number of Groups

    5000

  • Number of Media Server support

    50 (Each different content)

Physical

Jump to...
  • Dimensions (W x D x H)

    10.24 x 7.24 x 1.97" (260 x 184 x 50mm)

  • Weight

    4.41 lbs (2kg)

  • UPC Code

    781462216849

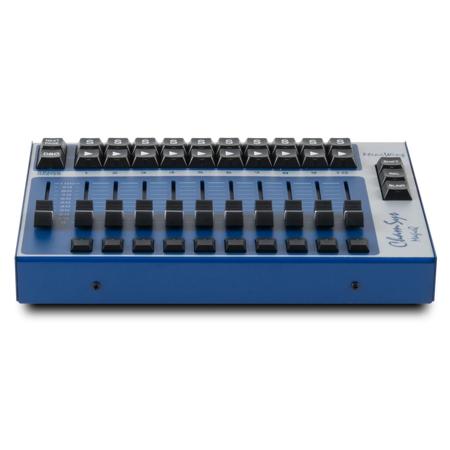

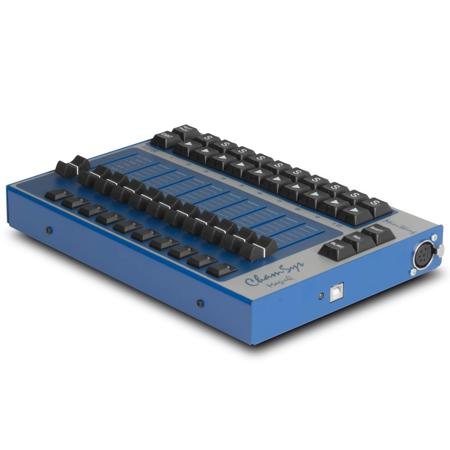

About ChamSys MagicQ Mini Wing

The MagicQ Mini Wing is a lightweight and portable USB control wing, that allows the user to have physical playback control over their show. The Mini Wing is compatible with Windows, OSX or Linux computers, coupled with the powerful MagicQ software.

Working through USB connection for power and data, the Mini Wing turns your computer that is running the MagicQ software into a powerful engine for controlling lighting, video and LEDs. The software is free and with the Mini Wing's single DMX output port, and 64 universes enabled for output over Ethernet, even large shows can be realised with a small amount of space and a modest investment of computer equipment.

The MagicQ Mini Wing provides a powerful PC based wing solution, ideal for theatres, clubs, and venues installations. It also provides a cost-effective backup solution for customers who have larger MagicQ consoles, controlling lighting, video and LEDs. It combines the power of the MagicQ software with real faders and button.

MagicQ Software
MagicQ software offers powerful lighting control, full lighting visualisation, pixel mapping, and HD media playback that lighting designers rely on for everything from simple to the most complex shows.

ChamSys MagicQ Mini Wing Features

  • 10 Playbacks
  • USB Powered
  • Connects to Free MagicQ Software - PC, Mac or Linux
  • 1 Direct DMX Output
  • Kensington Lock Slot
  • Lightweight Durable Case
  • 64 Universes via Artnet/sACN
  • Designed and manufactured in the UK

Key Features

  • 10 Playbacks
  • USB Powered
  • Connects to Free MagicQ Software - PC, Mac or Linux
  • 1 Direct DMX Output
  • Kensington Lock Slot
  • Lightweight Durable Case

What's in the box:

  • ChamSys MagicQ Mini Wing DMX Lighting Control Console
  • USB A-B Cable
  • Carry Case
  • ChamSys 2 Year Limited Warranty
