CHAUVET DJ Maverick MK3 Profile: Picture 1 thumbnail
Maverick MK3 Spot & Maverick MK3 Profile | CHAUVET Professional
1 video

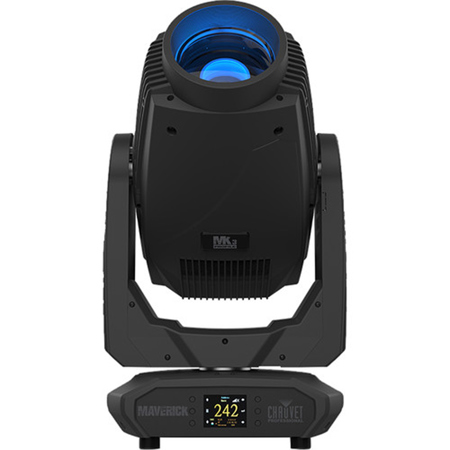

CHAUVET Professional Maverick MK3 Profile 820W LED Moving Head Light Fixture
See all CHAUVET DJ items

CHAUVET DJ Maverick MK3 Profile 820W LED Moving Head Light Fixture with Gobos, Black

SKU: CHMMK3P
Be the first to review this item

This item is no longer available.

Recommended Alternatives

CHAUVET DJ Intimidator Spot 360X IP: Picture 1 regular
CHAUVET DJ Intimidator Spot 360X IP 100W LED Moving Head Light Fixture
$2,000.00$1,499.99
CHAUVET DJ Intimidator Spot 110: Picture 1 regular
CHAUVET DJ Intimidator Spot 110 10W LED Moving Head Light Fixture
$320.00$239.99
CHAUVET DJ Intimidator Spot 160: Picture 1 regular
CHAUVET DJ Intimidator Spot 160 32W LED Moving Head Light Fixture
$768.00$539.99
CHAUVET DJ Maverick Storm 2 BeamWash: Picture 1 regular
CHAUVET DJ Maverick Storm 2 BeamWash 580W RGBW LED Moving-Head Light Fixture
$6,535.00$5,430.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CHAUVET DJ Maverick MK3 Profile Specifications

Optical

Optical

Jump to...

  • Light Source

    1 LEDs (CW) 820 W, (24 A), 7,258 K, 50,000 hours life expectancy

  • Color Temperature (at full)

    7,441 K

  • Front lens diameter

    147mm

  • CRI

    74.1

  • CRI W/Filter

    91.2

  • TLCI

    50.9

  • Beam Angle

    5.9 Degree to 52.7 Degree

  • Field Angle

    7.6 Degree to 61.4 Degree

  • Zoom Range

    5.9 Degree to 64.1 Degree

  • Cutoff Angle

    8.1 Degree to 64.1 Degree

  • Lumens

    Source: 51000
    Output: 23000

  • Illuminance

    5.9 Degree : 58,869 lux @ 5 m
    52.7 Degree : 1,860 lux @ 5 m

  • Selectable PWM

    600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

Dynamic Effects

Jump to...

  • Pan and Tilt Ranges

    Pan - 540 Degree, 360 Degree, 180 Degree
    Tilt - 270 Degree, 180 Degree, 90 Degree

  • Colors

    6 + white, split colors, continuous scroll at variable speeds
    CMY flags, CTO flag, CRI filter, color correction

  • Gobos

    Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
    Gobos (2): 9 + open (9 glass), continuous scroll at variable speeds

  • Effect Wheel

    1 effect

  • Framing Shutters

    Yes

  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Zoom

    Motorized

  • Focus

    Motorized

  • Frost

    Frost 1: Light Frost - Motorized
    Frost 2: Medium Frost - Motorized

  • Iris

    Motorized

  • Prism

    5 linear facets, motorized, rotating
    5 Circular facets, motorized, rotating

  • Strobe Rate

    0 to 25 Hz

  • Move-in-Black

    Yes

  • Dim Curves

    5

Connections

Jump to...

  • Power Connection

    Edison plug to Seetronic Powerkon IP65

  • Power Input

    Seetronic Powerkon IP65

  • Data Connectors

    3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out

  • Cable Length

    Power: 5' (1.5m)

Control

Jump to...

  • Control Protocol

    Art-Net, DMX, W-DMX, sACN, RDM

  • DMX Channels

    38 or 54

  • Art-Net Channels

    38 or 54

  • Modes/Personalities

    2 personalities (38, 54)

Electrical

Jump to...

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    1,230 W, 10.34 A @ 120 V, 60 Hz
    1,190 W, 5.81 A @ 208 V, 60 Hz
    1,180 W, 5.24 A @ 230 V, 50 Hz

    Resting:
    120 W, .98 A @ 120 V, 60 Hz
    126 W, .60 A @ 208 V, 60 Hz
    127 W, .55 A @ 230 V, 50 Hz

  • Breaker Size

    F20 A, 250 V

Certifications / Qualifications

Jump to...

  • Certifications

    CE, MET, FCC

  • IP Rating

    IP20, dry location

  • Noise Level

    Ambient: 36.5 dB level @ 1 m
    Full: 62.1 dB level @ 1 m
    Eco: 43 dB level @ 1 m

  • Temperature (Ambient)

    -4 Degree F to 113 Degree F (-20 Degree C to 45 Degree C)

Construction/Physical

Jump to...

  • Color

    Exterior: Black

  • Material

    High-impact flame-retardant polymer

  • Dimensions

    16.10 x 12.20 x 29.43" (409 x 310 x 748mm)

  • Weight

    76.4 lbs (34.7kg)

Other

Jump to...

  • UPC Code

    781462219017

About CHAUVET DJ Maverick MK3 Profile

Maverick MK3 Profile features a searing output of over 51,000 source lumens and an advanced, 4-blade shutter frame system with the ability to fully blackout and a 120 Degree rotation. Its precision LED optics feature CMY + CTO color mixing and a fast 9:1 zoom ratio that maintains a flat field of focus even when fully wide. It also has an adjustable CRI from 74 to 93 CRI for use as a key light for broadcasted events.

Maverick MK3 Profile offers great static, rotating, and animation effects from its 2 gobo wheels (1 rotating, 1 static), animation wheel, 2 independent and overlapping prisms and 2 frost options: superlight and medium. Control as you see fit with DMX, sACN, Art-Net or W-DMX.

CHAUVET DJ Maverick MK3 Profile Features

  • Fully featured 820 W LED yoke profile fixture including CMY+CTO color mixing, a four blade framing shutter system with rotation, a color wheel, a CRI filter, animation wheel, a 9:1 zoom, two independently layerable prisms, two frosts, a static and a rotating gobo wheel
  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY + CTO color mixing system to create a wide pallet of colors
  • Independently layerable 5 facet linear and 5 facet round prisms for increased prism options
  • One rotating and one static gobo wheel for dynamic texture possibilities
  • Independent light and medium frosts for beam control
  • + or - 60 degree rotation framing shutter system to allow for better framing positioning
  • Animation wheel for enhanced visual effects
  • Iris for total beam control
  • RDM control over DMX for fixture reporting
  • 5.9 Degree to 64.1 Degree zoom range for variable beam sizes
  • 3 menu presets and preset cross load for decreased shop setup time
  • True 1 compatible power input
  • Battery backup display with auto-rotate depending on fixture orientation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Independently layerable 5 facet linear and 5 facet round prisms for increased prism options
  • One rotating and one static gobo wheel for dynamic texture possibilities
  • Independent light and medium frosts for beam control
  • + or - 60 degree rotation framing shutter system to allow for better framing positioning
  • Animation wheel for enhanced visual effects
  • Iris for total beam control

What's in the box:

  • CHAUVET Professional Maverick MK3 Profile 820W LED Moving Head Light Fixture with Gobos (Black)
  • Seetronic Powerkon IP65 Power Cord
  • 2x Omega Brackets with Mounting Hardware
  • User Manual
  • CHAUVET Professional 2 Year Limited Warranty
