CHAUVET DJ Maverick MK3 Spot Specifications

Optical

Optical

Jump to...
  • Light Source

    1 LEDs (CW) 820 W, (24 A), 7,472 K, 50,000 hours life expectancy

  • Color Temperature (at full)

    7,207 K

  • Front lens diameter

    147 mm

  • CRI

    73.8

  • CRI W / Filter

    93.2

  • Beam Angle

    6.1 Degree to 52.1 Degree

  • Field Angle

    7.6 Degree to 60.5 Degree

  • Zoom Range

    6.1 Degree to 62 Degree

  • Cutoff Angle

    8.1 Degree to 62 Degree

  • Lumens

    Source: 51,000
    Output: 22,000

  • Illuminance

    7.6 Degree : 56,945 lux @ 5 m
    60.5 Degree : 1,920 lux @ 5 m

  • Illuminance w / CRI filter

    7.6 Degree : 39,011 lux @ 5 m
    60.5 Degree : 1242 lux @ 5 m

  • Selectable PWM

    600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz

Dynamic Effects

Jump to...
  • Pan and Tilt Ranges

    Pan - 540 Degree, 360 Degree, 180 Degree
    Tilt - 270 Degree, 180 Degree, 90 Degree

  • Colors

    6 + white, split colors, continuous scroll at variable speeds
    CMY flags, CTO flag, CRI filter, color correction

  • Gobos

    Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
    Gobos (2): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
    Gobos (3): 8 + open (8 metal), 2 rotating, 1 static gobo wheel.

  • Gobo Size

    Gobo Wheel 1 (Rotating): 30 mm (outside), 23 mm (image), 1.1 mm (max. thickness)
    Gobo Wheel 2 (Rotating): 30 mm (outside), 21 mm (image), 1.1 mm (max. thickness)
    Gobo Wheel 3 (Static): 160 mm (outside), 22 mm (image), 0.8 mm (max. thickness)

  • Effect Wheel

    1 effects

  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Zoom

    Motorized

  • Focus

    Motorized

  • Frost

    Frost 1: Light Frost - Motorized
    Frost 2: Medium Frost - Motorized

  • Iris

    Motorized

  • Prism

    5 Linear facets, motorized, rotating
    5 Circular facets, motorized, rotating

  • Strobe Rate

    0 to 25 Hz

  • Move-in-Black

    Yes

  • Dim Modes

    5

Connections

Jump to...
  • Power Connection

    Edison plug to Seetronic Powerkon IP65

  • Power Input

    Seetronic Powerkon IP65

  • Data Connectors

    3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out

  • Cable Length

    Power: 5' (1.5m)

Control

Jump to...
  • Control Protocol

    Art-Net, DMX, W-DMX, RDM, sACN

  • DMX Channels

    31 or 39

  • Art-Net Channels

    31 or 39

  • Modes/Personalities

    2 personalities (31, 39)

Electrical

Jump to...
  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    1180 W, 9.90 A @ 120 V, 60 Hz
    1160 W, 5.60 A @ 208 V, 60 Hz
    1150 W, 5.04 A @ 230 V, 50 Hz

Certifications / Qualifications

Jump to...
  • Certifications

    CE, MET, FCC

  • IP Rating

    IP20, dry location

  • Temperature (Ambient)

    -4 Degree F to 113 Degree F (-20 Degree C to 45 Degree C)

Construction/Physical

Jump to...
  • Color

    Exterior: Black

  • Material

    High-impact flame-retardant polymer, Steel

  • Dimensions

    16.10 x 11.92 x 29.76" (409 x 303 x 756mm)

  • Weight

    72.9 lbs (33kg)

  • UPC Code

    781462219079

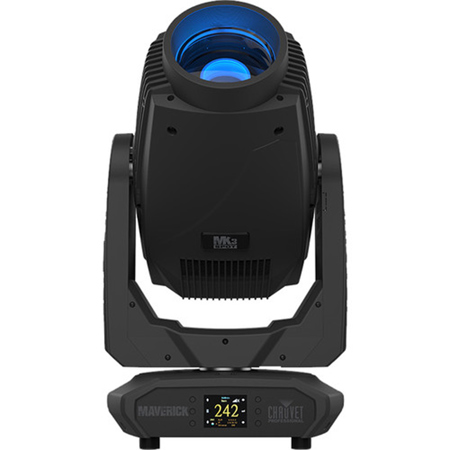

About CHAUVET DJ Maverick MK3 Spot

Maverick MK3 Spot features a searing output of over 51,000 source lumens and a fully-loaded artillery of awesome effects. Its precision LED optics feature CMY + CTO color mixing and a fast 9:1 zoom ratio that maintains a flat field of focus even when fully wide. The powerful unit also has an adjustable CRI from 73 to 93 CRI. Maverick MK3 Spot provides impressive static, rotating, and animation effects from its 3 gobo wheels (2 rotating, 1 static), animation wheel, 2 independent and overlapping prisms and 2 frost options: superlight and medium. Control as you see fit with DMX, sACN, Art-Net or W-DMX.

CHAUVET DJ Maverick MK3 Spot Features

  • Fully featured 820W LED yoke spot fixture including CMY+CTO Color Mixing, a color wheel, a CRI filter, animation wheel, a 9:1 zoom, two independently layerable prisms, two frosts, a static and 2 rotating gobo wheels
  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY + CTO color mixing system to create a wide palette of colors
  • Independently layerable 5 facet linear and 5 facet round prisms for increased prism options
  • Two rotating and one static gobo wheel for maximum dynamic texture possibilities
  • Independent light and medium frosts for beam control
  • Animation wheel for enhanced visual effects
  • Iris for total beam control
  • RDM control over DMX for fixture reporting
  • 6.1 Degree to 62 Degree zoom range for variable beam sizes
  • 3 menu presets and preset cross load for decreased shop setup time
  • True 1 compatible power input
  • Battery backup display with auto-rotate depending on fixture orientation

Key Features

  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY + CTO color mixing system to create a wide palette of colors
  • Independently layerable 5 facet linear and 5 facet round prisms for increased prism options
  • Two rotating and one static gobo wheel for maximum dynamic texture possibilities
  • Independent light and medium frosts for beam control
  • Animation wheel for enhanced visual effects

What's in the box:

  • CHAUVET Professional Maverick MK3 Spot 820W LED Moving Head Light Fixture with Gobos (Black)
  • Seetronic Powerkon IP65 Power Cord
  • 2x Omega Brackets with Mounting Hardware
  • User Manual
  • CHAUVET Professional 2 Year Limited Warranty
