CHAUVET DJ Maverick Storm 1 Spot Specifications

Optical

Optical

Jump to...
  • Light Source

    1 LEDs (CW) 480 W, 6604 K, 50,000 hours life expectancy

  • Color Temperature (at full)

    6604 K

  • CRI

    69

  • Front Lens Diameter

    132 mm

  • TLCI

    46.8

  • Beam Angle

    7 Degree to 42 Degree

  • Field Angle

    8 Degree to 48 Degree

  • Cutoff Angle

    9.2 Degree to 51 Degree

  • Zoom Range

    7.1 Degree to 51 Degree

  • Lumens

    Source: 32,000
    Output: 14,500

  • Illuminance

    8 Degree : 28,829 lux @ 5 m
    48 Degree : 1,528 lux @ 5 m

  • Selectable PWM

    600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

Dynamic Effects

Jump to...
  • Pan and Tilt Ranges

    Pan - 540 Degree, 360 Degree, 180 Degree
    Tilt - 270 Degree, 180 Degree, 90 Degree

  • Colors

    7 + white, split colors, continuous scroll at variable speeds
    CMY flags, CTO flag

  • Gobos

    Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
    Gobos (2): 8 + open (8 metal), rotating, continuous scroll at variable speeds

  • Gobo Size

    Gobo Size (1): Gobo Wheel 1 (rotating): 30 mm (outside), 25 mm (image), 1.1 mm (max. thickness)
    Gobo Size (2): Gobo Wheel 2 (rotating): 160 mm (outside), 23 mm (image), 0.8 mm (max. thickness)

  • Effect Wheel

    1 effect

  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Zoom

    Motorized

  • Focus

    Motorized

  • Frost

    Frost 1: Light Frost - Motorized
    Frost 2: Medium Frost - Motorized

  • Iris

    Motorized

  • Prism

    3 Facets, motorized, rotating

  • Strobe Rate

    0 to 20 Hz

  • Move-in-Black

    Yes

  • Dim Curves

    4

Connections

Jump to...
  • Power Connection

    Edison plug to Seetronic Powerkon IP65

  • Power Input

    Seetronic Powerkon IP65

  • Data Connectors

    5-pin IP rated, Neutrik IP rated RJ45 Connectors in/out

  • Cable Length

    Power: 5' (1.5m)

Control

Jump to...
  • Control Protocol

    Art-Net, DMX, W-DMX, RDM, sACN

  • DMX Channels

    26 or 33

  • Art-Net Channels

    26 or 33

  • Modes/Personalities

    2 personalities (26, 33)

Electrical

Jump to...
  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power Linking

    2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V

  • Power and Current

    700 W, 5.82 A @ 120 V, 60 Hz [11 A inrush]
    705 W, 3.32 A @ 208 V, 60 Hz [15 A inrush]
    704 W, 2.97 A @ 230 V, 50 Hz [14 A inrush]

    Resting:
    112 W, 0.93 A @ 120 V, 60 Hz
    125 W, 0.57 A @ 208 V, 60 Hz
    120 W, 0.48 A @ 230 V, 50 Hz

Certifications / Qualifications

Jump to...
  • Certifications

    CE, MET, FCC

  • IP Rating

    IP65

  • Noise Level

    Ambient: 36.9 dB level @ 1 m
    Full: 61.3 dB level @ 1 m
    Eco: 55.5 dB level @ 1 m

  • Temperature (Ambient)

    14 Degree F to 104 Degree F (-10 Degree C to 40 Degree C)

Construction/Physical

Jump to...
  • Color

    Exterior: Black

  • Material

    High-impact flame-retardant polymer

  • Dimensions

    17.91 x 12.56 x 28.43" (455 x 319 x 722mm)

  • Weight

    85.8 lbs (38.9kg)

  • UPC Code

    781462219109

About CHAUVET DJ Maverick Storm 1 Spot

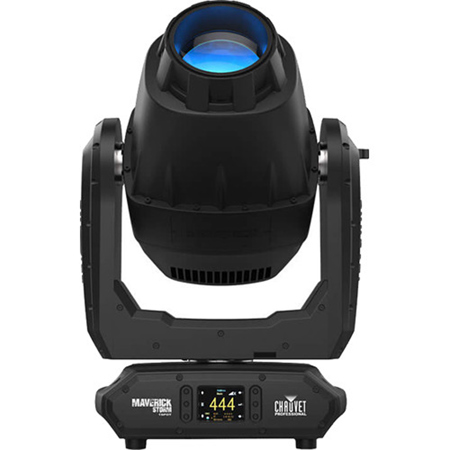

Maverick Storm 1 Spot is a powerful, IP65-rated Cool White LED moving head that compliments the Maverick Storm 1 Wash perfectly. The outdoor-ready unit features a compact and rugged die-cast aluminum housing built with marine grade stainless steel screws to withstand even the harshest elements. With an output of just over 14,500 lumens, its customized optics feature variable CMY + CTO color mixing and a massive zoom range. A rotating and static gobo wheel, 5-facet motorized and rotating prism, animation wheel, light and medium frosts, and iris create killer visual effects. The RDM-enabled unit features 16-bit dimming and can be controlled via DMX, W-DMX, sACN, and Art-Net.

CHAUVET DJ Maverick Storm 1 Spot Features

  • Fully featured IP 65 Rated 480W LED yoke spot fixture including CMY+CTO color mixing, a color wheel, animation wheel, 6.5:1 zoom, a 5 facet prism, two frosts, a static and rotating gobo wheel, and a patent-protected sunshield optical protection system
  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY + CTO color mixing system to create a wide pallet of colors
  • 5 facet prism
  • Independent light and medium frosts for beam control
  • Animation wheel for enhanced visual effects
  • Iris for total beam control
  • RDM control over DMX for fixture reporting
  • 7.1 Degree to 51 Degree zoom range for variable beam sizes
  • 3 menu presets and preset cross load for decreased shop setup time
  • True 1 compatible power input
  • Battery backup display with auto-rotate depending on fixture orientation
  • Intergraded and controllable sunshield for protecting optical system when fixture is not in use

Key Features

  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY + CTO color mixing system to create a wide pallet of colors
  • 5 facet prism
  • Independent light and medium frosts for beam control
  • Animation wheel for enhanced visual effects
  • Iris for total beam control

What's in the box:

  • CHAUVET Professional Maverick Storm 1 Spot 480W LED Moving Head Light Fixture with Gobos (Black)
  • Seetronic Powerkon IP65 Power Cord
  • 2x Omega Brackets with Mounting Hardware
  • User Manual
  • CHAUVET Professional 2 Year Limited Warranty
