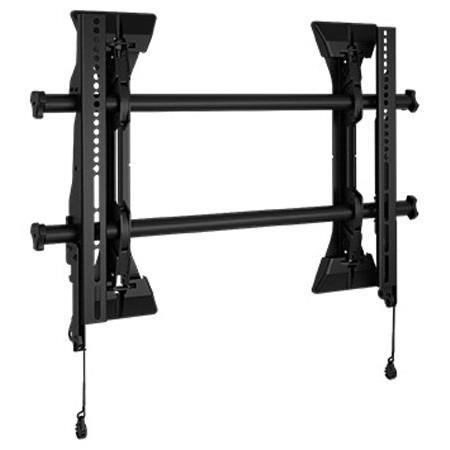

Chief Fusion Series MSM1U Micro-Adjust Fixed Wall Mount, Medium
See all Chief items

Chief Fusion Series MSM1U Micro-Adjust Fixed Wall Mount for 26 to 47" LCD Displays, Medium, 125lbs Capacity

SKU: CHMSM1U

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Chief MSM1U Specifications

  • Compatibility

    26 to 47" LCD Displays

  • Certifications

    UL Listed

  • Lateral Shift

    12.9" / 32.77cm

  • Manual Height Adjustment

    1" / 2.54cm

  • Mounting Pattern Compatibility

    Universal Versions: 100 mm x 100 mm - 650 mm x 400 mm

  • Orientation

    Landscape

  • Solution Type

    Universal

  • Typical Screen Sizes

    26 - 47" / 66.04 - 119.38cm

  • Wall Stud Compatibility (inches)

    16 - 24" / 40.64 - 60.96cm

  • Weight Capacity

    125lbs / 56.70kg

  • Mount Type

    Fixed

  • Depth From Mounting Source

    2" / 5.08cm

  • Security Lock-Ready

    Padlock shackle for lock diameter =5/16" (7.9 mm)

  • Dimensions (H x W x D)

    Overall: 18.25 x 25.75 x 2" / 46.36 x 65.41 x 5.08cm

  • UPC Code

    841872163284

About Chief MSM1U

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security. Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution. For single stud applications, order the FCA1S Single Stud Adaptor Accessory.

Chief MSM1U Features

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • ControlZone Leveling for post-installation fine tuning of height and leveling
  • Centerless Shift provides up to 12.9" (327 mm) of post-installation lateral shift for limitless centering
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • ClickConnect offers an audible click when the screen safely engages
  • Built-in cable stand provides easy access under the screen
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps

What's in the box:

  • Chief Fusion Series MSM1U Micro-Adjust Fixed Wall Mount for 26 to 47 " LCD Displays
  • Mounting Hardware
  • Chief 10 Year Warranty
