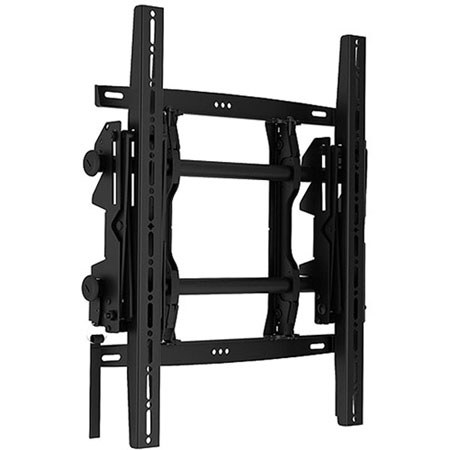

Chief MSMVPU Medium FUSION Micro-Adjustable Portrait Pull-Out Mount, 125 lbs Load Capacity

SKU: CHMSMVPU

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Chief MSMVPU Medium FUSION Micro-Adjustable Portrait Pull-Out Mount Specifications

  • Lateral Shift

    10" (254.mm)

  • Maximum Extension

    10.7" (271.8mm)

  • Minimum Depth

    3.7" (94.mm)

  • Mounting Pattern Compatibility

    100 x 100mm - 600 x 400mm (Universal Versions)

  • Orientation

    Portrait

  • Plumb Adjustment

    2.5 degrees

  • Post-Installation Leveling (Roll)

    Yes

  • Solution Type

    Universal

  • Typical Screen Sizes

    26 - 47" (66.04 - 119.38cm)

  • Wall Stud Compatibility

    16" / 40.64cm

  • Load Capacity

    125 lbs (56.7kg)

  • Dimensions (H x W x D)

    24.4" x 20.6" x 3.7" (620 x 523 x 94mm)

  • UPC Code

    841872147710

About Chief MSMVPU Medium FUSION Micro-Adjustable Portrait Pull-Out Mount

The Chief MSMVPU Medium FUSION Micro-Adjustable Portrait Pull-Out Mount is used for video walls and similar applications using screens from 26 - 47" in portrait orientation. The ClickConnect feature locks the flat panel firmly with an audible click, while the ControlZone leveling fine tunes the height and level of the screen. Thanks to the Centerless Shift feature, the screens on the wall can be positioned apart or together by lateral shift. Fine-tuning plumb adjustment ensures that the screens stand perfectly vertical even when the walls are not flat. A built-in cable stand in the pull-out mount eliminates cable slacks.

Chief MSMVPU Medium FUSION Micro-Adjustable Portrait Pull-Out Mount Features

  • Allows portrait screen orientation in video walls and recessed applications
  • ControlZone Leveling provides post-installation fine tuning of height and leveling for a seamless installation
  • Centerless Shift provides post-installation lateral shift to easily slide screens apart or together for easy maintenance and perfect alignment
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Allows fine-tuning plumb adjustment to ensure screens are perfectly vertical for a seamless install, can be used to compensate for walls that are not perfectly flat
  • Built-in cable stand provides easy access under the screen
  • Provides integrated security, just add a padlock
  • Can be used with a 2 x 2 video wall matrix or larger

Key Features

  • Allows portrait screen orientation in video walls and recessed applications
  • ClickConnect offers an audible click when the screen safely engages
  • Built-in cable stand provides easy access under the screen
  • Provides integrated security, just add a padlock
