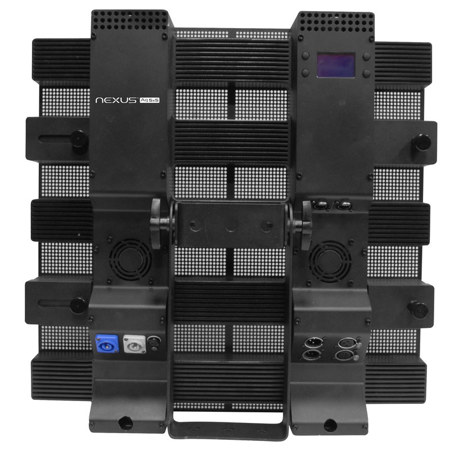

CHAUVET Nexus Aq 5x5 LED Panel with Road Case, 4 Pack
See all CHAUVET DJ items

CHAUVET DJ Nexus Aq 5x5 LED Panel with Road Case, 4/6/10/100/105 DMX Channels, 25 LEDs Light Source, 11350 lux Illuminance at 5m, 4 Pack

SKU: CHNEXUSQ5X5P

This item is no longer available.

Recommended Alternatives

CHAUVET DJ 4Play 2: Picture 1 regular
CHAUVET DJ 4Play 2 Portable RGBW LED Moonflower Effect Light
$346.65$259.99
CHAUVET DJ 6SPOT RGBW: Picture 1 regular
CHAUVET DJ 6SPOT RGBW Complete Pack-N-Go Lighting System
$506.67$379.99
CHAUVET DJ Abyss 2: Picture 1 regular
CHAUVET DJ Abyss 2 LED Effect Light
$373.34$279.99
CHAUVET DJ COLORado 1-Quad: Picture 1 regular
CHAUVET Professional COLORado 1-Quad 5W Quad-Color RGBW LED Wash Light, Black
$644.00
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

CHAUVET DJ Nexus Aq 5x5 Specifications

  • Control Protoco

    Art-Net, Kling-Net, DMX

  • DMX Channels

    4, 6, 10, 100 or 105

  • Art-Net Channels

    100

  • Package Quantity

    4 pack

  • Data Connectors

    Neutrik etherCON

  • Light Source

    25 LEDs (quad-color RGBW) 10 W, (2.6 A), 50,000 hours life expectancy

  • Built-in Automated Programs

    Yes

  • Pixels

    5 x 5

  • Pixel Pitch

    100 mm

  • Pixel Density

    100/m2

  • Strobe Rate

    0 to 20 Hz

  • Beam Angle

    8deg.

  • Field Angle

    13deg.

  • Illuminance (total)

    11, 350 lux at 5 m

  • Color Temperature

    Range: 2800 to 10000 K
    Full: 10650 K

  • IP Rating

    IP20, dry location

  • Cable Length

    5' (1.5 m)

  • Power Connection

    Edison plug to Neutrik powerCON

  • Power Input

    Neutrik powerCON

  • Power Output

    Neutrik powerCON

  • Power Linking

    5 units at 120 V; 8 units at 208 V; 9 units at 230 V

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    320 W, 2.66 A at 120 V, 60 Hz
    318 W, 1.52 A at 208 V, 60 Hz
    318 W, 1.38 A at 230 V, 50 Hz

  • Housing Material

    Aluminum alloy

  • Compatible Mounting Options

    Affinity Rig Kit (truss mounting) or M12 Bolt/Clamp (rear mounting/adjustable bracket)

  • Approvals

    CE, MET

  • Dimensions

    Single unit: 3.8 x 19.7 x 19.7" / 96.52 x 500.38 x 500.38mm
    Roadcase: 34 x 24 x 27" / 863.60 x 609.60 x 685.80mm

  • Weight

    Single unit: 22.2lbs / 10.07kg
    Roadcase: 184lbs / 83.46kg

  • UPC Code

    781462211219

About CHAUVET DJ Nexus Aq 5x5

A new addition to family of pixel mapping displays, The Nexus Aq 5x5 LED Panel (4 Pack) system is made for the stage and studio. A truly versatile LED system, Nexus Aq 5x5 projects narrow beams of light, provides full color mixing washes, makes instant audience blinders and displays impactful text and vivid animated graphics in full RGBW color. Nexus Aq 5x5's smooth dimming curve and mounting versatility make it a perfect application into live events, broadcast, studio, theatre and touring applications.

CHAUVET DJ Nexus Aq 5x5 Features

  • Stage blinder delivering great output due to 25 RGBW LEDs
  • Project narrow beams of light
  • Create impactful text and vivid animated graphics
  • Smooth dimming curve
  • Built-in power supply for easy use
  • Design with intuitive individual pixel-mapping options: Kling-Net, Art-Net, DMX
  • Flexible panel system with integrated locks and 0.5 x 0.5 m footprint optimal for larger arrays
  • Use universal power connectors: Neutrik powerCON, Neutrik etherCON, 3- and 5-pin XLR DMX connections
  • Built-in effects triggered by DMX
  • HSV, HSI, DMX control options

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Project narrow beams of light
  • Create impactful text and vivid animated graphics
  • Smooth dimming curve
  • Built-in power supply for easy use
  • Intuitive pixel-mapping options: Kling-Net, Art-Net, DMX
  • Use universal power connectors

What's in the box:

  • CHAUVET Nexus Aq 5x5 4x LED Panel with Road Case
  • PowerCON Power Cords
  • 8mm Allen Keys Control
  • CHAUVET 2 Year Limited Warranty
