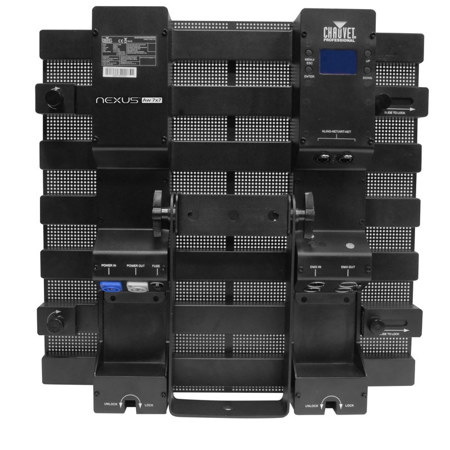

CHAUVET Nexus Aw 7x7 LED Panel with Road Case, 4 Pack
See all CHAUVET DJ items

CHAUVET DJ Nexus Aw 7x7 LED Panel with Road Case, 5/49 DMX Channels, 49 LEDs Light Source, 9400 lux Illuminance at 5m, 3 and 5-pin XLR Connector, 4 Pack

SKU: CHNEXUSW7X7P
Be the first to review this item

This item is no longer available.

Recommended Alternatives

CHAUVET DJ 6SPOT RGBW: Picture 1 regular
CHAUVET DJ 6SPOT RGBW Complete Pack-N-Go Lighting System
$506.67$379.99
CHAUVET DJ Abyss 2: Picture 1 regular
CHAUVET DJ Abyss 2 LED Effect Light
$373.34$279.99
CHAUVET DJ COLORado 1-Quad: Picture 1 regular
CHAUVET Professional COLORado 1-Quad 5W Quad-Color RGBW LED Wash Light, Black
$644.00
CHAUVET DJ COLORado 1QS: Picture 1 regular
CHAUVET Professional COLORado 1QS 3W Quad-Color RGBW LED Wash Light, Black
$724.00$645.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

CHAUVET DJ Nexus Aw 7x7 Specifications

  • Approvals

    CE, MET

  • Dimensions

    19.7 x 19.7 x 3.5" / 500.38 x 500.38 x 88.90mm (single unit)

  • Weight

    17.2lbs / 7.80kg (single unit)

  • Control Protocol

    Art-Net, Kling-Net, DMX

  • DMX Channels

    5 or 49

  • Package Quantity

    4 Pack

  • Art-Net Channels

    49

  • Data Connectors

    3- and 5-pin XLR, Neutrik etherCON

  • Light Source

    49 LEDs (warm white) 3 W, (700 mA), 50, 000 hours life expectancy

  • Built-in Automated Programs

    Yes

  • Pixels

    7 x 7

  • Pixel Pitch

    71 mm

  • Strobe Rate

    0 to 20 Hz

  • Beam Angle

    7deg.

  • Field Angle

    12deg.

  • Illuminance (total)

    9, 400 lux at 5 m

  • Color Temperature (full)

    2800 K

  • IP Rating

    IP20, dry location

  • Cable Length

    5' (1.5 m)

  • Power Connection

    Edison plug to Neutrik powerCON

  • Power Input

    Neutrik powerCON

  • Power Output

    Neutrik powerCON

  • Power Linking

    7 units at 120 V; 12 units at 208 V; 13 units at 230 V

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    173 W, 1.44 A at 120 V, 60 Hz
    171 W, 0.82 A at 208 V, 60 Hz
    176 W, 0.75 A at 230 V, 50 Hz

  • Housing Material

    Aluminum alloy

  • Compatible Mounting Options

    Affinity Rig Kit (truss mounting) or M12 Bolt/Clamp (rear mounting/adjustable bracket)

  • UPC Code

    781462211196

17 Accessories for CHAUVET DJ Nexus Aw 7x7 LED Panel with Road Case, 5/49 DMX Channels, 49 LEDs Light Source, 9400 lux Illuminance at 5m, 3 and 5-pin XLR Connector, 4 Pack

  • All Accessories (17)
  • Cables & Adapters (5)
  • DJ Mixers & Controllers & Acce (6)
  • Tripod and Stand Accessories (2)
  • Gaffer Tape (4)
Pig Hog 5' 3-Pin XLR DMX Lighting Cable
Pig Hog 5' 3-Pin XLR DMX Lighting Cable
$20.95
CHAUVET DJ 25' 3-Pin Male to 3-Pin Female DMX Cable
CHAUVET DJ 25' 3-Pin Male to 3-Pin Female DMX Cable
$22.95
Hosa Technology Hosa DMX 3 Pin Terminator
Hosa Technology Hosa DMX 3 Pin Terminator
$13.95
Adorama Pro-Gaff Gaffer Tape 1" x 55 Yards Black Single
Adorama Pro-Gaff Gaffer Tape 1" x 55 Yards Black Single
$12.90
Pig Hog 10' 3-Pin XLR DMX Lighting Cable
Pig Hog 10' 3-Pin XLR DMX Lighting Cable
$14.99
Pig Hog 25' 3-Pin XLR DMX Lighting Cable
Pig Hog 25' 3-Pin XLR DMX Lighting Cable
$23.69
CHAUVET DJ 5' 3-Pin Male to 3-Pin Female DMX Cable
CHAUVET DJ 5' 3-Pin Male to 3-Pin Female DMX Cable
$10.99
CHAUVET DJ Obey 70 Universal DMX Controller for Lighting Fixtures, 384 Channels
CHAUVET DJ Obey 70 Universal DMX Controller for Lighting Fixtures, 384 Channels
$229.99
CHAUVET DJ HFG High Performance Haze Juice Fluid Gallon
CHAUVET DJ HFG High Performance Haze Juice Fluid Gallon
$24.99
CHAUVET DJ Obey 3 DMX Controller for LED Lights, 3 Channels, 3-pin XLR Connector
CHAUVET DJ Obey 3 DMX Controller for LED Lights, 3 Channels, 3-pin XLR Connector
$89.99
CHAUVET DJ Obey 4 DMX Controller for LED Wash Lights, 16 Channels
CHAUVET DJ Obey 4 DMX Controller for LED Wash Lights, 16 Channels
$119.99
CHAUVET DJ Obey 40 DMX Controller for Lighting Fixtures, 192 Channels
CHAUVET DJ Obey 40 DMX Controller for Lighting Fixtures, 192 Channels
$199.99

About CHAUVET DJ Nexus Aw 7x7

The CHAUVET Nexus Aw 7x7 LED panel (4 pack) wall system is a truly versatile LED system that projects narrow beams of light, provides warm washes, makes instant audience blinders and displays impactful text and vivid animated graphics. Powerful Cree LEDs partnered with a flexible software system generate stunning pixel mapping effects. A smooth dimming curve with a 2800 K color temperature makes it perfect for live events, broadcast, studio, theatre and touring applications.

CHAUVET DJ Nexus Aw 7x7 Features

  • Stage blinder delivering great output due to 49 WW LEDs
  • Project narrow beams of light
  • Wash with a warm and rich 2800 K color temperature
  • Create impactful text and vivid animated graphics
  • Smooth dimming curve
  • Built-in power supply for easy use
  • Design with intuitive individual pixel-mapping options: Kling-Net, Art-Net, DMX
  • Flexible panel system with integrated locks and 0.5 x 0.5 m footprint optimal for larger arrays
  • Use universal power connectors: Neutrik powerCON, Neutrik etherCON, 3- and 5-pin connections
  • Built-in effects triggered by DMX

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Project narrow beams of light
  • Wash with a warm and rich 2800 K color temperature
  • Create impactful text and vivid animated graphics
  • Smooth dimming curve
  • Built-in power supply for easy use
  • Intuitive pixel-mapping options: Kling-Net, Art-Net, DMX

What's in the box:

  • CHAUVET Nexus Aw 7x7 4x LED Panel with Road Case
  • PowerCON Power Cords
  • 8mm Allen Keys Control
  • CHAUVET 2 Year Limited Warranty
