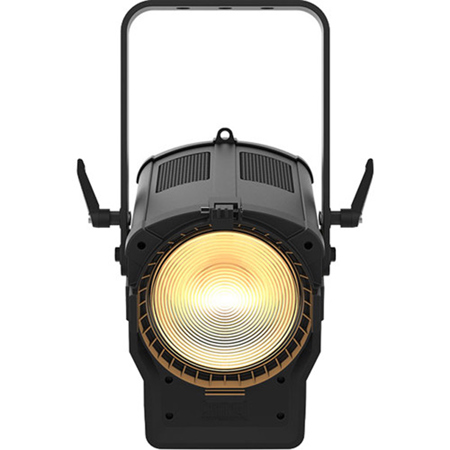

CHAUVET DJ Ovation F-145WW 70W Warm White LED Fresnel Light Fixture, Black

SKU: CHOF145WW MFR: OVATIONF145WW
Earn VIP Reward Points

Key Features

  • Achieve superior lighting with this 70W Warm White LED Fresnel spotlight fixture.
  • Enjoy precise control with motorized zoom, adjustable from 16° to 65° beam angle.
  • Create the perfect ambiance with electronic dimming and strobe effects from this LED light.
  • This Ovation F-145WW spotlight is ideal for theaters, studios, and events needing quality light.
  • Easily control your lighting setup using DMX or RDM protocols for advanced customization.
  • This durable aluminum alloy spotlight ensures longevity with a 50,000-hour LED lifespan.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

CHAUVET DJ Ovation F-145WW Specifications

Optical

Optical

Jump to...
  • Light Source

    1 LED (WW) 70 W, (3.6 A), 50,000 hours life expectancy

  • Color Temperature (at full)

    3096 K

  • CRI

    97

  • Beam Angle

    16 Degree to 48 Degree

  • Field Angle

    25 Degree to 65 Degree

  • Zoom Range

    16 Degree to 65 Degree

  • Lumens

    25 Degree : 2,787
    65 Degree : 4,266

  • Illuminance

    25 Degree : 1,290 lux @ 5 m
    65 Degree : 252 lux @ 5 m

  • Selectable PWM

    600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

Jump to...
  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Zoom

    Motorized

  • Strobe Rate

    0 to 30 Hz

  • Dim Modes

    4

Connections

Jump to...
  • Power Connection

    Edison (Local) plug to Neutrik powerCON

  • Power Input

    Neutrik powerCON

  • Power Output

    Neutrik powerCON

  • Data Connectors

    3- and 5-pin XLR

  • Cable Length

    Power: 5' (1.5m)

Control

Jump to...
  • Protocols

    DMX, RDM

  • DMX Channels

    1, 2, 2 or 5

  • Modes/Personalities

    4 personalities (1, 2, 2, 5)

Electrical

Jump to...
  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power Linking

    19 units @ 120 V; 34 units @ 208 V; 38 units @ 230 V

  • Power and Current

    84 W, 0.70 A @ 120 V, 60 Hz
    81 W, 0.40 A @ 208 V, 60 Hz
    81 W, 0.36 A @ 230 V, 50 Hz

Certifications/Qualifications

Jump to...
  • Certifications

    CE, MET, FCC

  • IP Rating

    IP20, dry location

  • Temperature (Ambient)

    -4 Degree F to 113 Degree F (-20 Degree C to 45 Degree C)

Construction/Physical

Jump to...
  • Color

    Exterior: Black

  • Material

    Aluminum alloy, Aluminum die-cast

  • Accessory Holder/Gel Frame Size

    6.25" (158.75mm)

  • Dimensions

    11.69 x 11.22 x 15.03" (297 x 285 x 382mm)

  • Weight

    11 lbs (5kg)

  • UPC Code

    781462218126

About CHAUVET DJ Ovation F-145WW

Find the perfect lighting solution with the Ovation F-145WW 70W Warm White LED Fresnel Light Fixture in Black. This high-quality, durable light fixture delivers a beautifully soft and flat field of warm white light, making it an ideal LED replacement for aging incandescent six-inch Fresnels.

Engineered with a high color rendering index (CRI), the Ovation F-145WW ensures accurate color reproduction, enhancing the visual appeal of your stage, event, or studio lighting. Its motorized zoom range of 16 to 65 degrees provides versatility, allowing you to adjust the beam angle to suit your specific lighting needs.

Designed for professional use, this efficient LED Fresnel light fixture operates virtually silently, making it an excellent choice for theatrical performances and studio applications where noise minimization is crucial. The Ovation F-145WW also features smooth 16-bit dimming control, offering precise light intensity adjustments for optimal lighting effects.

Experience the reliability and versatility of the Ovation F-145WW 70W Warm White LED Fresnel Light Fixture, a lighting solution that combines performance, durability, and aesthetic appeal.

CHAUVET DJ Ovation F-145WW Features

  • Warm white Fresnel with output comparable to a 6", 650 W Fresnel
  • Soft and even field of light
  • 16-bit dimming resolution for smooth fades
  • Virtually silent operation for use in any situation
  • Motorized zoom range between 16 Degree to 65 Degree , manually or via DMX

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Product Documents

User Manual

Key Features

  • Achieve superior lighting with this 70W Warm White LED Fresnel spotlight fixture.
  • Enjoy precise control with motorized zoom, adjustable from 16° to 65° beam angle.
  • Create the perfect ambiance with electronic dimming and strobe effects from this LED light.
  • This Ovation F-145WW spotlight is ideal for theaters, studios, and events needing quality light.
  • Easily control your lighting setup using DMX or RDM protocols for advanced customization.
  • This durable aluminum alloy spotlight ensures longevity with a 50,000-hour LED lifespan.

What's in the box:

  • CHAUVET Professional Ovation F-145WW 70W Warm White LED Fresnel Light Fixture (Black)
  • Neutrik powerCON Power cord
  • Gel Frame
  • CHAUVET Professional 2 Year Limited Warranty
