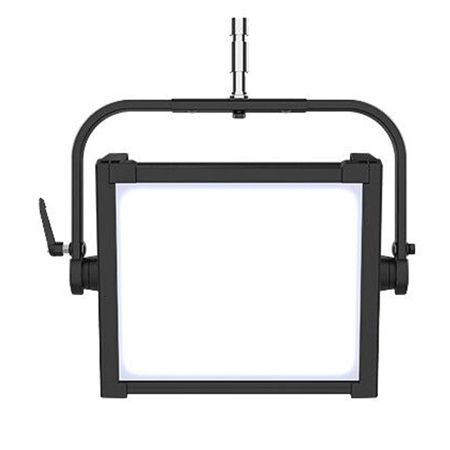

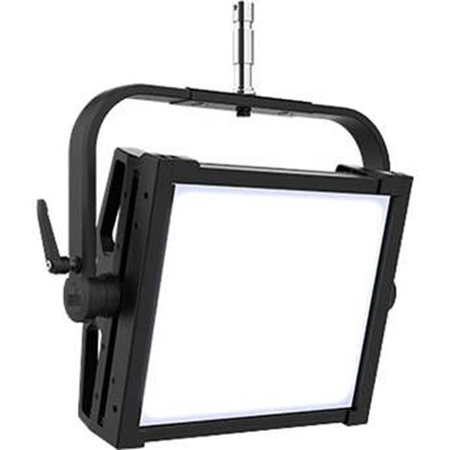

CHAUVET DJ onAir IP Panel 1 Full Spectrum 1x1 LED Soft Light, Black

SKU: CHONAIRP1IP MFR: ONAIRPANEL1IP
Earn VIP Reward Points

Key Features

  • Achieve superior lighting with the CHAUVET DJ onAir IP Panel, perfect for broadcast or film.
  • This full spectrum LED soft light offers adjustable color temperature from 2800 to 8000 K.
  • The IP65 rating makes this LED panel suitable for temporary outdoor shoots and events.
  • Control your lighting setup via Art-Net, sACN, DMX, CRMX, or RDM for ultimate flexibility.
  • Enjoy flicker-free operation with selectable PWM, ideal for video recording and streaming.
  • Create stunning visuals with built-in automated programs and color temperature presets.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

CHAUVET DJ onAir IP Panel 1 Specifications

General

General

Jump to...
  • Color

    Exterior: Black

Optical

Jump to...
  • Light Source

    224 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy.
    224 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy.

  • Color Temperature

    Range: 2800 to 8000 K
    Maximum 7566 K

  • CRI (3200 K)

    91.8

  • Beam Angle

    99.3 Degree

  • Field Angle

    154 Degree

  • Lumens

    10092

  • Illuminance

    165 lux @ 5m

  • Selectable PWM

    600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

Jump to...
  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Strobe Rate

    0 to 28 Hz

  • Standalone Color Mixing

    Yes

  • Color Temperature Presets

    Yes

  • Dim Modes

    4

  • Dim Curves

    4

  • Built-in Automated Programs

    Yes

Connections

Jump to...
  • Power Connection

    Edison (Local) plug to Seetronic Powerkon IP65

  • Power Input

    Seetronic Powerkon IP65
    28 VDC, 3-pin IP65 XLR

  • Power Output

    Seetronic Powerkon IP65

  • Data Connectors

    5-pin IP65 XLR, Seetronic etherCON Compatible

  • Cable Length

    Power: 5' (1.5m)

  • Software Connection

    USB

Control

Jump to...
  • Control Protocol

    Art-Net, sACN, DMX, CRMX, RDM

  • DMX Channels

    1, 3, 4, 5, 6, 8, 10, 11, 15, 16

  • Art-Net Channels

    1, 3, 4, 5, 6, 8, 10, 11, 15, 16

  • Modes/Personalities

    12 personalities (1, 3, 4, 5, 6, 8Ch1, 8Ch2, 10, 11, 15Ch1, 15Ch2, 16)

Electrical

Jump to...
  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power Linking

    7 units @ 100 V; 8 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V, 17 units @ 240 V

  • Power and Current

    184 W, 1.524 A @ 120 V, 60 Hz
    187 W, 0.891 A @ 208 V, 60 Hz
    180 W, 0.824 A @ 230 V, 50 Hz

Certifications

Jump to...
  • Certifications

    CE, MET, FCC

  • IP Rating

    IP65, temporary outdoor use, with pressure equalizing M12 GORE valve

  • Ambient Temperature

    -4 Degree to 113 Degree F (-20 Degree to 45 Degree C)

Construction/Physical

Jump to...
  • Housing Material

    Aluminum alloy

  • Dimensions

    22 x 5.74 x 21.81" (559 x 146 x 554mm)

  • Weight

    28 lbs (12.7kg)

  • UPC Code

    781462221393

About CHAUVET DJ onAir IP Panel 1

onAir Panel 1 IP is a rugged IP65, full-spectrum LED soft light with a 1 x1 format that is capable of facing all of the elements, outdoors or in. Ready to go on-location for any broadcast setting, onAir Panel 1 IP features a superior quality of white light with high CRI/ TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard control menu.

Easily switch mounting options from Jr Pin to Omega Bracket on a rugged build, designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs.

CHAUVET DJ onAir IP Panel 1 Features

  • Full-spectrum LED 1x1 format soft light panel style fixture for broadcast, film, and special events
  • IP65 rating for all weather use indoors or out
  • Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
  • Virtual color wheel with color matched to popular gel colors
  • +/- Green adjustment and emulated red-shift via DMX or on-board control
  • RDM (Remote Device Management) and CRMX Wireless Control for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio applications
  • Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme
  • Easily switch mounting options from Jr Pin to Omega Bracket
  • Drop-in slot for diffusers and intensifier filter (sold separately)
  • Rugged design for years of rough use in the most extreme conditions
  • Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller
  • USB port for fixture software updates
  • 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Achieve superior lighting with the CHAUVET DJ onAir IP Panel, perfect for broadcast or film.
  • This full spectrum LED soft light offers adjustable color temperature from 2800 to 8000 K.
  • The IP65 rating makes this LED panel suitable for temporary outdoor shoots and events.
  • Control your lighting setup via Art-Net, sACN, DMX, CRMX, or RDM for ultimate flexibility.
  • Enjoy flicker-free operation with selectable PWM, ideal for video recording and streaming.
  • Create stunning visuals with built-in automated programs and color temperature presets.

What's in the box:

  • CHAUVET Professional onAir IP Panel 1 Full Spectrum 1x1 LED Soft Light (Black)
  • Seetronic Powerkon IP65 Power Cord
  • Omega Bracket with Mounting Hardware
  • CHAUVET Professional 2 Year Limited Warranty
