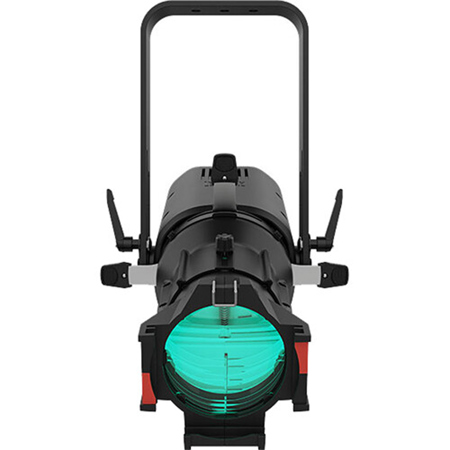

CHAUVET DJ Ovation Reve E-3 Multi-Colored LED Ellipsoidal Light with Black Housing

SKU: CHOREVEE3 MFR: OVATIONREVEE3
Earn VIP Reward Points

Key Features

  • Enhance your stage presence with the Ovation Reve E-3 LED ellipsoidal spotlight.
  • Achieve vibrant, custom colors with the RGBA mint LED mixing for stunning lighting effects.
  • Enjoy flicker-free operation, perfect for on-camera use in broadcast or streamed performances.
  • Use the included gobo holder to project custom patterns for unique visual displays at events.
  • Easily control the spotlight via DMX, RDM, or standalone modes for versatile operation.
  • This durable LED spotlight offers a long lifespan, reducing maintenance and replacement costs.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

CHAUVET DJ Ovation Reve E-3 Specifications

Optical

Optical

Jump to...
  • Light Source

    91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life expectancy

  • Color Temperature Range

    2800 to 8000 K

  • Color Temperature

    At Full: 5470K

  • CRI

    95.4

  • Beam Angle

    With 5 Degree lens: 4.6 Degree
    10 Degree lens: 10 Degree
    With 14 Degree lens: 14.8 Degree
    With 19 Degree lens: 18.5 Degree
    With 26 Degree lens: 26 Degree
    With 36 Degree lens: 33.3 Degree
    With 50 Degree lens: 49.5 Degree
    With 15 -30 Degree Narrow lens: 13 Degree
    With 15 -30 Degree Wide lens: 28.5 Degree
    With 25 -50 Degree Narrow lens: 23.6 Degree
    With 25 -50 Degree Wide lens: 40.5 Degree

  • Field Angle

    With 5 Degree lens: 5.6 Degree
    With 10 Degree lens: 11.1 Degree
    With 14 Degree lens: 16 Degree
    With 19 Degree lens: 21.6 Degree
    With 26 Degree lens: 29.6 Degree
    With 36 Degree lens: 37.1 Degree
    With 50 Degree lens: 55.7 Degree
    With 15 -30 Degree Narrow lens: 15.4 Degree
    With 15 -30 Degree Wide lens: 32.2 Degree
    With 25 -50 Degree Narrow lens: 25.8 Degree
    With 25 -50 Degree Wide lens: 44.1 Degree

  • Lumens

    With 5 Degree lens: 5,076
    With 10 Degree lens: 11,250 Degree
    With 14 Degree lens: 12,179
    With 19 Degree lens: 12,156
    With 26 Degree lens: 13,300
    With 36 Degree lens: 13,223
    With 50 Degree lens: 12,216
    With 15 -30 Degree lens: 12,057
    With 25 -50 Degree lens: 14,355

  • Illuminance

    With 5 Degree lens: 31,856 lux @ 5 m
    With 10 Degree lens: 18,924 lux @ 5 m
    With 14 Degree lens: 9,284 lux @ 5 m
    With 19 Degree lens: 5,635 lux @ 5 m
    With 26 Degree lens: 3,378 lux @ 5 m
    With 36 Degree lens: 2,085 lux @ 5 m
    With 50 Degree lens: 870 lux @ 5 m

  • Illuminance (Contd.)

    With 15 -30 Degree Narrow lens: 9,292 lux @ 5 m
    With 15 -30 Degree Wide lens: 2,671 lux @ 5 m
    With 25 -50 Degree Narrow lens: 3,710 lux @ 5 m
    With 25 -50 Degree Wide lens: 1,527 lux @ 5 m

  • Selectable PWM

    600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

Dynamic Effects

Jump to...
  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Focus

    Manual

  • Strobe Rate

    0 to 30 Hz

  • Standalone Color Mixing

    Yes

  • Color Temperature Presets

    Yes

  • Dim Modes

    4

  • Dim Curves

    4

  • Built-in Automated Programs

    Yes

Connections

Jump to...
  • Power Connection

    Edison (Local) plug to Seetronic Powerkon IP65

  • Power Input

    Seetronic Powerkon IP65

  • Power Output

    Seetronic Powerkon IP65

  • Data Connectors

    3- and 5-pin XLR

  • Cable Length

    Power: 5' (1.5m)

  • Software Connection

    USB

Control

Jump to...
  • Control Protocol

    DMX, RDM

  • DMX Channels

    1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV

  • Modes/Personalities

    9 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18, HSV)

Electrical

Jump to...
  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power Linking

    4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V

  • Power and Current

    367 W, 3.04 A @ 120 V, 60 Hz
    356 W, 1.76 A @ 208 V, 60 Hz
    353 W, 1.59 A @ 230 V, 50 Hz

Certifications/Qualifications

Jump to...
  • Certification

    CE, MET, FCC

  • IP Rating

    IP20, dry location

  • Temperature

    -4 to 113 Degree F (-20 to 45 Degree C)

Construction/Physical

Jump to...
  • Color

    Exterior: Black

  • Gobo Size (Optional)

    "A": 100mm (outside), 75mm (image), 2.5mm (max. thickness)
    "B": 86mm (outside), 64.5mm (image), 2.5mm (max. thickness)

  • Accessory Holder/Gel Frame Size

    5 Degree lens: 14" (356mm)
    10 Degree lens: 12" (304mm)
    14 Degree lens: 7.5" (191mm)
    19 Degree, 26 Degree, 36 Degree, and 50 Degree lens: 6.25" (159mm)
    15 Degree -30 Degree lens: 7.5" (191mm)
    25 Degree -50 Degree lens: 7.5" (191mm)

  • Dimensions

    Fixture, Yoke Up: 20.44 x 13.07 x 20.53" (519 x 332 x 522cm)
    With 5 Degree Lens, Yoke Up: 41.60 x 14.17 x 21.42" (1056 x 360 x 544cm)
    With 10 Degree Lens, Yoke Up: 32.87 x 13.07 x 20.01" (835 x 332 x 510cm)
    With 14 Degree Lens, Yoke Up: 29.7 x 13.07 x 20.53" (755 x 332 x 522cm)
    With 19, 26, 36, or 50 Degree Lens, Yoke Up: 26.83 x 13.07 x 20.53" (681 x 332 x 522cm)

  • Dimensions (Contd.)

    With 15 to 30 Degree Lens, Yoke Up: 33.02 x 13.52 x 20.53" (839 x 343 x 522cm)
    With 25 to 50 Degree Lens, Yoke Up: 25.74 x 13.52 x 20.53" (838 x 343 x 522cm)

  • Weight

    Fixture Only: 18.6 lbs (8.4kg)
    With 5 Degree Lens: 26 lbs (11.7kg)
    With 10 Degree Lens: 24 lbs (10.8kg)
    With 14 Degree Lens: 25.6 lbs (11.6kg)
    With 26 Degree Lens: 24.2 lbs (10.9kg)
    With 15 to 30 Degree Lens: 32.3 lbs (14.6kg)
    With 25 to 50 Degree Lens: 29.8 lbs (13.5kg)

  • UPC Code

    781462220778

About CHAUVET DJ Ovation Reve E-3

Take your stage lighting to the next level with the Ovation Reve E-3 Multi-Colored LED Ellipsoidal Light, a durable and high-quality lighting solution designed for the most demanding performance environments. This innovative and reliable fixture from Chauvet DJ is the epitome of versatility, offering an unparalleled fusion of vibrant multi-color illumination and tunable white light, all encased in a sleek black housing that complements any stage setup.

The Ovation Reve E-3 stands out in the market for its exceptional color mixing capabilities, allowing you to craft an endless spectrum of hues to set the perfect mood for any scene or event. With color temperature presets that range from a warm 2800K to a crisp 8000K, this LED ellipsoidal light maintains outstanding brightness and a superior quality of light. The emulated "red shift" feature expertly mimics the warm glow of traditional tungsten fixtures, adding depth and realism to your lighting design.

Designed for silent operation, the Ovation Reve E-3 is equipped with fan-off modes that ensure your performances are never interrupted by noise. Its advanced dimming curves provide smooth fades and an array of lighting intensities, giving you complete control over the ambiance of your production.

Technicians will appreciate the user-friendly features of the Ovation Reve E-3, including an innovative, adjustable yoke that facilitates easy mounting in tight spaces with low clearance. This feature not only saves time during setup but also enhances the flexibility of the lighting design.

Seamlessly transition from a broad range of saturated colors to precise whites with +/- green adjustments using a single fixture. The Ovation Reve E-3 is a storytelling powerhouse that redefines the capabilities of LED stage lighting, offering consistent, high-output performance that is simply unrivaled.

Whether you're illuminating a concert, theater production, or any live performance, the Ovation Reve E-3 Multi-Colored LED Ellipsoidal Light with Black Housing is the definitive choice for creating dynamic and impactful lighting experiences.

CHAUVET DJ Ovation Reve E-3 Features

  • Full-spectrum LED ERS-style lighting fixture for theatre, film and production
  • Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
  • Virtual color wheel with color matched to popular gel colors
  • +/- Green adjustment and emulated red-shift via DMX or on-board control
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio, film and theatre applications
  • Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme
  • Innovative adjustable yoke for mounting in low clearance areas
  • Direct power/data connection and control options for the Ovation GR-1 gobo rotator
  • USB port for fixture software updates

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Product Documents

User Manual

Key Features

  • Enhance your stage presence with the Ovation Reve E-3 LED ellipsoidal spotlight.
  • Achieve vibrant, custom colors with the RGBA mint LED mixing for stunning lighting effects.
  • Enjoy flicker-free operation, perfect for on-camera use in broadcast or streamed performances.
  • Use the included gobo holder to project custom patterns for unique visual displays at events.
  • Easily control the spotlight via DMX, RDM, or standalone modes for versatile operation.
  • This durable LED spotlight offers a long lifespan, reducing maintenance and replacement costs.

What's in the box:

  • CHAUVET Professional Ovation Reve E-3 Multi-Colored LED Ellipsoidal Light (Black)
  • Seetronic Powerkon Power Cord
  • Ovation Metal Gobo Holder
  • Soft Focus Filter
  • CHAUVET Professional 2 Year Limited Warranty
