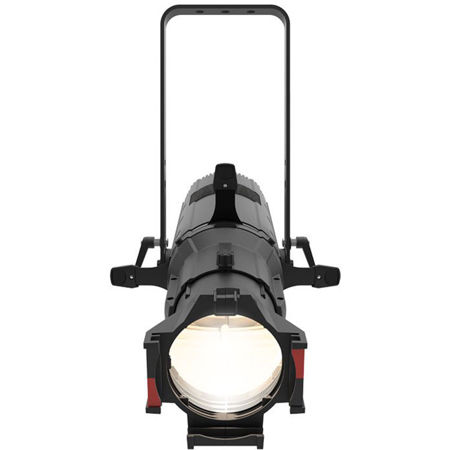

CHAUVET DJ Ovation E-930VW 3W White LED Ellipsoidal Fixture, No Lens Tube
See all CHAUVET DJ items

CHAUVET DJ Ovation E-930VW 3W Variable White LED Ellipsoidal Fixture with powerCON Power Cord, Light Engine Only, No Lens Tube

SKU: CHOVATE930VW

This item is no longer available.

Recommended Alternatives

CHAUVET DJ COLORdash Accent 3: Picture 1 regular
CHAUVET Professional COLORdash Accent 3 20W Quad-Color RGBA LED Wash Light,Black
$272.50
CHAUVET DJ EVE E-100Z: Picture 1 regular
CHAUVET DJ EVE E-100Z Spot Fixture
$1,480.00$1,109.99
CHAUVET DJ EVE E-50Z: Picture 1 regular
CHAUVET DJ EVE E-50Z 50W LED Ellipsoidal Light
$1,080.00$809.99
CHAUVET DJ EZBar: Picture 1 regular
CHAUVET DJ EZBar Battery-Powered Bar with 3 Independent Warm White Pin Spot
$306.67$229.99
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CHAUVET DJ Ovation E-930VW Specifications

Optical

Optical

Jump to...

  • Light Source

    91 LEDs (6 red, 15 orange-red, 9 green, 12 blue, 10 royal blue, 39 grass-lime) 3W, (960mA), 50,000 hours life expectancy

  • Color Temperature Range

    2800 to 8000K

  • CRI

    88-92

  • Beam Angle

    With 14 deg. Lens: 12 deg.
    With 19 deg. Lens: 17 deg.
    With 26 deg. Lens: 22 deg.
    With 36 deg. Lens: 27 deg.
    With 50 deg. Lens: 38 deg.

    With 15 deg. -30 deg. Lens (Narrow): 10 deg.
    With 15 deg. -30 deg. Lens (Wide): 22 deg.
    With 25 deg. -50 deg. Lens (Narrow): 20 deg.
    With 25 deg. -50 deg. Lens (Wide): 36 deg.

  • Field Angle

    With 14 deg. Lens: 14 deg.
    With 19 deg. Lens: 18 deg.
    With 26 deg. Lens: 25 deg.
    With 36 deg. Lens: 33 deg.
    With 50 deg. Lens: 50 deg.
    With 15 deg. -30 deg. Lens (Narrow): 14 deg.
    With 15 deg. -30 deg. Lens (Wide): 29 deg.
    With 25 deg. -50 deg. Lens (Narrow): 22 deg.
    With 25 deg. -50 deg. Lens (Wide): 39 deg.

  • Lumens

    With 14 deg. Lens: 4,399
    With 19 deg. Lens: 4,817
    With 26 deg. Lens: 5,485
    With 36 deg. Lens: 5,306
    With 50 deg. Lens: 5,037

  • Illuminance

    With 14 deg. Lens: 7,560 lux at 5m
    With 19 deg. Lens: 3,765 lux at 5m
    With 26 deg. Lens: 2,210 lux at 5m
    With 36 deg. Lens: 1,296 lux at 5m
    With 50 deg. Lens: 537 lux at 5m
    With 15 deg. -30 deg. Lens (Narrow): 6,990 lux at 5m
    With 15 deg. -30 deg. Lens (Wide): 1,815 lux at 5m
    With 25 deg. -50 deg. Lens (Narrow): 2,464 lux at 5m
    With 25 deg. -50 deg. Lens (Wide): 975 lux at 5m

  • PWM Frequency

    600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25,000Hz

Dynamic Effects

Jump to...

  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Strobe Rate

    0 to 28Hz

  • Focus

    Manual

  • Standalone Color Mixing

    Yes

  • Color Temperature Presets

    Yes

  • Dim Modes

    4

  • Built-in Automated Programs

    No

Connections

Jump to...

  • Power Connection

    Edison (Local) plug to Neutrik powerCON

  • Power Input

    Neutrik powerCON

  • Power Output

    Neutrik powerCON

  • Data Connectors

    3 and 5-pin XLR

  • Cable Length

    Power: 5' (1.52m)

Control

Jump to...

  • Control Protocol

    DMX, RDM

  • DMX Channels

    3, 5, 6, 8, 11, 15, 17

  • Modes/Personalities

    6 personalities (3, 5, 6, 8, 11, 15, 17)

Electrical

Jump to...

  • Input Voltage

    100 to 240 VAC, 50/60Hz (auto-ranging)

  • Power Linking

    5 units at 120V; 9 units at 208V; 10 units at 230V

  • Power and Current

    239W, 2A at 120V, 60Hz
    243W, 1.2A at 208V, 60Hz
    245W, 1A at 230V, 50Hz

Certifications / Qualifications

Jump to...

  • Certifications / Qualifications

    CE, MET
    IP Rating: IP20, dry location

General

Jump to...

  • Accessory Holder/Gel Frame Size

    14 deg. , 19 deg. , 26 deg. , 36 deg. and 50 deg. Lens: 6.25" (158.75mm)
    15 deg. -30 deg. Lens: 7.5" (190.50mm)
    25 deg. -50 deg. Lens: 7.5" (190.50mm)

  • Dimensions

    Fixture Only: 25.04 x 13.54 x 23.22" (636.02 x 343.92 x 589.79mm)
    With 26 deg. lens extended: 28.06 x 13.54 x 23.22" (712.73 x 343.92 x 589.79mm)
    With 15 deg. -30 deg. lens: 37 x 11.52 x 10.33" (939.80 x 292.61 x 262.38mm)
    With 25 deg. -50 deg. lens: 29.75 x 11.52 x 10.33" (755.65 x 292.61 x 262.38mm)

  • Weight

    Fixture Only: 16.6 lbs (7.53kg)
    With 14 deg. lens: 22 lbs (9.98kg)
    With 26 deg. lens: 20.6 lbs (9.34kg)
    With 15 deg. -30 deg. lens: 29.2 lbs (13.25kg)
    With 25 deg. -50 deg. lens: 26.2 lbs (11.88kg)

Other

Jump to...

  • UPC Code

    781462217594

About CHAUVET DJ Ovation E-930VW

Ovation E-930VW is a high-performance, variable white ellipsoidal style fixture that utilizes our unique 6-color LED system. This fixture projects a bright, beautifully flat field of light in nearly any temperature of white with high CRI and CQS. Each color temperature can be further adjusted for +/- green to perfect the field of light. For times when a splash of color is needed, the fixture can also give you full control of each color of LED as well.

CHAUVET DJ Ovation E-930VW Features

  • Variable white ERS-style lighting fixture for theatre, film and production
  • Color Temperature Presets from 2800 K to 8000 K with high CRI and CQS
  • Beautiful 16-bit dimming
  • Proprietary LED engine delivers tremendous, equal output at all color temperatures
  • +/- Green adjustment via DMX or on-board control
  • Independent color control over the 6-color engine when a splash of color is needed
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio and theatre applications
  • Works perfectly with industry standard lens tubes and accessories

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • CHAUVET DJ Ovation E-930VW Light Engine Only
  • Neutrik PowerCON Power Cord
  • Quick Reference Guide
  • CHAUVET DJ 1 Year Limited Warranty
