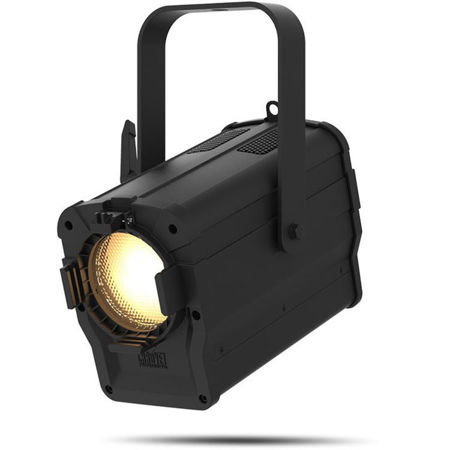

CHAUVET Professional Ovation F-55WW 36W Warm White LED Fresnel-Style Fixture
See all CHAUVET Professional items

CHAUVET Professional Ovation F-55WW 36W Warm White LED Fresnel-Style Fixture, 3200K Color Temperature

SKU: CHOVATF55WW
Be the first to review this item

This item is no longer available.

Recommended Alternatives

CHAUVET Professional Ovation FTD-55WW: Picture 1 regular
CHAUVET Professional Ovation FTD-55WW 36W Warm White LED Fresnel Fixture
$375.94$335.00
CHAUVET Professional LED Blinder: Picture 1 regular
CHAUVET Professional Strike 1 Single-Pod IP65 LED Blinder, Dimmable
$1,592.50$1,412.50
CHAUVET Professional Strike P38: Picture 1 regular
CHAUVET Professional Strike P38 90W LED Blinder / Strobe with IP65 Rating
$847.50$753.50
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CHAUVET Professional Ovation F-55WW Specifications

Optical

Optical

Jump to...

  • Light Source

    1 LED (WW) 36W, (740mA), 3200K, 50,000 hours life expectancy

  • Color Temperature Range

    3200K at full

  • CRI

    91

  • Beam Angle

    18 deg. to 56 deg.

  • Field Angle

    30 deg. to 69 deg.

  • Zoom Angle

    30 deg. to 69 deg.

  • Lumens

    At 30 deg. : 795
    At 69 deg. : 1920

  • Illuminance

    At 30 deg. : 279 lux at 5m
    At 69 deg. : 100 lux at 5m

Dynamic Effects

Jump to...

  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Zoom

    Manual

  • Strobe Rate

    0 to 30Hz

  • Standalone Color Mixing

    No

  • Color Temperature Presets

    No

  • Dim Modes

    4

  • Built-in Automated Programs

    No

  • Selectable PWM

    600Hz, 1200Hz, 2000Hz, 4000Hz, 6,000Hz, 25,000Hz

Connections

Jump to...

  • Power Connection

    Edison plug to hard-wired

  • Power Input

    Hard-wired

  • Data Connectors

    5-pin XLR

  • Cable Length

    Signal: 1.79' (0.55m)
    Power: 3.5' (1.07m)

Control

Jump to...

  • Control Protocol

    DMX

  • DMX Channels

    1, 2 or 5

  • Modes/Personalities

    3 personalities (1CH, 2CH, 5CH)

Electrical

Jump to...

  • Input Voltage

    100 to 240 VAC, 50/60Hz (auto-ranging)

  • Power and Current

    34W, 0.267A at 120V, 60Hz
    38W, 0.150A at 208V, 60Hz
    45W, 0.163A at 230V, 50Hz

Certifications / Qualifications

Jump to...

  • Certifications / Qualifications

    CE, MET
    IP Rating: IP20, dry location

General

Jump to...

  • Housing Material

    Aluminum die-cast

  • Accessory Holder/Gel Frame Size

    3.25" (82.55mm)

  • Dimensions

    10.87 x 6.81 x 6.53" (276.10 x 172.97 x 165.86mm)

  • Weight

    4.8 lbs (2.18kg)

Other

Jump to...

  • UPC Code

    781462217334

18 Accessories for CHAUVET Professional Ovation F-55WW 36W Warm White LED Fresnel-Style Fixture, 3200K Color Temperature

  • All Accessories (18)
  • Barndoors (1)
  • DJ Mixers & Controllers & Acce (2)
  • Gaffer Tape (4)
  • Clamps (2)
  • Mounts (1)
  • Filters & Gels (8)
Chauvet 3.25" Barndoor fits Ovation F55
Chauvet 3.25" Barndoor fits Ovation F55
$38.00
Recommended
CHAUVET DJ Stage Designer 50 24-Channel Dimming Console
CHAUVET DJ Stage Designer 50 24-Channel Dimming Console
$319.99
Adorama Pro-Gaff Gaffer Tape 1" x 55 Yards Black Single
Adorama Pro-Gaff Gaffer Tape 1" x 55 Yards Black Single
$12.90
Rosco Diffusion Filter Kit, 12 x 12" Sheets
Rosco Diffusion Filter Kit, 12 x 12" Sheets
$58.00
Rosco Photo Lighting Filter Kit, 12 x 12" Sheets
Rosco Photo Lighting Filter Kit, 12 x 12" Sheets
$70.00
Hosa Technology Hosa Five-Pin Male XLR DMX Terminator
Hosa Technology Hosa Five-Pin Male XLR DMX Terminator
$16.95
Pro Tapes Gaffer Tape 30 Yards x 2" Black
Pro Tapes Gaffer Tape 30 Yards x 2" Black
$17.65
Adorama Pro-Gaff Gaffer Tape 2" x 55 Yards Black Single
Adorama Pro-Gaff Gaffer Tape 2" x 55 Yards Black Single
$20.99
Pro Tapes Gaffer Tape 25 Yards x 2" White
Pro Tapes Gaffer Tape 25 Yards x 2" White
$19.95
CHAUVET DJ CLP-15N Aluminum Narrow Half Coupler Clamp for 2" Truss
CHAUVET DJ CLP-15N Aluminum Narrow Half Coupler Clamp for 2" Truss
$16.99
CHAUVET DJ CLP-10 ABS Plastic Pro Clamp w/360 Degree Wrap for 1", 1.5", 2" Truss
CHAUVET DJ CLP-10 ABS Plastic Pro Clamp w/360 Degree Wrap for 1", 1.5", 2" Truss
$11.99
Manfrotto M12 Spigot with 28mm Pin
Manfrotto M12 Spigot with 28mm Pin
$32.95

About CHAUVET Professional Ovation F-55WW

Ovation F-55WW is an efficient warm white LED (3") inkie Fresnel-style fixture ideal for short throw applications in television studios and theatres. It projects a bright, beautifully soft field of light within a 30 deg. - 69 deg. field angle controlled by a manual zoom.

CHAUVET Professional Ovation F-55WW Features

  • Compact warm white Fresnel for tight spaces and on-location lighting
  • Soft and even field of light
  • 16-bit dimming resolution for smooth fades
  • Virtually silent operation for use in any situation
  • Manually controlled variable zoom angle between 30 deg. to 69 deg.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

What's in the box:

  • CHAUVET Ovation F-55WW 36W Warm White LED Fresnel-Style Fixture
  • powerCON Power Cord
  • Gel Frame
  • Quick Reference Guide
  • CHAUVET 1 Year Limited Warranty
