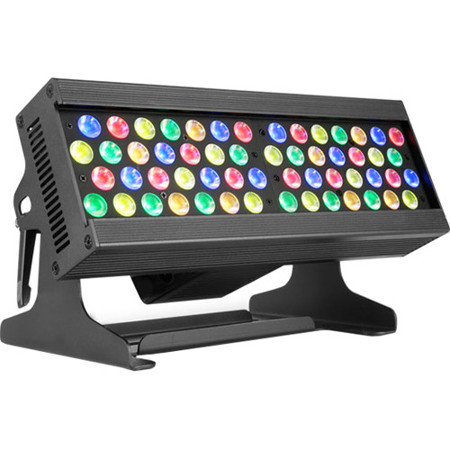

CHAUVET Professional Ovation B-565FC RGBA-L LED Batten-Style Light Fixture
CHAUVET Professional Ovation B-565FC Video #1
CHAUVET Professional Ovation B-565FC: Picture 1 thumbnail
See all CHAUVET Professional items

CHAUVET Professional Ovation B-565FC RGBA-L LED Batten-Style Light Fixture, 3-pin DMX, 5-pin DMX, ArtNet, sACN Control Protocol

SKU: CHOVB565FC

This item is no longer available.

Recommended Alternatives

CHAUVET Professional COLORado1: Picture 1 regular

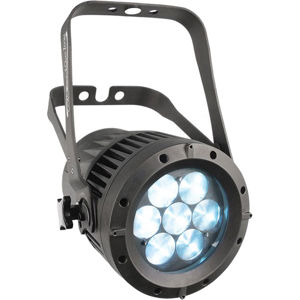

CHAUVET Professional COLORado1 Quad Zoom Indoor/Outdoor Variable-White Light
$902.26$899.00
CHAUVET Professional COLORado 1 Solo: Picture 1 regular
CHAUVET Professional COLORado 1 Solo RGBW LED Wash Light
$856.00
CHAUVET Professional COLORado 2 Quad Zoom: Picture 1 regular
CHAUVET Professional COLORado 2 Quad Zoom RGBW LED Wash Light
$1,498.00

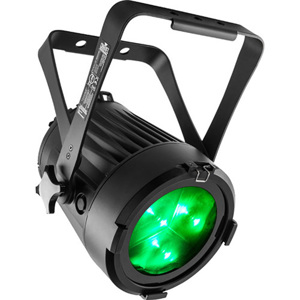

CHAUVET Professional COLORado 2 Solo: Picture 1 regular
CHAUVET Professional COLORado 2 Solo Quad-Color RGBW LED Wash Light
$1,230.50
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

CHAUVET Professional Ovation B-565FC Specifications

  • Light Source

    56 LEDs (12 red, 12 green, 12 blue, 8 amber, 12 lime) 3 W, (650 mA), 50,000 hours life expectancy

  • Color Temperature (range)

    2800 K to 6500 K

  • Installed Optics

    20deg.

  • Beam Angle (horizontal)

    19deg.

  • Beam Angle (vertical)

    20deg.

  • Beam Angle (horizontal with filter)

    36deg.

  • Beam Angle (vertical with filter)

    20deg.

  • Field Angle (horizontal)

    37deg.

  • Field Angle (vertical)

    37deg.

  • Field Angle (horizontal with filter)

    66deg.

  • Field Angle (vertical with filter)

    40deg.

  • Illuminance

    1,637 lux at 5 m

  • Illuminance (with filter)

    470deg. at 5 m

  • Selectable PWM

    600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Strobe Rate

    0 to 30 Hz

  • Standalone Color Mixing

    Yes

  • Color Temperature Presets

    Yes

  • Dim Modes

    4

  • Built-in Automated Programs

    Yes

  • Housing Material

    Aluminum die-cast

  • Accessory Holder/Gel Frame Size

    13.86 x 3.66 in (352 x 93 mm)

  • Power Connection

    Edison (Local) plug to Neutrik powerCON

  • Power Input

    Neutrik powerCON

  • Power Output

    Neutrik powerCON

  • Data Connectors

    3- and 5-pin XLR, Amphenol etherCON Compatible

  • Cable Length (power)

    5' (1.52m)

  • Protocol(s)

    Art-Net, DMX, RDM, sACN

  • DMX Channels

    6, 8, 10, 15, 17, 19, 20, 31

  • Art-Net Channels

    6, 8, 10, 15, 17, 19, 20, 31

  • Modes/Personalities

    16 personalities

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power Linking

    13 units at 120 V; 22 units at 208 V; 23 units at 230 V

  • Power and Current

    125 W, 1.04 A at 120 V, 60 Hz
    120 W, 0.61 A at 208 V, 60 Hz
    119 W, 0.51 A at 230 V, 50 Hz

  • Certifications / Qualifications

    CE, MET
    IP Rating: IP20, dry location

  • Dimensions

    13.9 x 7.48 x 8.14" (353.06 x 189.99 x 206.76mm)

  • Weight

    11.6lbs (5.26kg)

  • UPC Code

    781462215842

About CHAUVET Professional Ovation B-565FC

Ovation B-565FC boasts groundbreaking features such as an RGBA-Lime color system and the incorporation of RDM, Art-Net and sACN plus standard DMX for programming and networking options. This little powerhouse not only makes a great batten-style light, but is also a tremendous standard wash. A holographic filter is included and locks into place so the fixture can be used in any orientation with no worry about the filter sliding out.

CHAUVET Professional Ovation B-565FC Features

  • Full Color LED (RGBAL) batten fixture for theatre, film and production
  • Theatre-ready with 16-bit dimming of master dimmer and individual colors
  • Multiple control personalities with one or two sections of control
  • Included holographic filter locks in place for ultra-smooth color mixing with a more elliptical wash pattern
  • Virtual Color wheel with color matched to popular Rosco Gel colors
  • Art-Net, sACN, 3- and 5-pin DMX and RDM (Remote Device Management) for added control flexibility
  • Neutrik powerCON and Amphenol etherCON compatible connections for power and data linking
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Nearly silent operation for use in studio and theatre applications

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • CHAUVET Ovation B-565FC RGBA-L LED Batten-Style Light Fixture
  • Neutrik PowerCON Power Cord
  • Wall Washing Filter
  • Quick Reference Guide
  • CHAUVET 2 Year Limited Warranty
