CHAUVET DJ Ovation E-910FC Specifications

  • Light Source

    91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3W, (1.4A), 5850K, 50,000 hours life expectancy

  • Color Temperature (At Full)

    5850K

  • Beam Angle (With 36deg. Lens)

    28 deg.

  • Field Angle (With 36deg. Lens)

    34 deg.

  • Lumens (With 36deg. Lens)

    3,918

  • Illuminance (With 36deg. Lens)

    1,137 lux at 5m

  • Dimming Modes

    9

  • Selectable PWM

    600Hz, 1200Hz, 2000Hz, 4000Hz, 25000Hz

  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Focus

    Manual

  • Strobe Rate

    0 to 28Hz

  • Color Temperature Presets

    Yes

  • Built-in Automated Programs

    Yes

  • Power Connection

    Edison (Local) plug to Neutrik powerCON

  • Power Output

    Neutrik powerCON

  • Power Input

    Neutrik powerCON

  • Data Connectors

    5-pin XLR

  • Cable Length (Power)

    5' (1.52m)

  • Protocols

    DMX, RDM

  • DMX Channels

    3, 5, 7, 10, 12, 13 or 15

  • Modes/Personalities

    7 personalities (3, 5, 7, 10, 12, 13, 15)

  • Input Voltage

    100-240VAC, 50/60Hz (auto-ranging)

  • Power Linking

    6 units at 120V
    11units at 208V
    12 units at 230V

  • Power and Current

    240W, 2.006A at 120V, 60Hz
    234W, 1.160A at 208V, 60Hz
    234W, 1.074A at 230V, 50Hz

  • Certifications / Qualifications

    CE, MET
    IP Rating: IP20, dry location

  • Gel Frame Size

    6.25" (15.88cm)

  • Dimensions

    Fixture Only: 19.49 x 11.22 x 19.17" (495.05 x 284.99 x 486.92mm)

  • Weight

    Fixture Only: 15.4lbs (6.99kg)

6 Accessories for CHAUVET DJ Ovation E-910FC RGBA-Lime Color-Mixing Ellipsoidal Light, Includes 36deg. HD Lens Tube, Gel Frame, Neutrik powerCON Power Cord, White

  • All Accessories (6)
  • Cables & Adapters (1)
  • DJ Mixers & Controllers & Acce (2)
  • Gaffer Tape (3)

About CHAUVET DJ Ovation E-910FC

Ovation E-910FC is a high-performance ERS-style fixture with full RGBA-Lime color mixing and color temperature presets of 2800 to 6500K that match the output of a tungsten source to perfection. Control options include full 16-bit dimming (per color and master), selectable PWM, RDM and on-board dimming curve selection. Also accessible is their Virtual Color Wheel which matches popular gel colors.

CHAUVET DJ Ovation E-910FC Features

  • Full Color LED (RGBAL) ERS-style lighting fixture for theatre, film and production
  • Ultra smooth 16-bit dimming of master dimmer and individual colors
  • Flat, even field of light with superior color mixing
  • Virtual Color wheel with color matched to popular Rosco Gel colors
  • Color Temperature Presets from 2800K to 6500K with high CRI & CQS
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio and theatre applications
  • Works perfectly with industry standard lens tubes and accessories

What's in the box:

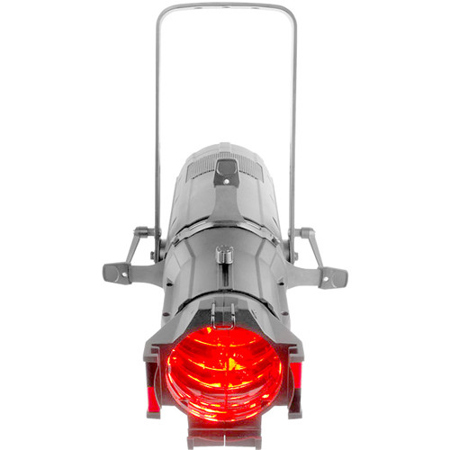

  • CHAUVET Ovation E-910FC Color-Mixing Ellipsoidal Light
  • 36deg. HD Lens Tube
  • Gel Frame
  • Neutrik powerCON Power Cord
  • Quick Reference Guide
  • CHAUVET 2 Year Limited Warranty
