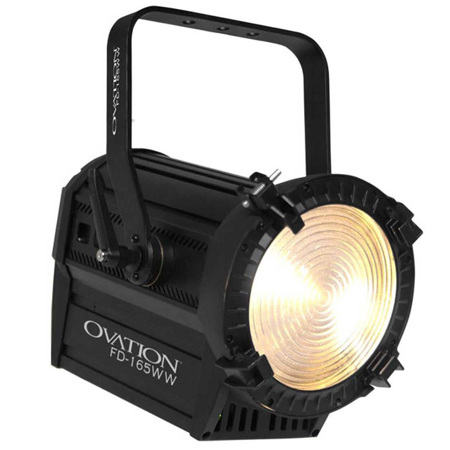

CHAUVET Professional Ovation FD-165WW LED Fresnel
See all CHAUVET Professional items

CHAUVET Professional Ovation FD-165WW LED Fresnel

SKU: CHOVTNFD165W
Be the first to review this item

This item is no longer available.

Recommended Alternatives

CHAUVET Professional COLORado1: Picture 1 regular
CHAUVET Professional COLORado1 Quad Zoom Indoor/Outdoor Variable-White Light
$1,013.50$899.00
CHAUVET Professional COLORado 2 Solo: Picture 1 regular
CHAUVET Professional COLORado 2 Solo Quad-Color RGBW LED Wash Light
$1,388.00$1,230.50
CHAUVET Professional COLORado Batten 72X: Picture 1 regular
CHAUVET Professional COLORado Batten 72X IP65 LED Wash Light, 3200 to 10000K
$1,581.50$1,403.00
CHAUVET Professional COLORado Panel Q40: Picture 1 regular
CHAUVET Professional COLORado Panel Q40 15W Rectangular Wash Light
$3,299.00$2,925.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the Ovation FD-165WW LED Fresnel stand out from other LED lights?

The Ovation FD-165WW LED Fresnel is unique due to its advanced data and power sensors. These allow it to operate on both dimming power systems and constant power rigs, providing versatility that's not common in other LED lights. Additionally, it features a proprietary motorized zoom, easily controlled by a rotary knob.

Does the Ovation FD-165WW LED Fresnel require a separate dimming system?

No, the Ovation FD-165WW LED Fresnel does not require a costly investment in separate dimming systems. It's equipped to function seamlessly on both dimming power systems and constant power rigs.

What kind of light output does the Ovation FD-165WW LED Fresnel provide?

The Ovation FD-165WW LED Fresnel provides a smooth, even field of light. It also features exceptional dimming capabilities, making it ideal for a variety of lighting needs.

Who can benefit from using the Ovation FD-165WW LED Fresnel?

The Ovation FD-165WW LED Fresnel is designed to meet the needs of a wide range of users. Whether you're a professional photographer, videographer, or a lighting enthusiast, this LED Fresnel can provide the high-quality, versatile lighting you need.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CHAUVET Professional FD-165WW LED Fresnel Specifications

  • Light Source

    16 LEDs (WW) 10 W, (2.8 A), 100,000 hours life expectancy

  • Color Temperature (at full)

    3184 K

  • Beam Angle

    14 Degree to 55 Degree

  • Field Angle

    25 Degree to 76 Degree

  • Zoom Angle

    25 Degree to 76 Degree

  • Lumens

    25 Degree : 2,661
    76 Degree : 6,481

  • Illuminance

    25 Degree : 1,860 lux at 5m
    76 Degree : 285 lux at 5m

  • PWM Frequency

    600 Hz

  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Focus

    Electronic

  • Zoom

    Motorized

  • Strobe Rate

    0 to 20 Hz

  • Dim Modes

    5

  • Dim Curves

    4

  • Exterior Color

    Black

  • Accessory Holder/Gel Frame Size

    7.5" (191mm) accessories

  • Power Connection

    Local plug to Neutrik powerCON

  • Power Input/Output

    Neutrik powerCON

  • Data Connectors

    3- and 5-pin XLR

  • Control Protocol

    DMX

  • DMX Channels

    1, 2 or 5

  • Modes/Personalities

    3 personalities (UNO, DOS, STD.P)

  • Input Voltage

    120/230 VAC, 50/60 Hz (switchable)

  • Power Linking

    5 units at 120; 10 units at 230 V

  • Power and Current

    170 W, 1.41 A at 120 V, 60 Hz
    166 W, 0.78 A at 230 V, 50 Hz

  • Certifications

    CE, MET

  • IP Rating

    IP20, dry location

  • Optional Accessories

    Professional Clamps: CTC-50HC, CTC-50HCN
    Neutrik powerCON cables
    3-pin or 5-pin DMX Cables
    Color Blending Filters: DF60X1D, DF20DOvation F 7.5" Barndoor

  • Cable Length (power)

    5' (1.5m)

  • Weight

    14.6lb (6.6kg)

  • Dimensions

    11.18 x 16.4 x 10.3" (284 x 417 x 261mm)

About CHAUVET Professional FD-165WW LED Fresnel

Let the Ovation FD-165WW LED Fresnel light up your world with its advanced technology and versatile features. This high-performance Fresnel wash is equipped with innovative data and power sensors, enabling it to operate seamlessly on both dimming power systems and constant power rigs.

Unlike other LED lights, the Ovation FD-165WW doesn't require a costly investment in dimming systems, making it an accessible choice for operators looking to transition to LED lighting. Its proprietary motorized zoom function remains fully operational even when the fixture is used on a dimming system, easily controlled by a rotary knob located on the back of the fixture.

Retaining the exceptional dimming capabilities and smooth, even field of light that made the original Ovation F-165WW a popular choice, the FD-165WW takes it a step further. It offers the same high-quality performance, but with added versatility and convenience.

Whether you're a professional photographer, videographer, or a lighting enthusiast, the Ovation FD-165WW LED Fresnel is designed to meet your lighting needs while offering superior energy efficiency and longevity that only LED technology can provide.

CHAUVET Professional FD-165WW LED Fresnel Features

  • Works perfectly on conventional dimmers or constant power with DMX
  • Auto-senses what kind of system (dimmers or constant power with DMX) and responds appropriately
  • Superior low end dimming regardless of power supplied (conventional dimmer/constant power with DMX)
  • Perfect fixture for the retrofit market, utilizes existing infrastructure flawlessly
  • Motorized zoom feature available in Dimmer, SENS or DMX modes
  • 16-bit dimming resolution (DMX mode) for smooth fades
  • Flat, even field of light
  • Virtually silent operation for use in any situation
  • Simple and complex DMX channel profiles for programming versatility
  • Warm white Fresnel-style lighting fixture
  • Motorized zoom angle between 25 Degree to 76 Degree, manually or via DMX

Warranty Information

This product has a limited warranty of 12 months for parts and 24 months for labor.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-performance Fresnel wash with advanced LED technology
  • Equipped with innovative data and power sensors for versatile usage
  • Operates seamlessly on both dimming power systems and constant power rigs
  • Features a proprietary motorized zoom, easily controlled by a rotary knob
  • Exceptional dimming capabilities and smooth, even field of light
  • Energy-efficient and long-lasting lighting solution for professionals and enthusiasts

What's in the box:

  • CHAUVET Professional Ovation FD-165WW LED Fresnel
  • Neutrik PowerCON Power Cord
  • Gel Frame (7.5 "/191mm accessories)
  • Quick Reference Guide
  • Safety Wire
  • CHAUVET Professional 1 Year Limited Warranty
