Chief PDR2000 Large Flat Panel Swing Arm Wall Mount, 37" Extension without Interface, Black

SKU: CHPDR2000B

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Is there any horizontal adjustment? My 60 inch screen is not level, but I have a lot of play. I can lift my screen up by hand. It's about a inch out. I have the chief 2000 PWR built 3/8/06. Weight capacity is 125 pounds. I changed tv's. The old one was level.
Shopper : The screws don't line up with the TV. Is there something that connects to the TV?
Mike F : Listing says "without interface" what does that mean? What's an interface?

Reviews about this item

Review Summary

Chief PDR2000 Specifications

  • Certifications

    UL Listed

  • Lateral Shift

    9" (228.6mm)

  • Manual Height Adjustment

    1" (25.4 mm)

  • Maximum Extension

    37" (939.8mm)

  • Minimum Depth

    3.4" (86.4mm)

  • Mounting Pattern Compatibility

    200 x 200mm - 862 x 517mm (Universal Versions)

  • Orientation

    Landscape, Portrait

  • Post-Installation Leveling (Roll)

    Yes

  • Solution Type

    Universal

  • Tilt

    + 5deg., - 15deg.

  • Typical Screen Sizes

    42 - 71" (1066.8 - 1803.4 mm)

  • Wall Stud Compatibility

    16" (406.4 mm)

  • Load Capacity

    200 lbs (90.7kg)

  • Dimensions (H x W x D)

    22 x 39.5 x 3.4" (558.8 x 1003.3 x 86.36 mm)

  • UPC Code

    841872045368

About Chief PDR2000

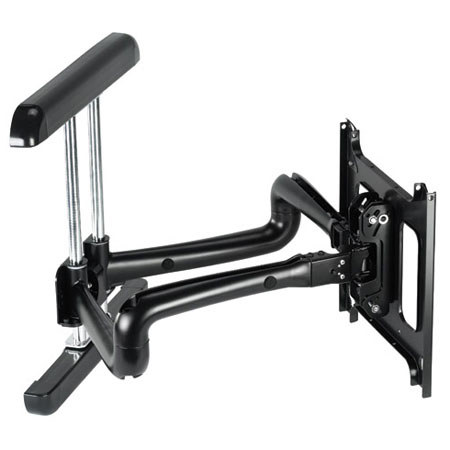

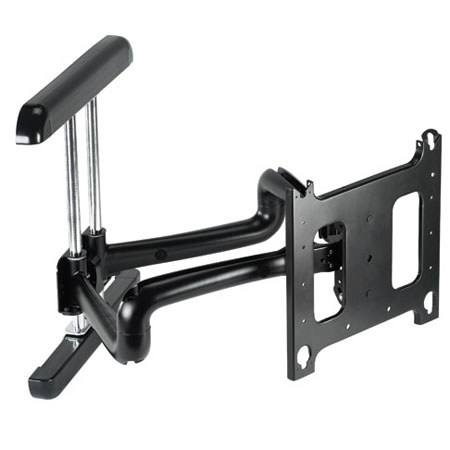

View large flat panel displays up to 71" or 200 lbs. from any angle with the Chief PDR2000 Dual Swing-Arm Wall Mount (Black). This custom mounting solution swings out and extends up to 37" from the wall, collapsing to only 2-7/8" when in home position. The PDR2000 is wall-mounted, rugged, versatile and installer-friendly. It has vertical, lateral and rotational tilt tension adjustments. Flat panel screens can be mounted in either the landscape or portrait position.

The PDR2000 is designed for fast installation. After drawing the plumb line and installing the two top lag bolts into the dual wall studs, the installer hangs the mount on its top bracket and installs two lag bolts in the bottom bracket. Next, the installer makes the height adjustment, installs the plasma screen and routes the power/audio/video cables down the built-in path in the swing-out arms, completing the installation process.

Chief PDR2000 Features

  • Centris Technology tilt mechanism adjusts to provide fingertip tilt with most flat panels
  • Post-installation height adjustment up to 1" (25 mm) for ultimate installation flexibility
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Extends 37" (93.98 cm) for viewing from any angle and remains low-profile in home position
  • CableTrac System provides built-in cable management channels inside the arms for a clean installation
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)

Key Features

  • Centris Technology tilt mechanism adjusts to provide fingertip tilt
  • Q-Latch Mounting System secures flat panel to mount

What's in the box:

  • Chief PDR2000 Large Flat Panel Swing Arm Wall Mount
  • 2 x Cover Plates
  • 4 x End Caps
  • 12 x Tie-Wraps
  • 4 x Lag Bolts / 5/16 " x 2.5 "
  • 4 x Flat Washers / 5/16 "
  • Wrench/Adjustment
  • Bar/Adjustment
  • Chief Warranty
